iDirect/ST Engineering SMB3310 Satellite Modem Board
iDirect/ST Engineering SMB3310 Satellite Modem Board
SKU:
Contact VSATplus for pricing, availability, and lead time.
Request QuoteCouldn't load pickup availability

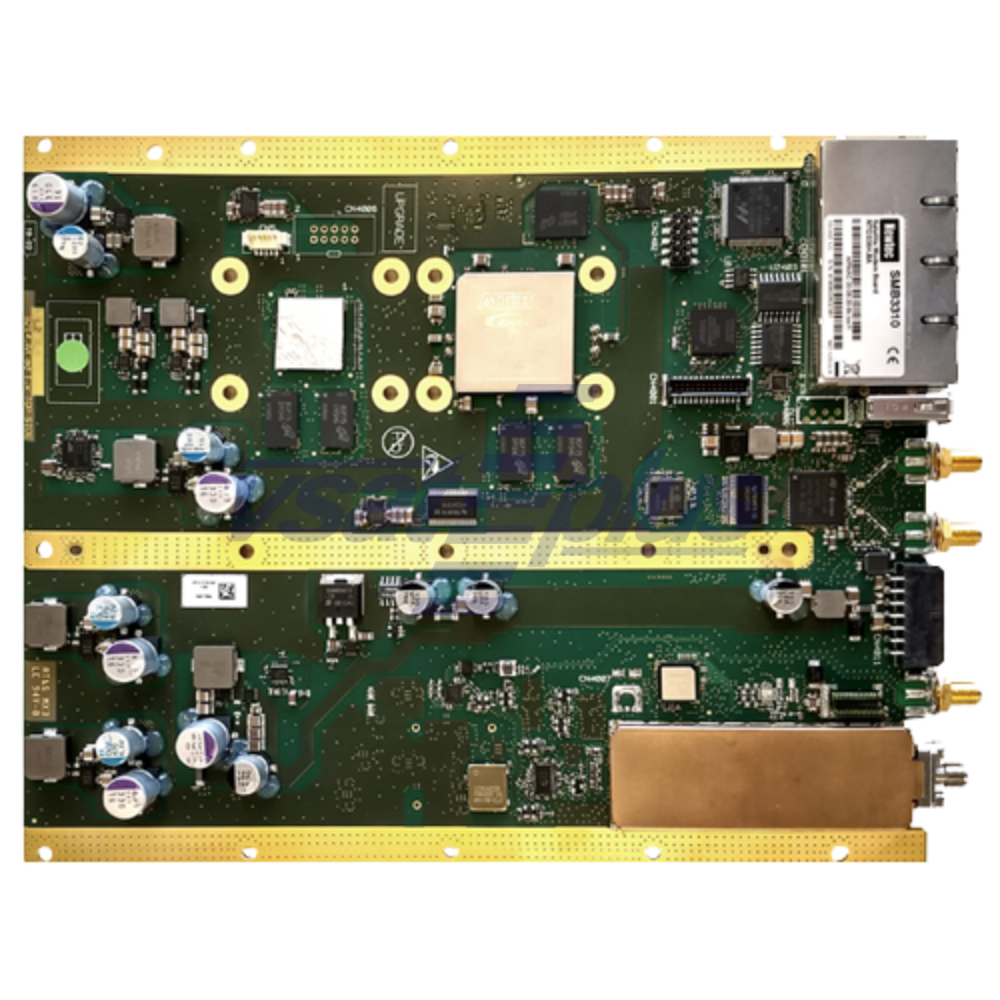

The SMB3310 Satellite Modem Board is suitable for integration into highly compact COTM terminals for the government and defense, broadcast and mobility markets. It offers unprecedented performance in a modem board, supports a broad array of mobility capabilities and is fully equipped to operate on HTS spot beams satellites.
The SMB3310 is also available in a desktop form factor, the MDM3310.
-
DVB-S2 (up to 45Msps) / DVB-S2X (up to 500 Msps) outbound
-
Supports DVB-S2X MODCODS up to 64APSK
-
Return max rates up to 40 Msps (SCPC), 20 Msps (MxDMA)
-
Ideal for both fixed and mobility applications with throughput rates up to 100/25 Mbps
-
OpenAMIP and GXT file support for mobilitySecurity features with 256-bit AES Link Encryption
-
Embedded TCP acceleration, GTP acceleration and header compression
Network Configuration
|
Network Topology |
Rx |
Tx |
| DVB-S2/DVB-S2X | MF-TDMA | Mx-DMA | SCPC | |
| Modulation | QPSK, 8PSK, 16APSK, 32APSK, 64APSK | 4CPM | QPSK, 8PSK 16APSK, 32APSK | QPSK, 8PSK, 16APSK, 32APSK, 64APSK |
| Symbol Rates | 1 Msps to 500 Msps | Up to 7.6 Msps | 32 ksps to 20 Msps | 1 Msps to 64 Msps |
Modem Interfaces
Tx Interface
| Connector | SMA 50 Ohm |
| Frequency range | 950-2400 MHz |
| TX level | -55 dBm to +5 dBm |
| BUC power supply | 24VDC, 3.8A |
| BUC reference | 10 MHz |
Rx Interface
| Connector | SMA 50 Ohm |
| Frequency | 950-2150 MHz |
| LNB power supply | 13/18VDC 500mA |
| LNB band selection | 13/18V or 22kHz tone, programmable |
| LNB polarization selection 1 | 13/18 or 22 kHz tone, programmable |
Data Interface
| LAN: Four 10/100/1000 Mbps Ethernet, auto MDI/MDIX |
| RJ45 console port |
Development Kit
| CAD drawings |
| Thermal design guidelines |
| Mechanical design guidelines |
| Electrical interface specification |
| API description |
Management
Protocols Supported
| UDP, IPv4&IPv6, ICMP, TCP, IGMPv1, IGMPv2, ARP, DHCP, DNS, NTP, BGP, NAT, Diffserv Marking |
Multilingual Web GUI
| Manage web GUI via configurable management IP address |
Mechanical and Environmental
| Housing | W 18.29 cm x D 23.62cm x H 2.18 cm (W 7.2 in x D 9.3 in x H 0.86 in) |
| Weight | 0.4 kg (0.88 lbs) |
| Temperature: |
| Operating | -25° to +55°C (-13° to +131°F) (subject to adequate heatsinking) |
| Storage | -40° to +60°C (-40° to +140°F) |
| Humidity |
| Operating | 5 - 95% non-condensing |
Power Supply
| Input Voltage | 24 VDC |
| Power Consumption | <30W |
Compatibility & quotations
Compatibility & quotations
Contact our team with your required frequency band, power rating, quantity and delivery destination. Discuss your requirements.
