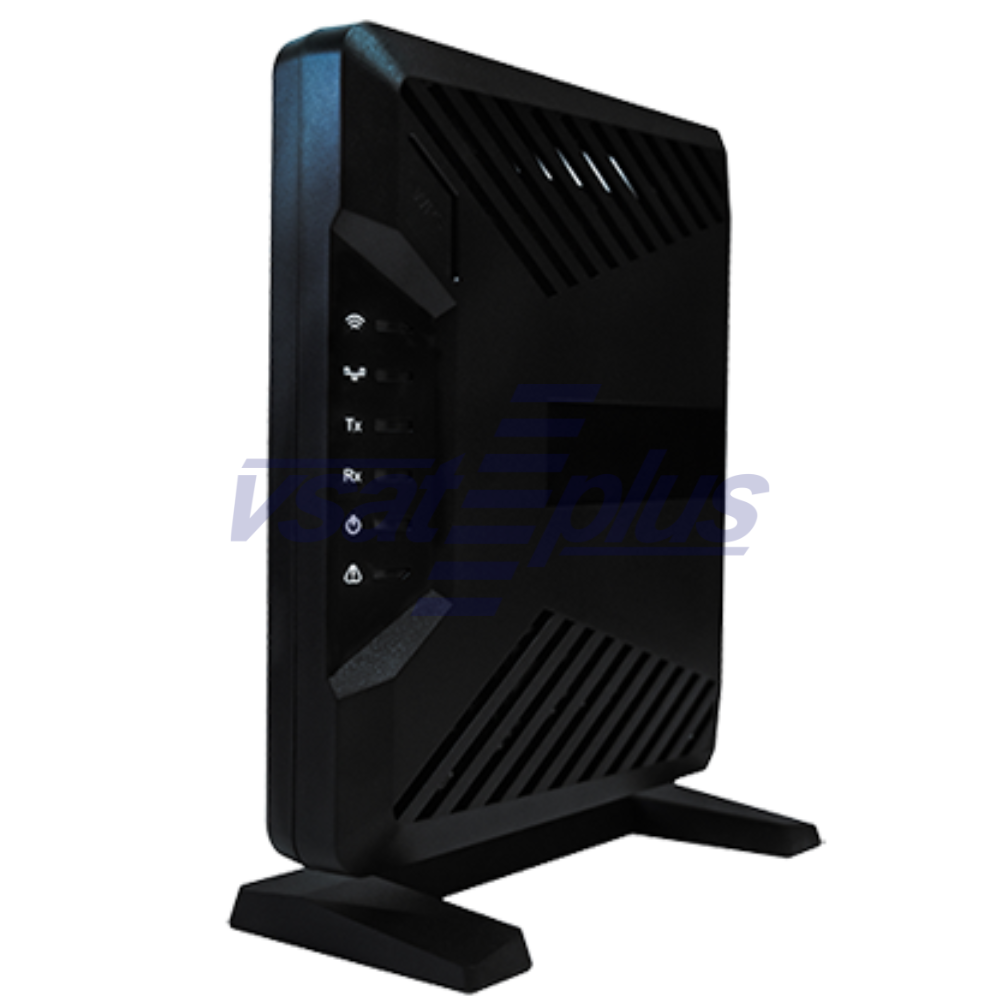

iDirect/ST Engineering MDM2010 Satellite Modem

iDirect/ST Engineering MDM2010 Satellite Modem

Request for a quote

The MDM2010 Satellite Modem is a wideband DVB-S2X two-way, high throughput modem that supports Mx-DMA with Multi-Resolution Coding (MRC) return links. It is combined with a range of different antenna sizes and interactive LNBs forming a cost-effective satellite terminal on the Dialog platform.

The MDM2010 is a compact, lightweight desktop modem with very low power consumption, ideal for broadband access and small enterprise deployments. The modem is very flexible supporting DVB-S2X forward and featuring the high throughput (120/10mbps), flexible MF-TDMA and Mx-DMA MRC (Multi-Resolution Coding) returns. The MDM2010 is bundled with a range of different antenna sizes and interactive LNBs forming an affordable satellite terminal on the Dialog platform. Its ease of installation and high performance modulation techniques enable network operators to offer IP broadband services in a cost-effective way.

Features of the MDM2010

  • DVB-S2X support up to 500 Msps in the forward link

  • Mx-DMA with MRC (Multi-Resolution Coding) up to 10 Msps return link

  • High throughput, up to 120/10 Mbps

  • Support for single cable and dual cable outdoor units

  • Unique Point&Play easy-installation capability

  • Easy to use multilingual web GUI for installation, diagnostics and troubleshooting

Network Configuration

Network Topology

Rx

 Tx
DVB-S2/DVB-S2X Mx-DMA - MRC (Multi-ResCoding) MF-TDMA
Modulation QPSK, 8PSK, 16APSK, 32APSK, 64APSK QPSK, 8PSK, 16APSK, 32APSK, 64APSK 4CPM
Symbol Rates Up to 20 Msps Up to 10 Msps Up to 7.6 Msps

Modem Interfaces

Tx Interface

Connector F-Type 75 Ohm
Frequency range 2750-3000 MHz
TX level 0 dBm


Rx Interface

Connector F-Type 75 Ohm
Frequency 950-2150 MHz
RX level 65 to -25 dBm
LNB power 13/18VDC, 500mA

Data Interface

LAN: Four 10/100/1000 Mbps Ethernet, auto MDI/MDIX
OPTIONAL WI-FI: 802.11 b/g/n, 2.4 GHz

Future Use
MicroSD mass storage option MicroSD cards

Management Interface

I/O header, 20 pin connector (includes reset function)
Power & Status signaing connector (14 pin)

Management

 Protocols Supported

UDP, IPv4 & IPv6, ICMP, TCP, IGMPv1, IGMPv2, ARP, DHCP, DNS, NTP, BGP, NAT, Diffserv Marking

Multilingual Web GUI

Manage web GUI via configurable management IP address

Mechanical and Environmental

Housing

W 8.2 cm x D 17.7 cm x H 21.2 cm
(W 3.23 in x D 6.96 in x H 8.34 in)
Weight 0.48 kg (1.05 lbs)
Temperature:
Operating -0.48 kg (1.05 lbs)
Storage -40° to +60°C (-40° to +140°F)
Humidity
Operating  5 - 95% non-condensing

Power Supply

Input Voltage

50Hz\220-260 V, 60Hz\100-130 V
24 VDC
Mains Power Consumption 60W maximum
Modem Power Consumption 21W maximum
