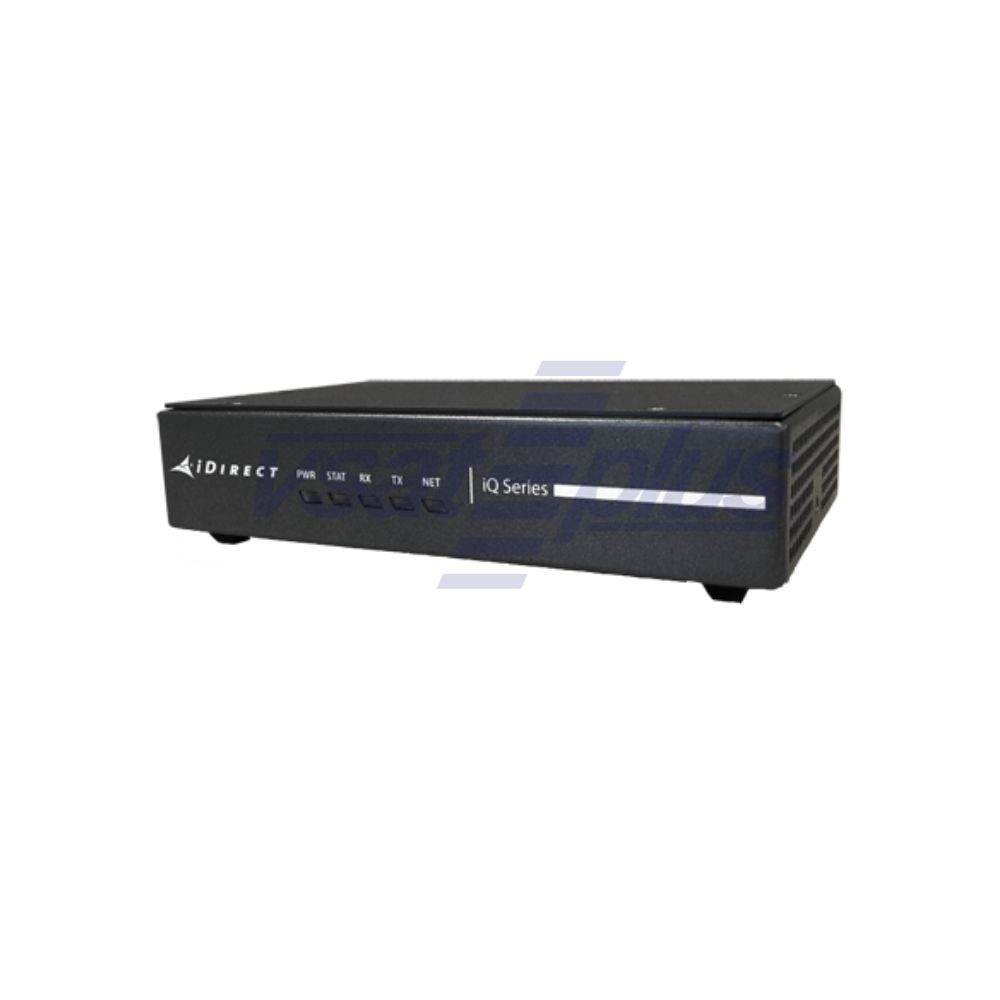

iDirect/ST Engineering iQ Desktop+ Satellite Modem

iDirect/ST Engineering iQ Desktop+ Satellite Modem

Request for a quote

The iQ Desktop+ is part of iDirect’s DVB-S2/S2X remote series based on a future-proof hardware with software-defined architecture for maximum flexibility and expansion. The iQ Desktop+ is highly scalable and ideal for broadband access and small enterprise mobility applications and is compatible on both Evolution® and iDirect Velocity®.

The iQ Desktop+ features dual Gigabit Ethernet VLAN-aware networking ports and a very small form factor ideal for prosumer, broadband access, and small enterprise site networks supporting a large range of fixed and mobile applications including Internet/Intranet access, SCADA, Voiceover-IP (VoIP), video streaming, and multicasting. The iQ Desktop+ can reach throughputs up to 200 Mbps when being used in L2oS mode and is compatible with a variety of ODU configurations. The modem’s high performance modulation techniques enable network operators to offer various bandwidth intensive services in a cost-effective way. Packaged in a professional grade metal enclosure, this modem can operate at an extended temperature range up to 50 degrees Celsius.

The iQ series modems are also available as a 1U rackmount or board level product.

Features of the iQ Desktop+

  • DVB-S2 (up to 45 Msps) / DVB-S2X (up to 100 Msps) outbound
  • DVB-S2X MODCODS up to 256APSK
  • Adaptive TDMA up to 7.5 Msps, 16QAM modulation
  • Ideal for both fixed and mobility applications
  • Easy to use and install with remote commissioning systems
  • Layer 2 and Layer 3 optimized

 Network Configuration

Network Topology Rx  Tx
DVB-S2X*/ACM DVB-S2*/ACM Adaptive TDMA
Modulation QPSK, 8PSK, 16APSK, 32APSK,
64APSK, 128APSK, 256APSK
QPSK, 8PSK,
16APSK, 32APSK
BPSK, QPSK, 8PSK,
16QAM*
FEC Refer to the LBA guide LDPC 1/4 - 8/9 2D 16-State 1/2 - 6/7
Symbol Rates 5 Msps to 100 Msps 1 Msps to 45 Msps 128 ksps to 7.5 Msps
Spread Spectrum* SF: 2,4,8; Up to 7.5 Mcps

Modem Interfaces

Tx Interface

Connector F-Type 75 Ohm
Frequency range L-band 950-2400 MHz
TX level Pmax of +0 dBm to Pmin of -35 dBm
BUC power supply +24V, 2.3A** (max) @ connector Tx out
BUC reference 10/50 MHz

Rx Interface

Connector F-Type 75 Ohm
Frequency 950-2150 MHz
LNB power supply 13/18/21V @ 0.5A** @ connector Rx in
LNB LO selection 22 kHz on/of

Data / Management Interface

LAN: Two 10/100/1000 Mbps Ethernet

* Feature is release and platform dependent

**65W AC PSU:               40°C: Combined Tx & Rx port power not to exceed 43W
                                         50°C: Combined Tx & Rx port power not to exceed 36W
65W DC PSU: 50°C:       Combined Tx & Rx port power not to exceed 43W
90W PSU:                        40°C: Combined Tx & Rx port power not to exceed 65W
                                         50°C: Combined Tx & Rx port power not to exceed 56W
Protocols Supported
TCP, UDP, ICMP, DHCP, NAT/PAT, DNS, ROHCv2, RIPv2, IGMPv2,
IGMPv3, ICMP, IPv4 (IPv6 over L2oS), L3, VRRP, BGP

Security

256-bit AES Link Encryption (optional)

Mechanical and Environmental

Size W 18.28 cm x D 11.17 com x H 4.44 cm
(W 7.2 in x D 4.4 in x H 1.75 in)
Weight 0.41 kg (0.91lb)
Operating Temp.
65W AC PSU:  0° to +50°C (32° to +122°F), 53W max pwr consumption
                         0° to +40°C (32° to +104°F), 65W max pwr consumption
65W DC PSU:  0° to +50°C (32° to +122°F), 65W max pwr consumption
90W AC PSU:  0° to +50°C (32° to +122°F), 75W max pwr consumption
                         0° to +40°C (32° to +104°F), 90W max pwr consumption
                         Storage Temp. -40° to +85°C (-40° to +185°F)
 Humidity:
                         Operating 10 - 90% non-condensing
                         Storage 5 - 95% non-condensing

Power Supply

Input Voltage 100-240VAC, 50-60Hz
12-36VDC

View full details
