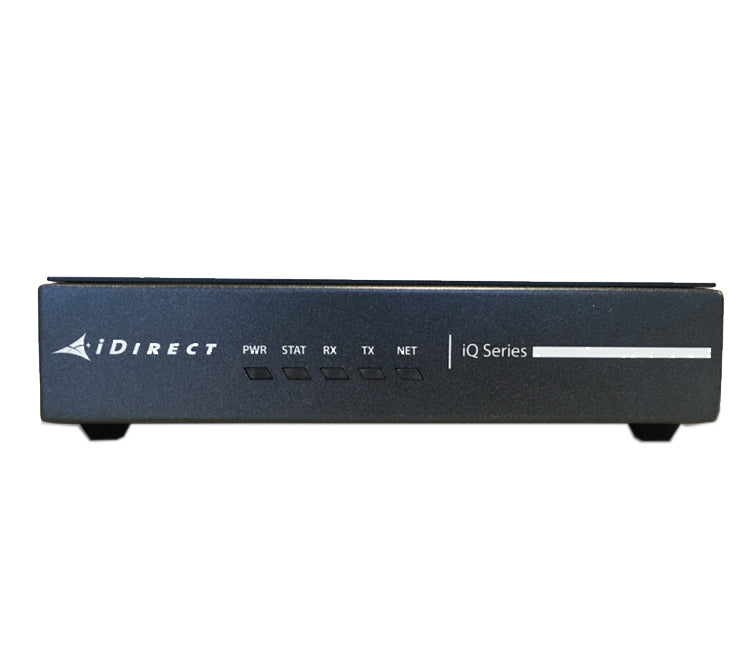

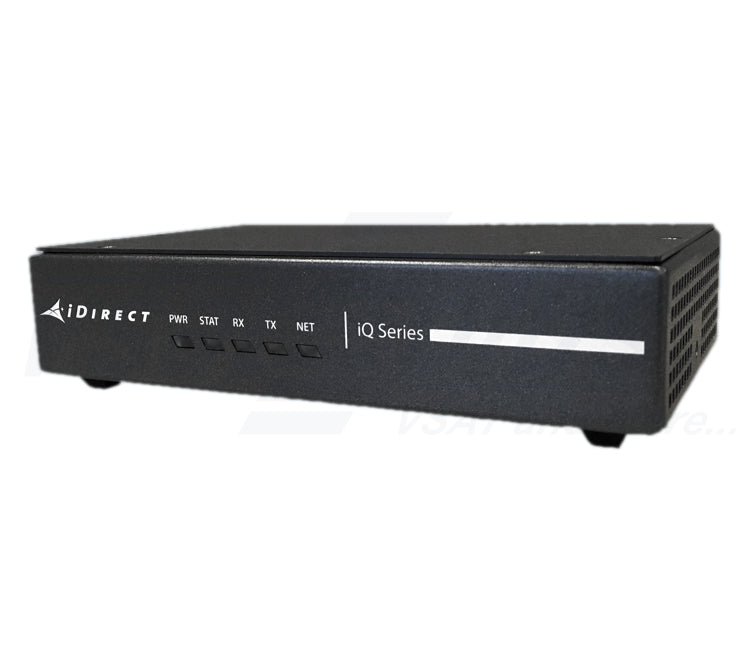

iDirect IQ Desktop+ Satellite Router + License 5MB IQ-5

iDirect IQ Desktop+ Satellite Router + License 5MB IQ-5

Satellite Modem

The iQ Desktop+ features dual Gigabit Ethernet VLAN-aware networking ports and a very small form factor ideal for prosumer, broadband access, and small enterprise site networks supporting a large range of applications including Internet/Intranet access, SCADA, Voiceover-IP (VoIP), video streaming,...

USD 485.00
  • Category: All Products, Featured products, Idirect, Satellite Modems - VSATplus

The iQ Desktop+ features dual Gigabit Ethernet VLAN-aware networking ports and a very small form factor ideal for prosumer, broadband access, and small enterprise site networks supporting a large range of applications including Internet/Intranet access, SCADA, Voiceover-IP (VoIP), video streaming, and multicasting. The iQ Desktop+ can reach throughputs up to 200 Mbps when being used in L2oS mode and is compatible with a variety of ODU configurations. The modem’s high performance modulation techniques enable network operators to offer various bandwidth intensive services in a cost-effective way. Packaged in a professional grade metal enclosure, this modem can operate at an extended temperature range up to 50 degrees Celsius.



FEATURES

  • DVB-S2 (up to 45 Msps) / DVB-S2X (up to 100 Msps) outbound
  • DVB-S2X MODCODS up to 256APSK
  • Adaptive TDMA up to 7.5 Msps, 16QAM modulation
  • 256-bit AES Link Encryption
  • Easy to use and install with remote commissioning systems
  • Layer 2 and Layer 3 optimized

Network Configuration

Network Topology

Rx



Tx



DVB-S2X*/ACM

DVB-S2*/ACM

Adaptive TDMA

Modulation

QPSK, 8PSK, 16APSK, 32APSK,

QPSK, 8PSK, 16APSK, 32APSK

BPSK, QPSK, 8PSK, 16QAM*

FEC

Refer to the LBA guide

LDPC 1/4 - 8/9

2D 16-State 1/2 - 6/7

Symbol Rates

5 Msps to 100 Msps

1 Msps to 45 Msps

128 ksps to 7.5 Msps

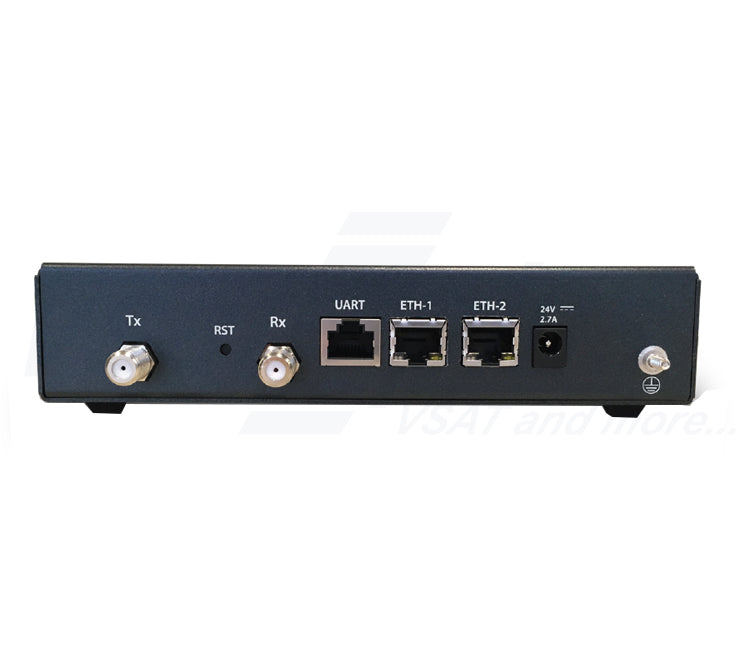

Modem Interface

Tx Interface

Connector

F-Type 75 Ohm

Frequency range L-band

950-2400 MHz

TX level

Pmax of +0 dBm to Pmin of -35 dBm

BUC power supply

+24V, 2.3A** (max) @ connector Tx out

BUC reference

10/50 MHz

Rx Interface

Connector

F-Type 75 Ohm

Frequency

950-2150 MHz

LNB power supply

13/18/21V @ 0.5A** @ connector Rx in

LNB LO selection

22 kHz on/off

Data Interface

LAN: One 10/100/1000 Mbps Ethernet

Management Interface

LAN: One 10/100/1000 Mbps Ethernet



Management

Protocols Supported

TCP, UDP, ICMP, DHCP, NAT/PAT, DNS, ROHCv2, RIPv2, IGMPv2, IGMPv3, ICMP, IPv4 (IPv6 over L2oS), L3

Security

256-bit AES Link Encryption



Mechanical and Environmental

Size

W 18.28 cm x D 11.17 com x H 4.44 cm

( W 7.2 in x D 4.4 in x H 1.75 in)

Weight

0.41 kg (0.91lb)

Operating Temp.



65W AC PSU: 0° to +50°C (32° to +122°F), 53W max pwr consumption

0° to +40°C (32° to +104°F), 65W max pwr consumption

65W DC PSU: 0° to +50°C (32° to +122°F), 65W max pwr consumption

90W AC PSU: 0° to +50°C (32° to +122°F), 75W max pwr consumption

0° to +40°C (32° to +104°F), 90W max pwr consumption

Storage Temp.     -40° to +85°C (-40° to +185°F)

Humidity:

Operating   10 - 90% non-condensing

Storage   5 - 95% non-condensing
