IDirect Evolution X5 Satellite Router Features

  • Star topology
  • Two modes of operation: iNFINITI or DVB-S2/ACM outbound
  • Deterministic MF-TDMA or SCPC Return channel
  • Extremely efficient 2D 16-State inbound coding
  • Advanced QoS and traffic prioritization
  • Automatic end-to-end Uplink Power Control
  • Optional Spread Spectrum waveform technology supports very small antennas

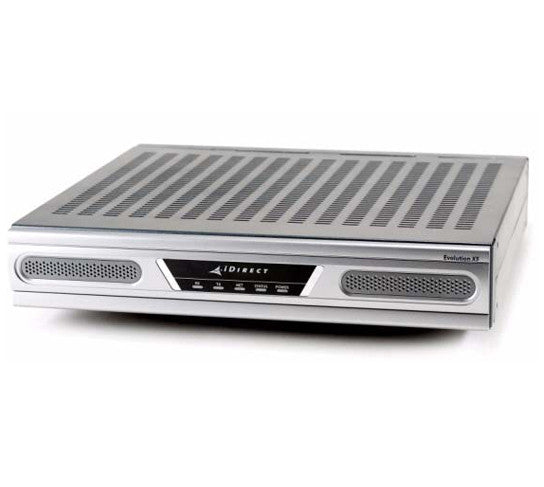

IDirect Evolution X5 Series Satellite Router (Modem)

High-Speed, High-Performance IP Broadband Connectivity

Designed specifically to support business-critical applications, the iDirect Evolution X5 Satellite Router is ideally suited for high-performance broadband applications such as enterprise connectivity, cellular backhaul, maritime, secure banking, and other mobile applications.

The iDirect Evolution X5 Satellite Router features iDirect’s highly efficient implementation of the DVB-S2 standard with Adaptive Coding and Modulation (ACM) on the outbound carrier. Along with Adaptive TDMA technology or SCPC Return, 2D 16-State FEC, the Evolution X5 maximizes the efficiency of satellite capacity to enable new opportunities.

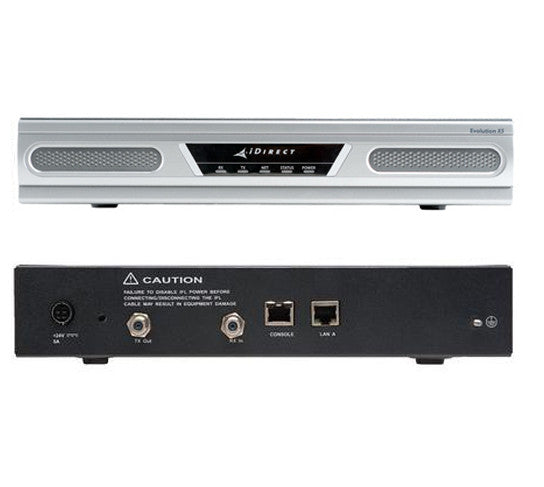

IDirect X5 Rear Panel


Simple Intuitive Network Management

The iDirect Evolution X5 Satellite Router is easily configured, monitored, and controlled through the iVantageTM network management system, a complete suite of software-based tools for configuring, monitoring and controlling networks from one location.

The Evolution X5 Series is easily configured, monitored, and controlled through the iVantageTM network management system, a complete suite of software-based tools for configuring, monitoring and controlling networks from one location.

Network Configuration

Network Topology Star
Downstream
DVB-S2 or (iNFINITI TDM)
Upstream
ATDMA or (SCPC Return)
Modulation QPSK, 8PSK, 16APSK (BPSK, QPSK, 8PSK) BPSK, QPSK, 8PSK (BPSK, QPSK, 8PSK)
FEC LDPC, 1/4 - 8/9 (Turbo, 0.495 – 0.879) TPC*, 0.431 – 0.793 2D 16-State, 1/2 - 6/7
(SCPC Return: 2D 16-State, 1/2 - 6/7)
Max. Symbol Rate 45 Msps (15 Msps) 7.5 Msps (15 Msps)
Max. Info Rate 150 Mbps 1 (21 Mbps2) 19.2 Mbps (38.5 Mbps4)
Max. Line Card IP Data Rate 149 Mbps (20 Mbps) 16 Mbps (19.3 Mbps)
Max. Remote IP Data Rate 35 Mbps (17 Mbps) 10 Mbps (18.9 Mbps)
Spread Spectrum
(Max Rate Mcps)
Up to 7.5 Mcps
Spreading Factors: 1, 2, 4, 8
Maximum downstream and upstream
data rates cannot be achieved simultaneously
Maximum rates are achieved under
optimal conditions and with unlimited NMS

Interfaces

Satcom Interfaces
Tx Out Type-F: 950 – 1700MHz,
Composite Power +7dBm / -35dBm
Rx In: Type-F, 950 – 2150MHz,
, -5dBm (max) composite /
-125+10*Log10(FSym) dBm
(min) single carrier
Software controllable 10 MHz
reference on TX Out and TX In ports
BUC IFL Interface +24V, max. 70W, (120W PSU)(please
refer to X5 Installation Manual for full list of supported BUCs)
LNB IFL Interface +19V (Nominal), 500mA max
DiSEqC (Voltage 14V/19V + 22KHz tone)
Data Interfaces LAN: Single 10/100, 802.1q VLAN
RS-232: RJ45 (Console connection),
Security AES Link Encryption (256-bit)
Protocols Supported TCP, UDP, ACL, ICMP, IGMP, RIP Ver2,
Static Routes, NAT, DHCP, DHCP Helper,
Local DNS Caching, OpenAMIP, cRTP and GRE
Traffic Engineering Group QoS, QoS
(Priority Queuing and CBWFQ),
Strict Priority Queuing,
Application Based QoS,
Minimum CIR, CIR
(Static and Dynamic),
Rate Limiting
Other Features Built-in Automatic Uplink Power,
Frequency and Timing Control,
Authentication, Spread Spectrum**,
Antenna Control Interface (OpenAMIP)

Mechanical / Environmental

Size (W x D x H) W 11.5 in (29.2 cm) x D 9.9 in (25.1 cm) x H 2 in (5.1cm)
Weight 4.4 lbs (1.99 Kg)
Operating Temperature 0° to +50°C (32° to +122°F) at Sea Level
with temperature gradient of 1°C per 1 min
0° to +45°C (32° to +113°F) at 10,000ft
with temperature gradient of 1°C per 1 min
For ODU power consumption <70W
(please refer to X5 Installation Manual for details)
Humidity Max 90% non-condensing humidity
Input Voltage 100–240 VAC Universal Input, 2A, 50–60 Hz
Radio Standards
    EN 301-428 v1.3.1
    EN 301-443 v1.3.1

Ku-Band System Level Specification
C-Band System Level Specification
Safety Standards Complies with IEC 60950,
EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1-03
Emission Standard Complies with EN 55022 Class B,
FCC Part 15 Class B, CISPR 22 Class B,
EN 61000-3-2, EN 61000-3-3
EMC/Immunity Standard Complies with EN 55024, EN 301-489-1,
EN 301-489-12, EN 61000-4-2, EN 61000-4-3,
EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN
61000-4-11
Certification FCC, CE, and RoHS Compliant
