IDIRECT EVOLUTION® X1 SATELLITE ROUTER Reliable, high-speed IP connectivity for large, narrowband networksThe iDirect Evolution X1 is optimized for use in large networks with small inbound channels such as SCADA, pipeline monitoring, point-of-sale and ATM. The X1 features DVB-S2/ACM, TDMA,...

  • Category: All Products, Featured products, Idirect, Limited Offers, Satellite Modems - VSATplus

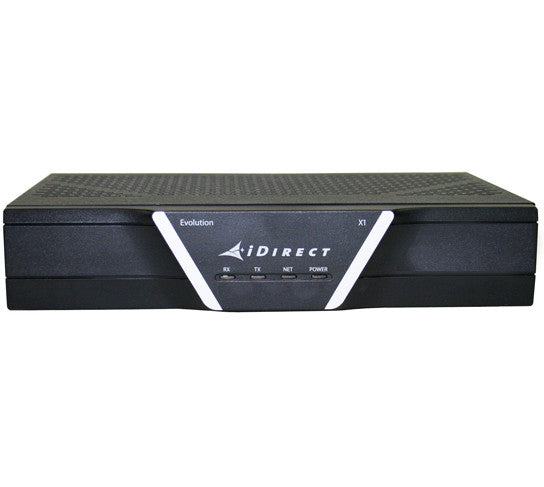

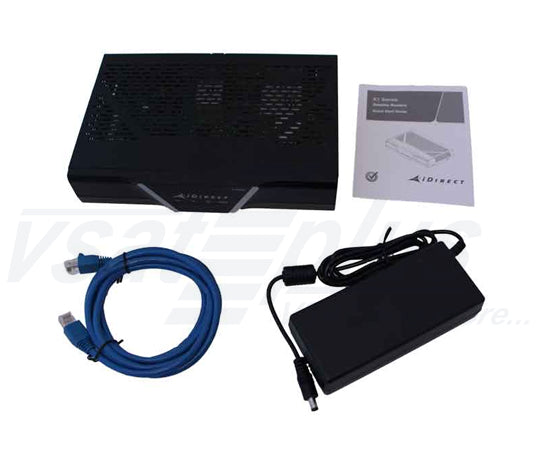

IDIRECT EVOLUTION® X1 SATELLITE ROUTER



Reliable, high-speed IP connectivity for large, narrowband networks

The iDirect Evolution X1 is optimized for use in large networks with small inbound channels such as SCADA, pipeline monitoring, point-of-sale and ATM. The X1 features DVB-S2/ACM, TDMA, basic routing and VLAN functionality at a cost-effective price point.

EVOLUTION X1 HIGHLIGHTS
  • Star topology
  • DVB-S2/ACM outbound for greater efficiency and enhanced network availability
  • Deterministic MF-TDMA return channel
  • Optional IP67 enclosure to withstand extreme temperatures
  • AC or DC power supplies
  • Low cost of entry
Compact and cost-effective, the Evolution X1 Satellite Router features DVB-S2 and Adaptive Coding and Modulation (ACM) on the outbound and deterministic TDMA on the return to maximize bandwidth efficiency. The X1 outdoor version is low-powered, withstands extreme temperatures and is pole mountable for increased flexibility and convenience. The X1 also has a web-based iSite for ease of remote commissioning.

X1 Network Configuration

Network Topology Star (DVB-S2/ACM downstream + ATDMA upstream)
Modulation Downstream: QPSK, 8PSK, 16APSK
Upstream: BPSK, QPSK, 8PSK
Maximum Rates Supported Rate Downstream (DVB-S2) Upstream (ATDMA)
Symbol Rate 1 -45 Mbps 128 ksps – 4 Msps*
Info rate Up to 150 Mbps Up to 10 Mbps*
Line Card IP rate Up to 149 Mbps Up to 8.5 Mbps
Remote IP data rate Up to 76.3 Mbps Up to 8.5 Mbps*
Max. Symbol Rate 45 Msps (15 Msps) 7.5 Msps (15 Msps)
Max rates are achieved under optimal conditions.
FEC Downstream: LDPC, 1/4 - 8/9
Upstream: 2D 16-State, 1/2 - 6/7
Eb/N0 For full list, please refer to the latest
iDirect Link Budget Analysis Guide

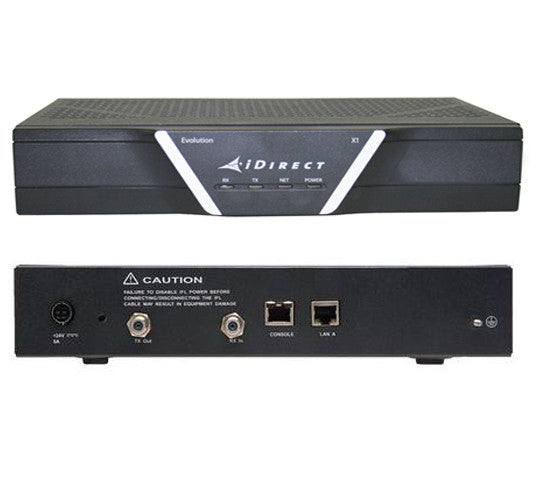

Interfaces

Satcom Interfaces
TxIF Type-F: 950 – 1700MHz,
Composite Power 0dBm / -30dBm
RxIF Type-F, 950 – 2150MHz, -5dBm / -65dBm
10MHz IFL BUC reference
Available BUC Power (IFL) +24V, 25W max. supporting BUCs up to 3W (65W external PSU)
+24V, 50W max. supporting BUCs 4W Ku E0001102-0001 and 5W C NJT5669F (90W external PSU)
Available LNB Power (IFL) +24VDC, 22kHz DiSEqC tone
Data Interfaces LAN: 10/100 Ethernet
Web-based configuration via Ethernet port
Security AES-256 Link Encryption* (optional)
Protocols Supported TCP, UDP, ICMP, NAT/PAT*, DHCP, Local DNS Caching, cRTP*
Traffic Engineering QoS (Priority Queuing, Strict Priority Queuing, WFQ)
Application-based QoS; Configurable Packet Classifier
CIR (Static and Dynamic), Minimum CIR, Idle/Dormant Min IR
Other Features Built-in Automatic Uplink Power Control,
Frequency and Timing Control,
Authentication

Mechanical / Environmental

Size (W x D x H) 9 x 6.8 x 1.8 inches (22.9 x 17.3 x 4.6 cm)
Weight 2.0 lbs (0.91 kg)
Operating Temperature 0° to 50°C (+32° to 122°F) at Sea Level
Humidity Max 5% - 92% non-condensing humidity
Input Voltage 100-240 VAC Single Phase, 50-60 Hz12-36 VDC
Radio Standards
    EN 301-428 v1.3.1
    EN 301-443 v1.3.1
<
Safety Standards Complies with IEC 60950-1,
EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1 No.60950-1-03
Emission Standard Complies with EN 55022 Class B,
FCC Part 15 Class B,
EN 61000-3-2, EN 61000-3-3
EMC/Immunity Standard Complies with EN 55024, EN 301-489-1,
EN 301-489-12, EN 61000-4-2, EN 61000-4-3,
EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN
61000-4-11
