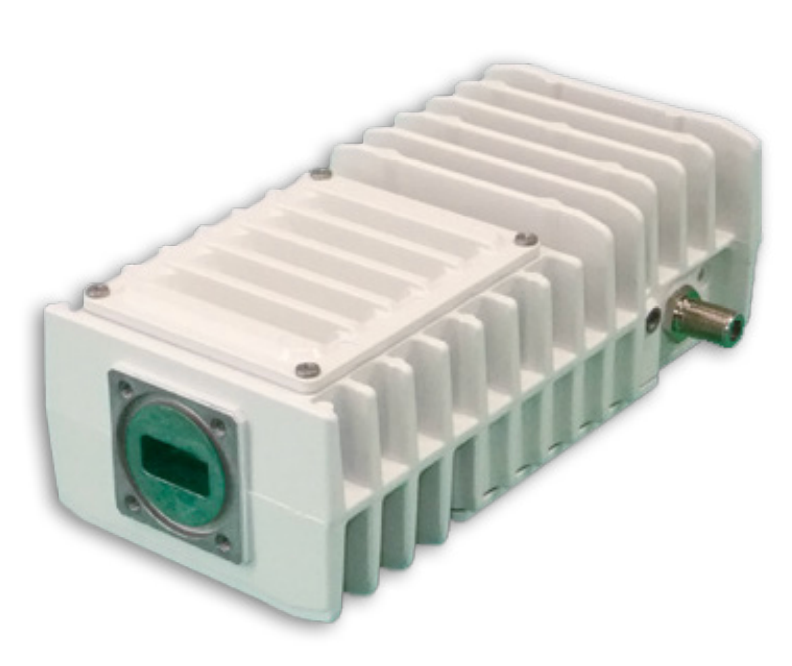

iDirect E0002603-0001 6W Universal-Ku Band BUC

The iDirect 6W Universal Ku-Band BUC is a compact, mid-power block up converter engineered for reliable VSAT uplink performance in demanding environments. Designed using iDirect’s advanced manufacturing platform, this 6W BUC extends high efficiency and compact form factor into higher power applications while maintaining low power consumption and strong linear performance.

Supporting both standard and extended Ku-band frequencies, it provides flexibility for global deployments and is fully compatible with Evolution® and Velocity® platforms  . It can also be directly powered by iDirect X3 and above remotes  , simplifying installation and reducing additional power supply requirements.

Key Features

• Output Frequency: 13.75 – 14.5 GHz

• Input Frequency: 950 – 1700 MHz

• Output Power: +37.8 dBm minimum @ 1 dB compression

• Linear Gain: 62 dB nominal

• DC Power: +24 VDC (12–30 VDC range), 40W typical

• Ingress Protection: IP67 (dust tight & water resistant)

• Operating Temperature: -40°C to +60°C

• Compact Design: 1.2 kg weight

Key Specifications

With high environmental durability, low power consumption, and strong uplink performance, the 6W Universal Ku-Band BUC is ideal for enterprise VSAT, mobility systems, and networks operating in heavy rain-fade regions.

Manufactured in Japan and backed by a 3-year warranty  , this BUC delivers long-term reliability and performance.

Order the iDirect 6W Universal Ku-Band BUC today from VSATplus and enhance your satellite uplink power with professional support and global delivery.

 iDirect E0002603-0001 6W Universal-Ku Band BUC Datasheet
