iDirect DiSEqC 22 kHz Universal Ku-Band PLL LNB (NJR2842L) iDirect’s DiSEqC 22 kHz Universal Ku-band PLL LNBs are highly stable low-noise block converters with superior phase noise performance. Compatible for use with the Evolution platform. The iDirect portfolio of advanced BUCs and LNBs is specifically tailored around the capabilities of...
-
+
USD 150.00 from USD 115.00
USD 115.00
Add to wishlist
Tags:

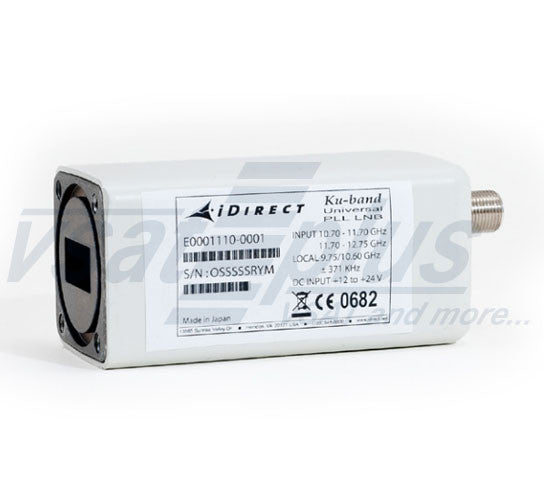

iDirect DiSEqC 22 kHz Universal Ku-Band PLL LNB (NJR2842L)

iDirect’s DiSEqC 22 kHz Universal Ku-band PLL LNBs are highly stable low-noise block converters with superior phase noise performance. Compatible for use with the Evolution platform.

The iDirect portfolio of advanced BUCs and LNBs is specifically tailored around the capabilities of iNFINITI® and Evolution® satellite routers, creating synergies that deliver increased flexibility, efficiency, and convenience through genuine innovations in ODU design and manufacturing.

UNIVERSAL DESIGN

BUCs feature standard plus extended Ku-band uplink range, covering 13.75 – 14.5 GHz contiguously. PLL LNBs can be used for all three Ku-band downlink sub-bands of Euro Low, Americas & Euro High (10.7 - 12.75 GHz), switched across two L-band ranges through DiSEqC (22KHz tone) control by an Evolution remote or user selected via a mechanical switch.

POWER EFFICIENCY

iDirect’s ODU products are more power efficient than alternative products, which reduces power consumption and carbon emissions, as well as easing deployments of remotes supplied by solar and other restricted power sources.

COMPACT AND LIGHTWEIGHT

Improved power efficiency results in smaller heat sinks to cool ODU electronics. iDirect’s 3W Universal BUC occupies only a fraction of the volume of equivalent products and weighs just 350g. This results in less weight and wind-loading on antenna feed-arms and means that low-cost lightweight ‘Class 1’ antennas can be used with greater confidence.

Electrical
Input Frequency Range
    Low Band
    High Band

10.70 to 11.70 GHz
11.70 to 12.75 GHz
Output Frequency Range
    Low Band
    High Band

950 to 1,950 MHz
1,100 to 2,150 MHz
Local Frequency
    Low Band
    High Band

9.75 GHz
10.60 GHz
Conversion Gain 48 dB min., 62 dB max.
Noise Figure
    at + 25 degree C
    over temperature

0.9 dB typ.
1.1 dB typ.
Local Stability (Initial Setting Error & Over Temperature) +/- 35 ppm max.
L. O. Phase Noise (SSB) -50 dBc/Hz typ. @ 100 Hz -70 dBc/Hz typ. @ 1 kHz -75 dBc/Hz typ. @ 10 kHz -85 dBc/Hz typ. @ 100 kHz -105 dBc/Hz typ. @ 1 MHz
Image Rejection 40 dB min.
Input V.S.W.R. 2.5 : 1 typ.
Output Impedance 75 ohms nom.
Output V.S.W.R. 2.3 : 1 max.
Requirement for DC Supply
Input Port IF Output Connector; DC Supply combined with IF Signal
Input Voltage +10 to +24 VDC
Current Drain 145 mA typ., 170 mA max.
Mechanical
Input Interface Waveguide, WR-75 with Groove
Output Interface F-type, Female connector
Dimension & Housing     (without Interface Connector)
    (without Interface Connector & Rotary SW)

DiSEqC 22 KHz Tone: (L) 82.2 x (W) 40 x (H) 40 mm
Manual Switch: (L) 83.2 x (W) 42 x (H) 42 mm
Weight 210 g [0.46 lbs]
Environmental
Temperature Range (ambient)
    Operational
    Storage

-40 to +60 C
-40 to +80 C
Humidity 0 to 100 % Rh
Altitude 15,000 feet max.
Compliance CE, FCC, RoHS
