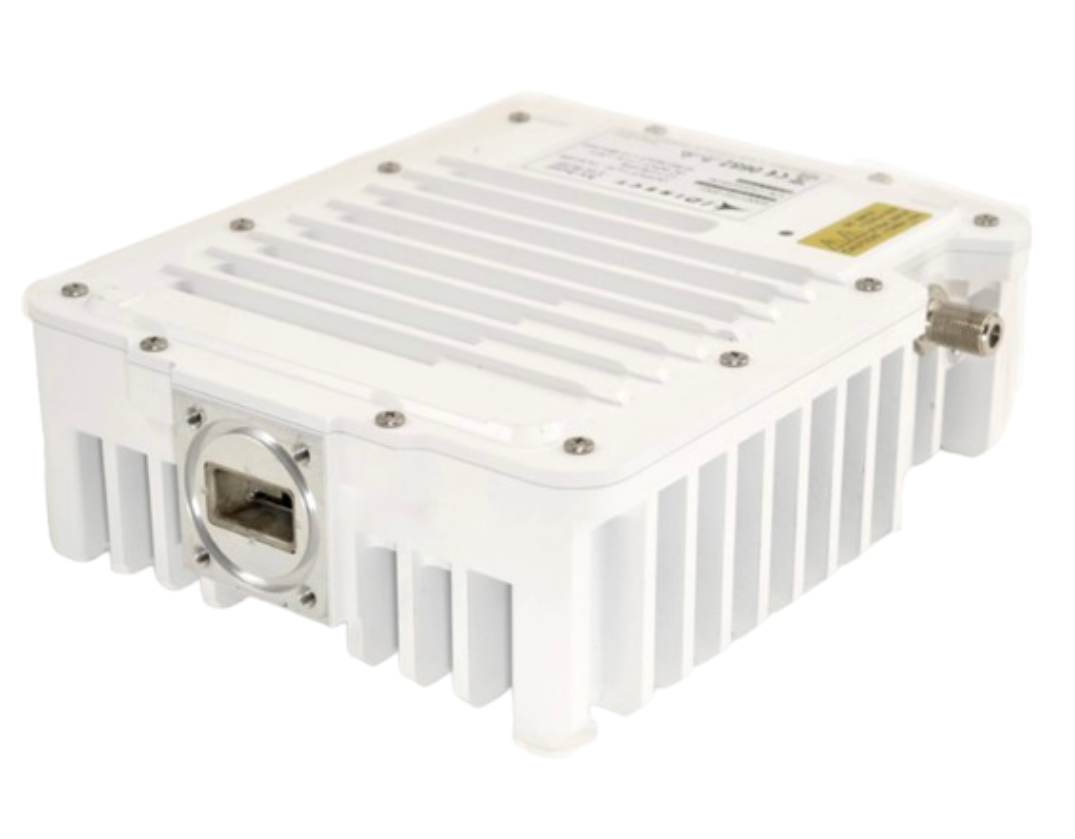

iDirect E0001102-0001 4W Universal-Ku Band BUC
iDirect E0001102-0001 4W Universal-Ku Band BUC
Couldn't load pickup availability
The iDirect 4W Universal Ku-Band BUC is a reliable, high-performance block up converter designed for VSAT networks requiring stronger uplink power and improved rain-fade resilience. Supporting both standard and extended Ku-band frequencies, it delivers the flexibility and stability needed for enterprise, mobility, and service provider deployments.
Fully compatible with Evolution® and Velocity® platforms , this BUC is ideal for upgrading existing iDirect-based networks.
Key Highlights
-
Output Frequency: 13.75 – 14.5 GHz
-
Input Frequency: 950 – 1700 MHz
-
Output Power: +36 dBm min @ 1 dB compression
-
Gain: 62 dB nominal
-
DC Power: +24 VDC (15–30 VDC range), 37W max
-
Operating Temp: -40°C to +55°C
-
Compact Design: 1.7 kg weight
Built for harsh environments and demanding uplink conditions, the 4W Universal Ku-Band BUC ensures stable transmission, improved link margin, and long-term reliability.
Electrical Specifications
|
Parameter |
Specification |
|---|---|
|
Output Frequency |
13.75 – 14.5 GHz |
|
Input Frequency |
950 – 1700 MHz |
|
L.O. Frequency |
12.80 GHz |
|
Operating Power |
+36 dBm min @ 1 dB GCP |
|
Linear Gain |
62 dB nominal / 56 dB min |
|
Input Impedance |
75 Ω |
|
Input VSWR |
2:1 max |
|
Output VSWR |
2:1 max |
|
DC Voltage |
+24 VDC (+15 to +30 VDC range) |
|
Power Consumption |
37W max @ +36 dBm |
Order the iDirect 4W Universal Ku-Band BUC today from VSATplus with full technical support and global delivery.
