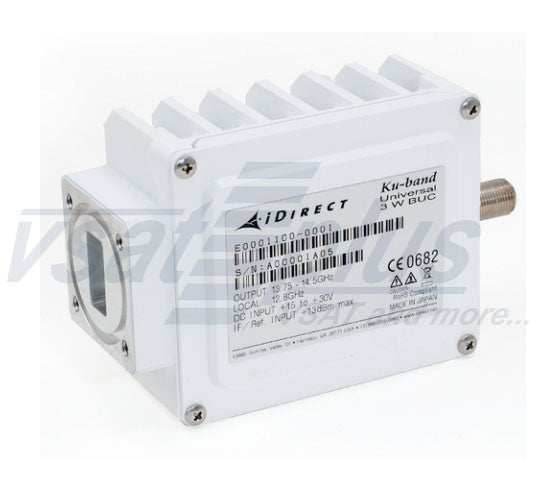

iDirect 3W Universal Ku-Band BUC (NJT8302UF)

Private Labeled NJRC NJT8302UF 3W Universal Ku-Band BUC

FEATURES

  • Output Frequency Range: 13.75 - 14.50 GHz
  • L.O. Frequency: 12.80 GHz
  • IF Input Frequency: 950 - 1700 MHz
  • Output Power @ P1dB: +34.0 dBm min. over temp.
  • DC Power Input: 24V (+12 - +30V) @ 23W max via input
  • Input Connector: F-type
  • Weight 0.77 Lbs. (350g)

      MECHANICAL DRAWING

      Electrical
      Output Frequency Range 13.75 to 14.5 GHz
      Input Frequency Range 950 to 1,700 MHz
      Conversion Type Single, fixed L.O.
      L.O. Frequency 12.80 GHz
      Output Power @ 1dB G.C.P. +34.5 dBm min. @ +25C; +34 dBm min. over temp.
      Linear Gain 58 dB typ., 51 dB min.
      ACPR -26 dBc typ. @ Pout = +34 dBm
      Requirement for External Reference
      Frequency 10 MHz (sine-wave)
      Input Power -5 to +5 dBm @ Input port
      Phase Noise -125 dBc/Hz max. @ 100 Hz
      -135 dBc/Hz max. @ 1 kHz
      -140 dBc/Hz max. @ 10 kHz
      L.O. Phase Noise (SSB) -60 dBc/Hz max. @ 100 Hz
      -70 dBc/Hz max. @ 1 kHz
      -80 dBc/Hz max. @ 10 kHz
      -90 dBc/Hz max. @ 100 kHz
      -100 dBc/Hz max. @ 1MHz
      Spurious
          In band
          In receive band
          Out-of-band

      -50 dBc max. @ 13.75 to 14.5 GHz
      -70 dBm max. @ 10.95 to 12.75 GHz
      -50 dBc max.
      Input Impedance 75 ohms nominal
      Input V.S.W.R. 2 : 1 max.
      Output V.S.W.R. 2 : 1 max.
      DC Power Requirement
      Voltage Range +24 VDC (+15 to +30 VDC)
      Power Consumption 22 W max. @ Pout = +34 dBm; 15 W max. @ No IF, +25 C; 25 W max. @ Saturation
      Mechanical
      Input Interface F-type, female
