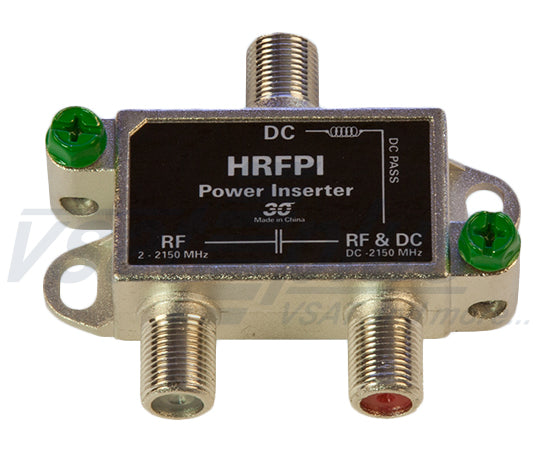

Holland RF Power Inserter 24V / 2A
Holland RF Power Inserter 24V / 2A
Power Inserter
When you need DC voltages on the coax cable and the RF signals must pass through the power inserter. Holland power inserters couple regulated DC voltage on coax cables while allowing the RF signal from satellite modem or router to pass...
USD 77.00
- SKU::
- Category: Accessories, All Products, Installation Accessories
When you need DC voltages on the coax cable and the RF signals must pass through the power inserter. Holland power inserters couple regulated DC voltage on coax cables while allowing the RF signal from satellite modem or router to pass through the inserter. DC Power originates from switching, short circuit protected power supply that can provide maximum 24V and 2A.
