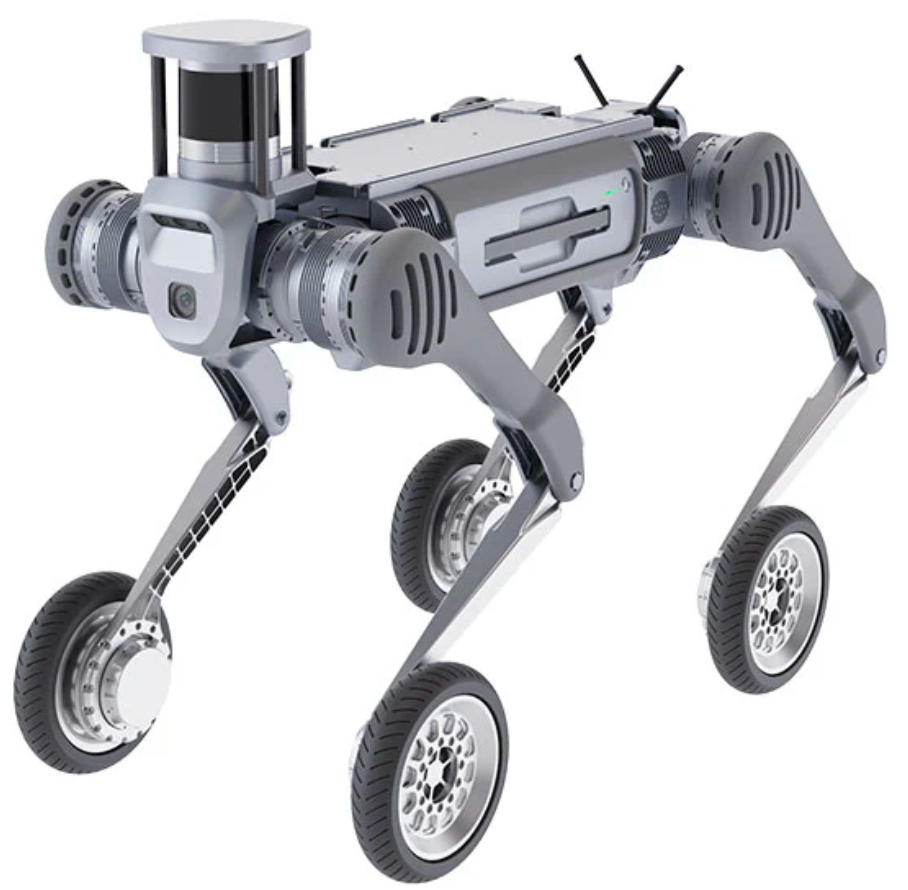

The GQR0440-W Intelligent Quadruped Robot (Wheel Version) is a next-generation industrial robot that combines quadruped stability with wheeled mobility. Designed for industrial, defense, logistics, and research applications, it delivers exceptional endurance, high load capacity, and rugged performance in even the toughest environments.
At VSATPlus, we bring this cutting-edge robot to industries worldwide, providing businesses with a reliable and future-ready automation solution.
Key Highlights
-
🚀 Hybrid Mobility – Quadruped legs with wheels for smooth travel and obstacle climbing.
-
⚡ High Load Capacity – Carries up to 120 kg (standing) and 40 kg (walking).
-
🔋 Long Endurance – Operates 4–6 hours with a >2 kWh battery.
-
🌍 Rugged & Reliable – IP67 protection, -20°C to +55°C operating range.
-
🎯 Smart Control & AI Ready – Intel i5/i7 with optional Jetson Orin NX for advanced autonomy.
-
📦 Global Logistics Ready – Built for industrial deployment and worldwide shipping.
Technical Specifications
|
Category |
Specification |
|---|---|
|
Battery Life |
4–6 hours |
|
Battery Capacity |
> 2 kWh |
|
Battery Voltage |
58 V |
|
Endurance |
25 km with 40 kg load; 70 km without load |
|
Climbing Angle |
> 45° |
|
Stair Climbing |
Continuous 20–25 cm stairs |
|
Max Speed |
4.17 m/s |
|
Moving Speed |
2.5 m/s |
|
Ditch Jumping |
0.5 – 1.2 m |
|
Max Jump Distance |
> 1.6 m |
|
Maximum Wheel Speed |
50 rad/s |
|
Maximum Wheel Torque |
40 N.m |
|
Standing Load Capacity |
120 kg |
|
Walking Load Capacity |
> 40 kg |
|
Max Joint Torque |
360 N.m |
|
Control System |
Intel Core i5/i7 (standard); Optional Jetson Orin NX (up to 3 devices) |
|
Sensing System |
2 × Depth Cameras, 2 × Optical Cameras |
|
IP Rating |
IP67 |
|
Operating Temperature |
-20°C to +55°C |
|
Weight |
85 kg (with battery) |
|
Dimensions (Standing) |
1098 × 550 × 758 mm |
|
Dimensions (Prone) |
950 × 550 × 450 mm |
|
Wheel Diameter |
225 mm |
|
Logistics Packaging |
1270 × 670 × 770 mm, 148 kg package |
|
Country of Origin |
China |
|
Export Classification |
EAR99 |
Why Choose the GQR0440-W from VSATplus?
-
✅ Reliable global supplier with fast international shipping.
-
✅ Dedicated technical support for smooth integration.
-
✅ Access to a wide portfolio of robotics and satellite solutions.
-
✅ Backed by VSATPlus industry expertise.
👉 Order the GQR0440-W Wheel Version Intelligent Quadruped Robot today from VSATPlus and take your industrial operations to the next level.
