Norsat GQR0116L Intelligent Quadruped Robot - Lite
Norsat GQR0116L Intelligent Quadruped Robot - Lite
Couldn't load pickup availability

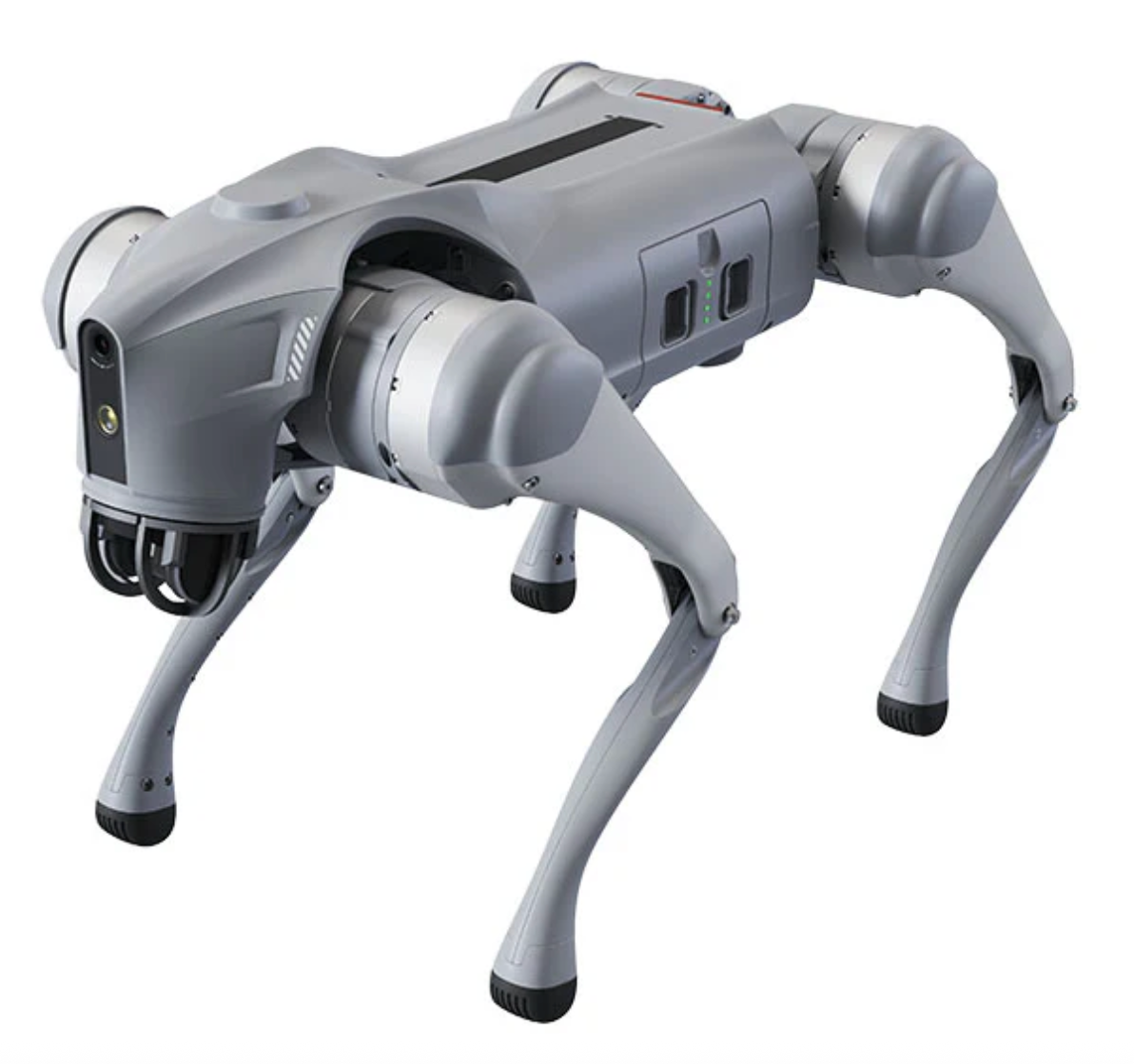

The GQR0116L Intelligent Quadruped Robot – Lite Edition is a cutting-edge mobile robotic platform designed for research, enterprise, defense, and industrial applications. With advanced locomotion, smart connectivity, and rugged durability, it delivers next-level performance for real-world missions.
Unlike traditional wheeled robots, the GQR0116L uses quadruped mobility to traverse challenging terrains, climb slopes, and maintain stability even in harsh environments. Compact yet powerful, it is perfect for applications such as industrial inspections, robotics research, AI development, and surveillance.
At VSATplus, we proudly offer this next-generation robotic solution with global delivery, technical support, and ongoing service.
Key Features
-
🚀 High Agility & Speed: Moves up to 3.5 m/s with slope climbing up to 40°.
-
📦 Payload Capacity: Carries up to 12 kg for sensors, cameras, or equipment.
-
🔋 Strong Power System: Equipped with an 8-core CPU and 8000mAh battery.
-
🌍 Durable Design: Built with IP67-rated aluminum alloy & engineering plastics.
-
📡 Smart Connectivity: Supports WiFi6, Bluetooth, and 4G modules.
-
🛰️ Advanced Sensors: Integrated 3D LIDAR for navigation & obstacle avoidance.
-
⚙️ Developer-Friendly: Supports secondary development & customization.
Technical Specifications
|
Category |
Specifications |
|---|---|
|
Battery Life |
1 – 2 hours |
|
Speed |
Up to 3.5 m/s |
|
Payload |
12 kg |
|
Climbing Angle |
40° |
|
Climb Drop Height |
~16 cm |
|
Range of Motion – Body |
-48° to +48° |
|
Range of Motion – Shank |
-156° to -48° |
|
Range of Motion – Thigh |
-200° to +90° |
|
CPU |
8-core high-performance |
|
Battery Capacity |
8000 mAh |
|
Voltage |
28 – 33.6 V |
|
Charging |
33.6V 9A fast charger |
|
Max Working Power |
3000 W |
|
IP Rating |
IP67 |
|
Weight |
15 kg (with battery) |
|
Dimensions – Standing |
700 × 310 × 400 mm |
|
Dimensions – Lying |
760 × 310 × 200 mm |
|
Material |
Aluminum alloy + engineering plastic |
|
Motors |
12 aluminum knee joint motors |
|
Max Joint Torque |
45 N.m |
|
Connectivity |
WiFi6, Bluetooth (5.2/4.2/2.1), 4G |
|
Sensors |
3D LIDAR, intelligent obstacle detection |
|
Other Functions |
ISS 2.0 side-follow, RTT 2.0 image transmission, OTA upgrades |
Why Choose the GQR0116L?
-
✔️ Perfect for research, industrial, and defense applications
-
✔️ Compact, powerful, and developer-friendly
-
✔️ Built to perform in real-world environments
Order Now from VSATPlus
You can order the GQR0116L Intelligent Quadruped Robot – Lite Edition directly from VSATPlus with global shipping, technical support, and exclusive offers.
