General Dynamics Satcom Technologies 1385 3.8M C-Band Circular Pol 1.3 VAR Tx/Rx Antenna System

Not Specified

3.8M C-Band Antenna

General Dynamics Satcoms

GD Satcom 1385 3.8M C-Band Tx/Rx Antenna System The GD Satcom 1385 3.8M C-Band Tx/Rx Antenna System from GD Satcom replaces the long-trusted GD Satcom 1383 Series. GD Satcom 1385 Features Upgraded Integral rib design for higher frequency operation Increased strength for heavier radio and ODU equipment loads. Higher precision assembly and...
-
+
USD 14,500.00
USD 14,500.00
Add to wishlist

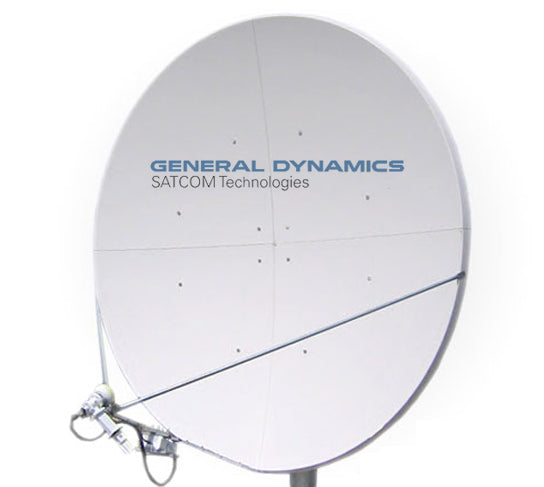

GD Satcom 1385 3.8M C-Band Tx/Rx Antenna System

The GD Satcom 1385 3.8M C-Band Tx/Rx Antenna System from GD Satcom replaces the long-trusted GD Satcom 1383 Series.

GD Satcom 1385 Features

  • Upgraded Integral rib design for higher frequency operation
  • Increased strength for heavier radio and ODU equipment loads.
  • Higher precision assembly and alignment from automated manufacturing processes.
  • Field friendly installation without requirement for specialized tools.
  • Anti-ice capability for use in cold climate and arctic environmental conditions.
  • Optimized, 4-piece reflector design for maximum shipping efficiency.
  • Upgradeable for high XPD performance.

The GD Satcom 1385 3.8M Tx/Rx Antenna has been designed to provide a reliable, long-life and trouble free antenna solution for demanding applications in the primary VSAT communications bands. Enhancements to this antenna design have improved the structural stability and surface tolerances of the reflector, offering growth potential for reliable communications up to Ka-band.

The antenna has been designed to meet the performance requirements of the major satellite service providers and regulatory agencies.

The mechanical design has been optimized for high efficiency packaging to reduce shipping costs. Material selections for the reflector significantly reduce the risk for shipping damage when compared to metal reflector solutions. Factory pre-assembly of critical components eliminates the requirement for complex assembly procedures in the field.

Electrical Specifications for C-Band Linear
Antenna Size 3.8M
Operating Frequency
  Rx
  Tx

3.625 - 4.20 GHz
5.845 - 6.425 GHz
Midband Gain ( ± 0.5 dB)
  Rx
  Tx

41.80 dBi
46.30 dBi
VSWR
    Rx
    Tx

1.3:1 max (<-17.7 dB)
1.3:1 max (<-17.7 dB)
Pattern Beamwidth (in degrees at midband)
    -3 dB
      Rx
      Tx
    -15 dB
      Rx
      Tx


1.40 deg
0.9 deg

3.2 deg
2.0 deg
Sidelobe Performance
    1°≤θ≤20°
    20°<θ≤26.3°
    26.3°<θ≤48°
    48°≤θ<180°

29-25 log (θ)
-3.5 dBi
32-35 log (θ)
≤-10 dBi averaged
Antenna Noise Temperature
    5° Elevation
    10° Elevation
    20° Elevation
    40° Elevation

62 K
52 K
45 K
43 K
Power Handling 1 kW
Cross Polarization Isolation
    On Axis
      Rx
      Tx
    Within 1.0 dB Beamwidth
      Rx
      Tx


>15 dB
>17.7 dB

>15 dB
>17.7 dB
Output Waveguide Interface Rx: CPR 229 F
Tx: CPR 137 or N-Type
Mechanical Performance
Reflector Material Glass Fiber Reinforced SMC
Antenna Optics Easy-to-assemble, 4 Pc., Offset Fed Prime Focus Design
with 0.6 F/D optics.
Mast Pipe Size 10" SCH 40 Pipe (10.75" OD) 27.3 cm.
Elevation Adjustment Range 12° to 90° or 0° to 15° for Polar Latitudes
Azimuth Adjustment Range 360° Continuous with +/-35° Fine Adjustment
Shipping Specifications
    Approximate Net Weight
    Approximate Packaged Weight

Weight (nominal) 1125 lbs. (511 Kg).
Weight (nominal) 1882 lbs., (855 Kg).
Environmental Performance
Wind Loading
    Operational
    Survival

50 MPH (80 km/h)
125 mph (201 km/h)
Temperature Range (operational) -40° to 140°F (-40° to 60°C)
Rain (operational) ½" (13mm) per hour
Ice (operational) --------------------
Atmospheric Conditions Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas
Relative Humidity 0 to 100% Condensing
Solar Radiation 360 BTU/h/ft²
