2.4M Ku-Band Antenna

GD Satcom 1241 Series 2.4M Ku-Band Tx/Rx Linear Cross Pol Antenna System Plate style Feed/OMT mount brackets 5.25” height (4.75" Clearance) and metric BUC / Waveguide hardware included Feed Support Feed horn and OMT/TRF Reflector: Offset Feed, 4-Piece 0.8 f/d...

  • Category: All Products, Antennas, General Dynamics Satcom, Ku-Band Tx/Rx Antennas

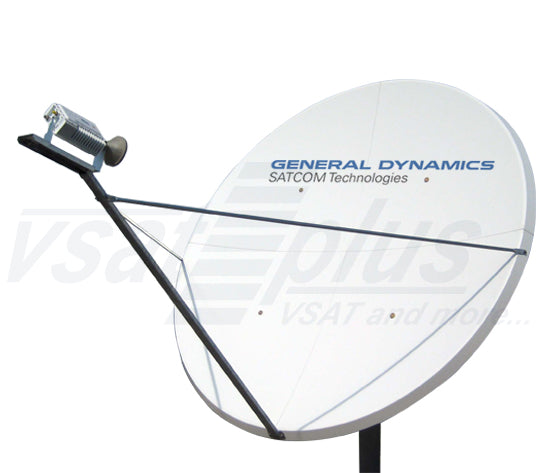

GD Satcom 1241 Series 2.4M Ku-Band Tx/Rx Linear Cross Pol Antenna System

  • Plate style Feed/OMT mount brackets 5.25” height (4.75" Clearance) and metric BUC / Waveguide hardware included
  • Feed Support
  • Feed horn and OMT/TRF
  • Reflector: Offset Feed, 4-Piece 0.8 f/d Glass Fiber Reinforced Polyester SMC
  • Mount Type: Azimuth over Elevation
  • 5º to 90º Fine Elevation adjust and +/- 10º Fine Azimuth Adjustment
  • Mast Pipe Requirement: 6” Schedule 40 mast pipe ( 6.63” OD )
  • (Order Optional Feed Stabilizer separately 0800-1469)
  • (ETSI) INTELSAT approvals

GD Satcom is the world's largest manufacturer of Rx/Tx VSAT antennas. We have the broadest product line in the industry including Receive Only, Rx/Tx and Rural Telephony antenna systems. GD Satcom offers nineteen antenna sizes, 47cm to 4.5M. GD Satcom is the leader in obtaining type certifications and approvals for Intelsat, AsiaSat and Eutelsat. GD Satcom antennas provide the best quality in the market due to the sophisticated, precision SMC compression molding process technology. GD Satcom provides the best value antenna solution to the market with competitive prices, the highest quality products and superb engineering support.

Features

    • Precision Compression molded offset reflector
    • Non-penetrating roof mounts and king posts available
    • Interface kits for all C & Ku-Band RF heads in stock
    • Reflector/Feed electrical anti-icing available
    Electrical
    Antenna Size 2.4M (96 in.)
    Operating Frequency (GHz)
        Transmit
        Receive

    13.75 - 14.50 GHz
    10.70 - 12.75 GHz
    Antenna Gain at Midband, dBi (± .2dB)
        Transmit
        Receive

    47.40 dBi
    49.20 dBi
    VSWR
        Transmit
        Receive

    1.3:1 Max
    1.5:1 Max
    Pattern Beamwidth (in degrees at midband)
        -3 dB
        -15 dB

    Rx: 0.70° Tx: 0.60°
    Rx: 1.60° Tx: 1.40°
    Sidelobe Envelope, Co-Pol (dBi)
        100λ / D < θ ≤ 20°
        20° < θ ≤ 26.3°
        26.3° < θ ≤ 48°
        θ > 48°

    29 - 25 Logθ dBi
    -3.5 dBi
    32 - 25 Logθ dBi
    -10 dBi (averaged)
    Antenna Noise Temperature
        10° Elevation
        20° Elevation
        30° Elevation
        40° Elevation

    85 K
    78 K
    73 K
    70 K
    Cross Polarization Isolation (Linear) On Axis
        Transmit
        Receive

    >30 dB
    >35 dB
    Feed Interface
        Transmit
        Receive

    WR 75 or Direct Radio Mounting
    Maximum Radio Weight 12 Lbs. (5.5 Kg.)
    (Optional Feed Stabilizer available for higher radio weight)
    Mechanical
    Reflector Material Glass Fiber Reinforced Polyester SMC
    Antenna Optics Prime Focus, Offset Feed, Four-piece
    Mast Pipe Size 6” SCH 40 Pipe (6.63” OD) 16.83 cm.
    Elevation Adjustment Range 5°to 90°Continuous Fine Adjustment
    Azimuth Adjustment Range 360°Continuous, +/- 10°Fine Adjustment
    Mount Type Elevation over Azimuth
    Shipping Weight (Total) 545 lbs. (248 kg.)
    Install (Net) Weight 365 lbs. (166 kg.)
    Environmental Performance
    Wind Loading
        Operational
        Survival

    50 mph (80 km/h)
    125 mph (201 km/h)
    Temperature Range (operational) -40°to 140°F (-40°to 60°C)
    Rain (operational) 1/2” (13mm) / hr
    Atmospheric Conditions Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas
    Relative Humidity 0 to 100% With Condensation
    Solar Radiation 360 BTU/h/ft²
