General Dynamics Satcom Technologies 1184-475 1.8M C-Band Tx/Rx Antenna System

1 In stock

1.8m C-Band Antenna

General Dynamics Satcoms

93.0 kg93.0 kg

1184-475 1.8M C-BAND TX/RX ANTENNAGD Satcom is the world's largest manufacturer of Rx/Tx VSAT antennas. We have the broadest product line in the industry including Receive Only, Rx/Tx and Rural Telephony antenna systems. GD Satcom offers nineteen antenna sizes, 47cm to 4.5M. GD Satcom is the leader in obtaining type...
Polarization *
-
+
USD 1,150.00
USD 1,150.00
Add to wishlist

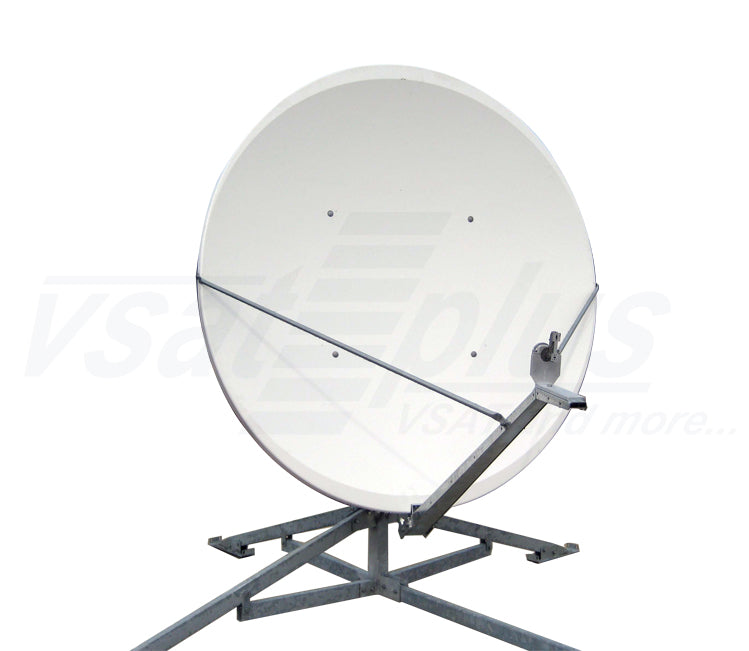

1184-475 1.8M C-BAND TX/RX ANTENNA

GD Satcom is the world's largest manufacturer of Rx/Tx VSAT antennas. We have the broadest product line in the industry including Receive Only, Rx/Tx and Rural Telephony antenna systems. GD Satcom offers nineteen antenna sizes, 47cm to 4.5M. GD Satcom is the leader in obtaining type certifications and approvals for Intelsat, AsiaSat and Eutelsat. GD Satcom antennas provide the best quality in the market due to the sophisticated, precision SMC compression molding process technology. GD Satcom provides the best value antenna solution to the market with competitive prices, the highest quality products and superb engineering support.



FEATURES

  • Precision Compression molded offset reflector
  • Intelsat approvals: C-Band #IA010C00
  • Non-penetrating roof mounts and king posts available
  • Interface kits for all C & Ku-Band RF heads in stock
  • Two axis tracking configuration available
  • Reflector/Feed electrical anti-icing available
  • Insat extended C-Band available
  • Polarization: Linear Cross Pol
  • Feed Interface: CPR137 Waveguide Flange
  • Mount Type: Elevation over Azimuth
  • Reflector: Prime Focus, One-Piece Offset Feed, Glass Fiber Reinforced Polyester SMC
  • Tx Operating Frequency: 5.850 - 6.425 GHz
  • Rx Operating Frequency: 3.625 - 4.2 GHza
Electrical Specifications
Antenna Size 1.8M (71 in.)
Operating Frequency
  Rx
  Tx

3.625 - 4.2 GHz
5.850 - 6.425 GHz
Midband Gain ( ± 0.2 dB)
  Rx
  Tx

35.5 dBi
39.5 dBi
Antenna Noise Temp. (Circular)
  10° elevation
  20° elevation
  30° elevation
  40° elevation


30 K
23 K
21 K
20 K
Antenna Noise Temp. (Linear)
  10° elevation
  20° elevation
  30° elevation
  40° elevation


56 K
49 K
47 K
46 K
Cross-Polarization (linear) -30 dB on axis
Sidelobe Envelope, Co-Pol
  Mainbeam < θ <7°
  7° < θ < 9.2°
  9.2° < θ < 48°
  48° < θ < 180°

29-25 Log θ dBi
+8 dBi
32-25 Log θ dBi
-10 dBi (averaged)
VSWR 1.3:1 Max
Axial Ratio (Circular)
  Rx
  Tx

2.28
1.60
Feed Interface
  Rx
  Tx

CPR 229 F
CPR 137 or Type N
Mechanical Specifications
Reflector Material Glass Fiber Reinforced Polyester SMC
Antenna Optics Prime Focus, One-Piece Offset Feed
Mast Pipe Size 3.5" Schedule 40 Pipe (4.00" OD) 10.16cm.
Elevation Adjustment Range 5° to 90°, Continuous Fine Adjustment
Mount Type Elevation over Azimuth
Azimuth Adjustment Range ±45° fine, 360° Continuous
Shipping Specifications 225 lbs. (103 Kg.)
Environmental Performance
Wind Loading Operational : 50 mph (80 km/h)
Survival: 125 mph (201 km/h)
Temperature Operational: -40° to 140° F (-40° to 60° C)
Survival -50° to 160° F (-46° to 71° C)
Atmospheric Conditions Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas
Rain
  Operational
  Survival

1/2" per hour
2" per hour
Solar Radiation 360 BTU/h/ft2
