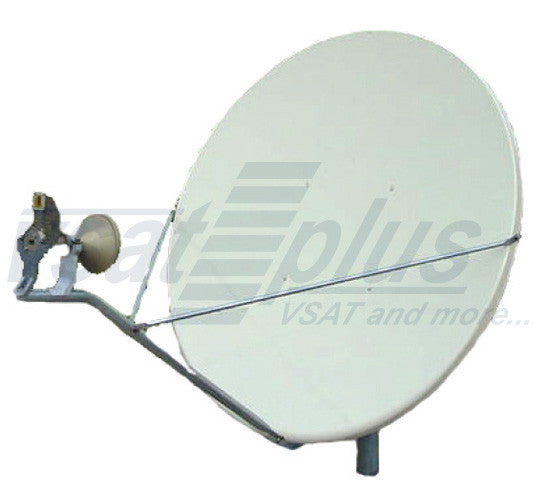

GD Satcom 1132 Series 1.2m Ku-Band Tx/Rx Antenna System

  • Polarization: Linear Cross Pol
  • Feed Interface: WR75 Waveguide Flange
  • Reflector: Prime Focus, Offset Feed, .8 f/D, Glass Fiber Reinforced Polyester SMC
  • Tx Operating Frequency: 13.75 - 14.5 GHz
  • Rx Operating Frequency: 10.95 - 12.75 GHz
  • w/OMT/TRF, Tier 2 Feed Support

 GD Satcom is the world's largest manufacturer of Rx/Tx VSAT antennas. GD Satcom is the leader in obtaining type certifications and approvals for Intelsat, AsiaSat and Eutelsat. GD Satcom antennas provide the best quality in the market due to the sophisticated, precision SMC compression molding process technology. GD Satcom provides the best value antenna solution to the market with competitive prices, the highest quality products and superb engineering support.

Electrical
Antenna Size 1.2m (47.00")
Operating Frequency (GHz)
    Receive
    Transmit

10.95 - 12.75 GHz
13.75 - 14.50 GHz
Midband Gain (±.2dB)
    Receive
    Transmit

41.70 dBi
43.20 dBi
Antenna noise Temp
    20° El
      Receive
      Transmit
    30° El
      Receive
      Transmit

46K
46K

43K
43K
Cross-Pol
    Within BPE
    Any Angle off Axis

-30 dB max
-25 dB max
Sidelobe Envelope, Co-pol
    1°≤θ≤20°
    20°<θ≤26.3°
    26.3°<θ≤48°
    48°<θ

29 - 25 Log θ dBi
-3.5 dBi
32 - 25 Log θ dBi
-10 dBi (averaged)
VSWR
    Receive
    Transmit

1.3:1 Max
1.3:1 Max
Mechanical
Reflector Material Glass Fiber Reinforced Polyester SMC
Antenna Optics Prime Focus, Offset Feed
Mast Pipe Size 2.50" Sch 40 Pipe (2.88" o.d.) 73.2 mm
(72mm min., 74mm max.)
Azimuth Adjustment Range 360° Cont. Coarse Adj., ±20° Fine Adj.
Elevation Adjustment Range 5° - 90° Continuous Fine Adjust
Polarization Adjustment Range ±90° Continuous Coarse Adj.
ODU
    Tier 1
    Tier 2

6 lbs.
12 lbs.
Shipping Specifications Weight 90 lbs. (41 kg.)
Environmental
Wind Loading
    Operational
    Survival

50 mph (80 km/h)
125 mph (201 km/h)
Temperature
    Operational
    Survival

-40° to 140° F (-40° to 60° C)
-50° to 160° F (-46° to 71° C)
Rain
    Operational
    Survival

1/2" / hour
2" / hour
Ice Survival ½" Radial
Atmospheric Conditions Salt, Pollutants and Contaminants as Encountered in Coastal Industrial Areas
Solar Radiation 360 BTU/h/ft²
