EXPLORER 325 BGAN Terminal

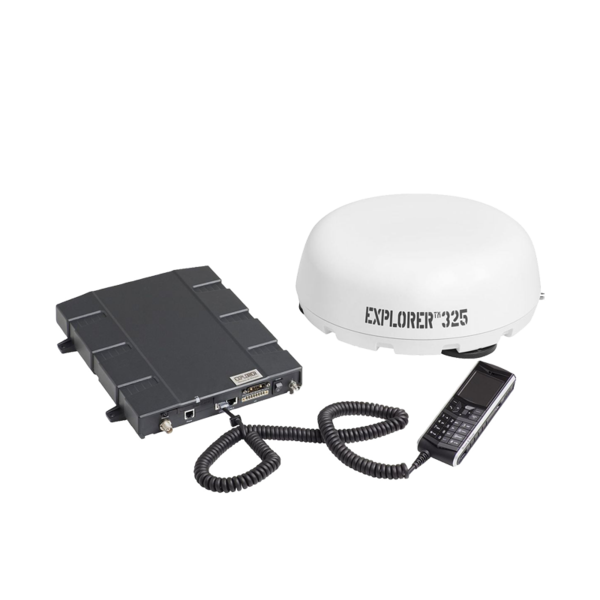

EXPLORER 325 is a compact BGAN system for on-the-move communication. The system consists of three fully integrated units – a transceiver, an IP handset and a roof mountable antenna with magnetic mounts. Whether engaged in humanitarian operations, cargo transportation, broadcasts or telemedicine, easy deployable communication equipment are demanded and the EXPLORER 325 system comply with these demands.

 Package Contents:

  1. Fully Integrated Auto-Tracking Antenna
    1. Color: White
    2. Built-in magnetic mounts for antenna mounting
  2. EXPLORER Land Vehicular Transceiver.
    1. Standard Ethernet Cable (2m/6.6ft)
    2. Getting started kit - Quick Start Guide, CD with manuals
    3. 12/24VDC Input Cable
    4. Antenna Cable, Coax w/ TNC connector (2.7m/8.8ft)
  3. Thrane IP handset wired with Cradle and Coiled Cable.

Instant access

With EXPLORER 325 BGAN terminal you are able to connect to the world via voice or data over Inmarsat BGAN instantly, even when your vehicle is moving.

Communicating on-the-move ensures your ability to get the job done and with EXPLORER 325, you are never out of touch, even if you're travelling at up to 200km/h.

Fast Connection

It enables BGAN data speeds up to 384kbps standard IP and up to 128kbps streaming, and operation down to 5° elevation even when moving at speed across rough ground.

Benefit from a fast connection and the confidence that it won't be interrupted when traveling through harsh environments.

Easy to Deploy

EXPLORER 325 is so easy to deploy - just place the antenna on the roof of your vehicle, connect it and your PC to the terminal and you have a mobile communication hub.

You can virtually be in your office in no time at all. Access VPN, catch up on email, browse the web; with fixed pricing and no roaming fees when you cross borders.

Compact Form

At 35cm in diameter, 12cm high and weighing just 3.6kg, EXPLORER 325 has the smallest available vehicular BGAN antenna on the market.

The compact size and price-point of EXPLORER 325 opens up new applications for on-the-move communication, including trains and trucks.



Data transfer
  • Voice: 4 kbps AMBE +2
  • Standard IP up to 384 kbps
  • Streaming IP 32, 64, 128 kbps
  • SMS 160 characters

Interfaces

  • 2 x 10/100 Mbit/s Ethernet RJ45 PoE
  • 1 x RJ-11 phone- / fax, (built-in PBX)
  • 5 x I/O interfaces
  • Antenna
    Terminal TNC female
    Antenne TNC female

Power supply

  • DC input 10,5 - 32 V
  • Consumption at 10 - 32 V (incl. antenna)
    120W / 12V
    150W / 24 V

Dimensions and weight

  • Weight
    Terminal  2.4 kg
    Antenna  4.5 kg

  • Dimensions
    Terminal    278 x 231 x 41 mm
    Antenna          ∅ 350 x 120 mm

Environment

  • Ingress protection
    Terminal  IP31
    IP handset IP54
    Antenna  IP 56
  • Operating temp.     -25 to +55°C
  • Storage temp.        -40 to +85°C
  • Humidity max.        95% non condensating at 40°C
