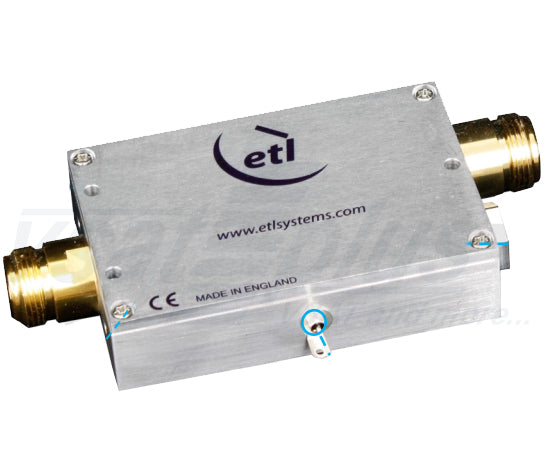

ETL System TEEL1-4007 L-band Bias TEE module with 10MHz pass

ETL System TEEL1-4007 L-band Bias TEE module with 10MHz pass

Bias Tee

L-band Bias TEE module with 10MHz pass and typical 40dB isolation (DC port to RF port). Max DC rating 28V, 7A for N-type, 5A for BNC 50Ω BNC 75 Ω. 3A Max for F-type 75 Ω and SMA 50 Ω....

  • Category: Accessories, All Products, Featured products

L-band Bias TEE module with 10MHz pass and typical 40dB isolation (DC port to RF port). Max DC rating 28V, 7A for N-type, 5A for BNC 50Ω BNC 75 Ω. 3A Max for F-type 75 Ω and SMA 50 Ω.

Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test and instrumentation and radar networks.

Model No. TEEL1-4007-XXXX
Frequency Range 850 - 2150MHz
RF Connectors 75Ω F-Type
Mean Insertion Loss (dB) 0.3± 0.2
Flatness ± (dB) 0.5
Input Return Loss (dB) Typ. 18
Min 12
Output Return Loss (dB) Typ. 18
Min 12
10MHz Insertion loss is ± 3dB*
10MHz Rejection is 20dB*
*To ports which are applicable
Environmental
Operating Temperature 0˚C to +45˚C
Storage Temperature -20˚C to +75˚C
Location Indoor use Only
Humidity 85% non-condensing
Altitude 10,000 feet

Input RF Power +37 dBm (5W)
DC Voltage 28V on any RF port
DC Current 5.0A
