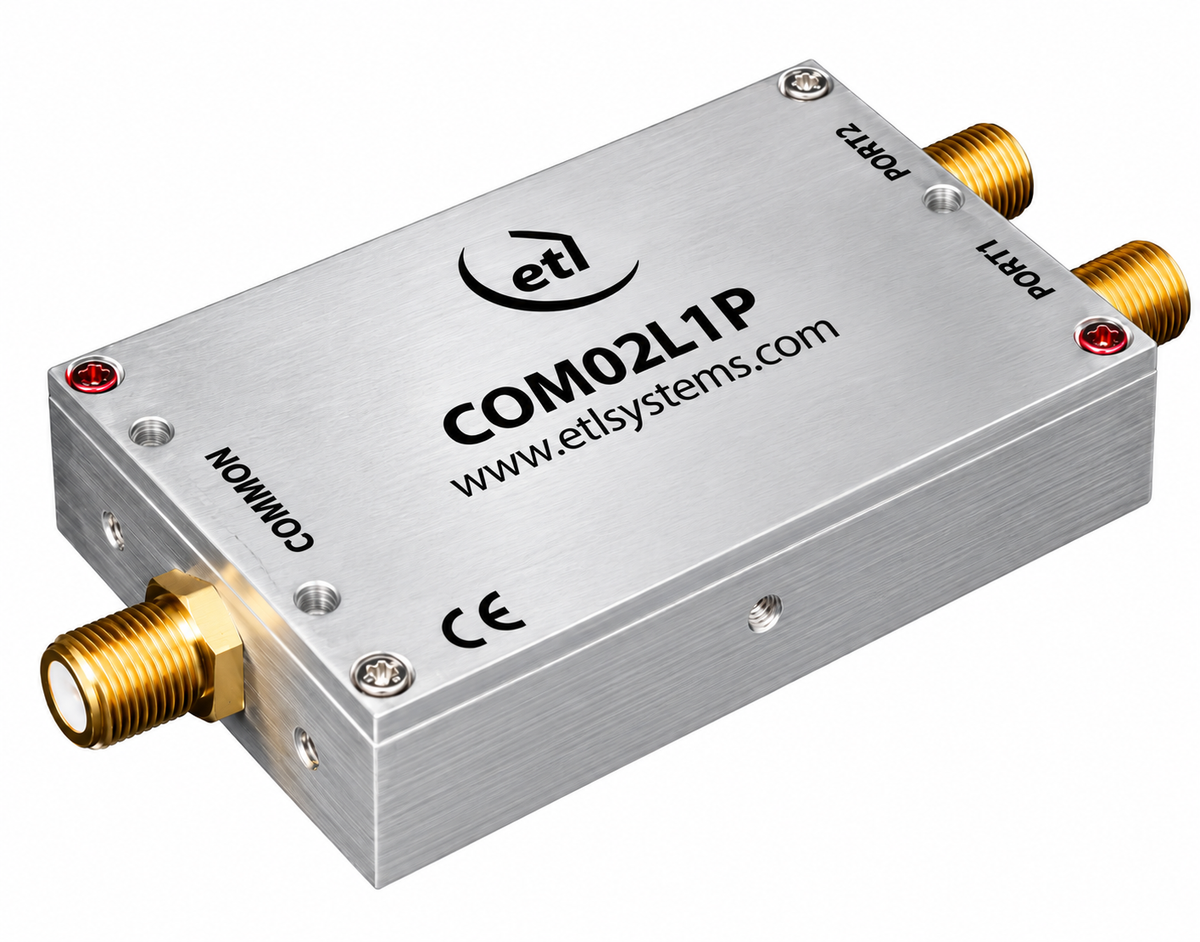

ETL System 2-way L-Band Passive Splitter/Combiner - COM02L1P-2502-F7F7

ETL System 2-way L-Band Passive Splitter/Combiner - COM02L1P-2502-F7F7

Splitter/Combiner

The COM02L1P-2502-F7F7 from ETL Systems is a Power Divider with Frequency 850 MHz to 2.15 GHz, Insertion Loss 0.4 dB, Isolation 20 to 25 dB, Input Power 0.5 to 5.01 W, Amplitude Balance 0.5 dB. Tags: Module with Connectors. More...

  • Category: All Products, RF Combiner/Splitter

The COM02L1P-2502-F7F7 from ETL Systems is a Power Divider with Frequency 850 MHz to 2.15 GHz, Insertion Loss 0.4 dB, Isolation 20 to 25 dB, Input Power 0.5 to 5.01 W, Amplitude Balance 0.5 dB. Tags: Module with Connectors. More details for COM02L1P-2502-F7F7 can be seen below.

Product Details

  • Part Number :
    COM02L1P-2502-F7F7
  • Manufacturer :
    ETL Systems
  • Description :
    2 Way L-Band Passive Splitter/Combiner from 850 to 2150 MHz

General Parameters

  • Configuration :
    2 Way
  • Applications :
    L Band, SATCOM, Test & Measurement
  • Frequency :
    850 MHz to 2.15 GHz
  • Insertion Loss :
    0.4 dB
  • Isolation :
    20 to 25 dB
  • Input Power :
    0.5 to 5.01 W
  • Amplitude Balance :
    0.5 dB
  • Phase Balance :
    5 Degree
  • Impedance :
    75 Ohms
  • Return Loss :
    16 to 20 dB(Input), 18 to 26 dB (Output)
  • Return Loss Input :
    16 to 20 dB
  • Return Loss Output :
    18 to 26 dB
  • Package Type :
    Module with Connectors
  • Connector :
    F Type
  • Grade :
    Commercial, Military, Space
  • RoHS :
    Yes
  • Storage Temperature :
    -20 to 75 Degree C
  • Operating Temperature :
    0 to 45 Degree C
  • Note :
    Flatness : 0.25 dB, current : 500 mA
