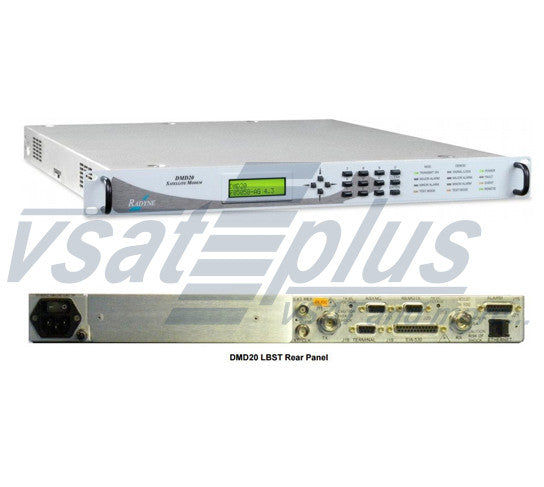

Comtech EF Data DMD20 LBST L-Band Satellite Modem

Not Specified

L-Band Modems

Comtech EF Data

DMD20 LBST FEATURES DoubleTalk Carrier-in-Carrier bandwidth compression Web browser interface FSK M&C channel for smart BUCs Integrated 10 MHz high-stability reference Programmable 13, 15, 18, or 20 VDC for LNB Optional 24 or 48 VDC for up to 10 W BUC 950 to 2050 MHz L-Band TX/RX operation BPSK/QPSK/OQPSK/8-PSK/8-QAM/16-QAM operation...
-
+
USD 4,300.00 from USD 2,970.00
USD 2,970.00
Add to wishlist

DMD20 LBST FEATURES

  • DoubleTalk Carrier-in-Carrier bandwidth compression
  • Web browser interface
  • FSK M&C channel for smart BUCs
  • Integrated 10 MHz high-stability reference
  • Programmable 13, 15, 18, or 20 VDC for LNB
  • Optional 24 or 48 VDC for up to 10 W BUC
  • 950 to 2050 MHz L-Band TX/RX operation
  • BPSK/QPSK/OQPSK/8-PSK/8-QAM/16-QAM operation
  • 2.4 kbps to 20 Mbps, 1 bps steps
  • Configuration, monitor and control features full user-programmable
  • FEC - Viterbi, Reed-Solomon, Sequential, Trellis, TPC, Low Density Parity Check Code (LDPC)
  • Excellent spurious performance
  • Fully compliant with IESS-308/309/310/314/315
  • Optional DVB to EN301-210 and EN300-421
  • Industry-standard universal interface module
  • Standard features include: Reed-Solomon, Asynchronous Overhead, automatic uplink power control and CM701 compatible satellite control channel

Modulator
Modulation BPSK, QPSK, and OQPSK (8PSK, 16QAM Optional)
L-Band Tuning Range 950 to 2050 MHz in 1 Hz Steps
Impedance 50 Ohm
Connector Female Type N
Return Loss 10 dB Minimum
Output Power 0 to -25 dBm
Output Accuracy ±1.0 dB Over Frequency and Temperature
Output Spectrum Meets IESS 308/309/310 Power Spectral Mask (DVB-S optional)
Spurious
    In-Band
    Out-of-Band

-55 dBc
-45 dBc
Harmonics -45 dBc
On/Off Power Ratio >60 dB
Scrambler CCITT V.35 or IBS (Others Optional)
FEC
Viterbi, K=7 at 1/2, 3/4 and 7/8
Trellis 2/3
Turbo Product Code (Optional) Per IESS 315
BPSK 21/44
QPSK/OQPSK 1/2, 3/4, 7/8
8PSK/16QAM 3/4, 7/8
Legacy Turbo Rates: 0.495, 0.793
Outer Encoder Options Reed-Solomon INTELSAT (DVB Optional)
Custom (N,K) Reed-Solomon (Optional)
Data Clock Source Internal, External, Rx Recovered
Internal Stability 5 x 10-8
BUC DC Voltage BUC 24 V@4 A Maximum
BUC 48 V (Optional)
BUC Reference 10 MHz, 3 dBm ± 3 dB
BUC FSK 710/590 KHz Nominal (Optional)
Demodulator
Demodulation BPSK, QPSK, and OQPSK (8PSK, 16QAM Optional)
L-Band Tuning Range 950 to 2050 MHz in 1 Hz Steps
Impedance 50 Ohm
Connector Type N Female
Return Loss 10 dB Minimum
Spectrum INTELSAT IESS 308/309/310 Compliant (DVB-S optional)
Input Level 10 x log (Symbol Rate) - 100, ±12dBm
Total Input Power -10 dBm or +40 dBc (the lesser) @ 64 Kbps, Symbol Rate Dependent
FEC
Viterbi, K=7 at 1/2, 3/4 and 7/8 Rate,
Rate Sequential 1/2, 3/4, 7/8 (Optional),
Trellis 2/3,
Turbo Product Code (Optional) Per IESS 315,
BPSK 21/44,
Custom (N,K) Reed-Solomon,
QPSK/OQPSK 1/2, 3/4, 7/8,
8PSK/16QAM 3/4, 7/8,
Legacy Turbo Rates: 0.495, 0.793,
Decoder Options Reed-Solomon INTELSAT (DVB-S Optional)
Descrambler CCITT V.35 or IBS (Others Optional)
Acquisition Range Programmable ±1 kHz to ± 255 kHz
Sweep Delay Value 100 msec to 6000 sec. in 100 msec Steps
LNB Reference 10 MHz, 3 dBm ± 3 dB
LNB DC Voltage 13, 15, 18, 20 VDC (750 mA Maximum), Programmable
Plesiochronous Buffer
Size 0 ms to 64 msec
Centering Automatic on Underflow or Overflow
Centering Modes IBS: Integral Number of Frames
IDR: Integral Number of Multi Frames
Clock Transmit, External, Rx Recovered or SCT (Internal)
Monitor and Control
Remote RS-485/Terminal RS-232/Ethernet 10 Base-T, Web Browser
FSK CODAN/TERRASAT Smart BUCs
DMD20 LBST Drop and Insert (Optional)
Terrestrial Data 1.544 Mbps or 2.048 Mbps, G.732/733
Line Coding AMI or B8ZS for T1 and HDB3 for E1
Framing D4, ESF and PCM30 (PCM 30C) or PCM31 (PCM 31C) for E1
Time Slot Selection n x 64 Contiguous or Arbitrary Blocks for Drop or Insert
EFFICIENT D&I Closed Network, Satellite Overhead 0.4%
Time Slots 1-31 Any Combination
Terrestrial Interfaces
DVB ASI/SPI, HSSI, Ethernet 4 Port 10/100 Base-T,
HSSI/Ethernet 4 Port 10/100 Base-T, HSSI/G703 T1/E1/T2/E2
DoubleTalk Carrier-in-Carrier
Delay Range 0 to 300 ms
Power Spectral Density Ratio (Interferer to Desired) BSPK/OQPSK/QPSK/8-PSK/8-QAM: -7 dB to +10 dB 16-QAM: -7 dB to +7 dB
Maximum Symbol Rate Ratio 3:1 (TX:RX or RX:TX)
Eb/No Degradation 0 dB Power spectral density ratio
BPSK/QPSK/OQPSK: 0.6 dB
8-QAM: 0.7 dB
8-PSK: 0.8 dB
16-QAM: 0.9 dB
Satellite Restrictions Satellite in “loop-back” mode (i.e., the transmit station can receive itself)
“Non-processing” satellite (i.e., does not demodulate or remodulate the signal)
IDR/ESC Interface (Optional)
G.703 T1 (DSX1) 1.544 Mbps, 100 Ohm Balanced, AMI and B8ZS Line Codes
G.703 E1 2.048 Mbps, 75 Ohm Unbalanced and 120 Ohm Balanced, HDB3
G.703 T2 (DSX2) 6.312 Mbps, 75 Ohm Unbalanced, B8ZS Line Code and 110 Ohm Balanced, B6ZS Line Code
G.703 E2 8.448 Mbps, 75 Ohm BNC, Unbalanced, HDB3 Line Code
IBS/Synchronous Interface (Standard)
RS-422/-530 All Rates, Differential, Clock/Data, DCE
ITU V.35 All Rates, Differential, Clock/Data, DCE
RS-232 (DCE up to 200 Kbps)
Environmental
Prime Power 100 to 240 VAC, 50 to 60 Hz, 150 Watts Maximum with 10 W BUC
Operating Temperature 0 to 50° C, 95% Humidity, Non-Condensing
Storage Temperature -20 to 70°C, 99% Humidity, Non-Condensing
Physical
Size 19”W x 19.25”D x 1.75”H
(48.26 x 48.89 x 4.45 cm)
Weight 8.5 pounds (3.83 kg)
