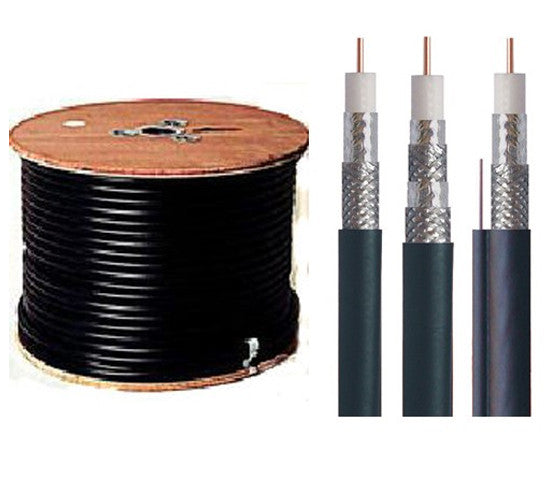

COMMSCOPE RG-11 SAT 1160.BV COAXIAL CABLE 305M/REEL Coaxial RG-11 75 Ohm Low Loss is only 3.65 dB / 100 ft at 750Mhz frequency. Can be used to connect a very long cable TV antenna but does not match the standard TV...

  • Category: Accessories, All Products, Commscope, Installation Accessories

COMMSCOPE RG-11 SAT 1160.BV COAXIAL CABLE 305M/REEL

Coaxial RG-11 75 Ohm Low Loss is only 3.65 dB / 100 ft at 750Mhz frequency. Can be used to connect a very long cable TV antenna but does not match the standard TV antenna connector because the cable core and the cable layer is very thick. Can be connected with RG-6 or RG-59 cable to get into the standard TV connector. Very good for transmitter or amateur radio with 75 Ohm impedance because the loss is very low.

BONDED LAMINATED ALUMINUM TAPE, 60% BRAID, AMORPHOUS

POLYPROPYLENE FLOODING COMPOUND, PVC JACKET



CENTER CONDUCTOR:

18 AWG HARD DRAWN COPPER



NOMINAL DIAMETER: 0.040” (1.02 mm)



DIELECTRIC:

GAS EXPANDED POLYETHYLENE



NOMINAL DIAMETER OVER DIELECTRIC: 0.180” (4.57 mm)



SHIELD:

1ST SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC NOMINAL DIAMETER OVER TAPE: 0.187” (4.75 mm)



2nd SHIELD: 34 AWG ALUMINUM BRAID WIRE 60% COVERAGE



JACKET:

PVC JACKET

NOMINAL DIAMETER OVER JACKET:

0.272” (6.91 mm)

NOMINAL JACKET THICKNESS:

0.030” (0.76 mm)



CORROSION RESISTANT TREATMENT:

AMORPHOUS POLYPROPYLENE FLOODING COMPOUND



ELECTRICAL PROPERTIES:

IMPEDANCE:

75.0 +/- 3.0 Ohms

VELOCITY OF PROPAGATION:

85.0% NOMINAL

STRUCTURAL RETURN LOSS:

5 MHz TO 1000 MHz _ 20 dB
1000 MHz TO 3000 MHz _ 15 dB

NOMINAL DC RESISTANCE (Ohms/km):

CENTER CONDUCTOR: 21.5
OUTER CONDUCTOR: 34.4

ATTENUATION @ 68°F (20°C):



Frequency

dB/100 feet Nominal

dB/100 meters Nominal

5 MHz

0.58

1.90

55 MHz

1.60

5.25

83 MHz

1.95

6.40

187 MHz

2.85

9.35

211 MHz

3.05

10.01

250 MHz

3.30

10.82

300 MHz

3.55

11.64

350 MHz

3.85

12.63

400 MHz

4.15

13.61

450 MHz

4.40

14.44

500 MHz

4.66

15.29

550 MHz

4.90

16.08

600 MHz

5.10

16.73

750 MHz

5.65

18.54

865 MHz

6.10

20.01

1000 MHz

6.55

21.49

1200 MHz

7.17

23.52

1450 MHz

7.87

25.82

1800 MHz

8.77

28.77

2200 MHz

9.68

31.75

2400 MHz

10.10

33.14

2800 MHz

10.90

35.76

3000 MHz

11.28

37.01
