Belcom Model A1007 Power Supply

Belcom Model A1007 Power Supply

48V Power Supply

FEATURES Inserts DC Power and 10MHz reference 19" 2RU unit Modular with many options Front panel indicators BELCOM MODEL A1007 POWER SUPPLY The Belcom Microwaves A1007 Power Inserter is a 2U 19” unit that insert DC power and 10MHz reference...

USD 675.00
  • Category: All Products, Belcom Microwave, Power Supply

FEATURES

  • Inserts DC Power and 10MHz reference
  • 19" 2RU unit
  • Modular with many options

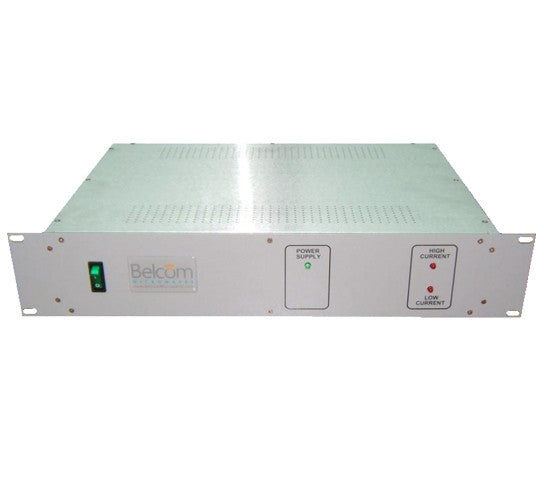

  • Front panel indicators

BELCOM MODEL A1007 POWER SUPPLY

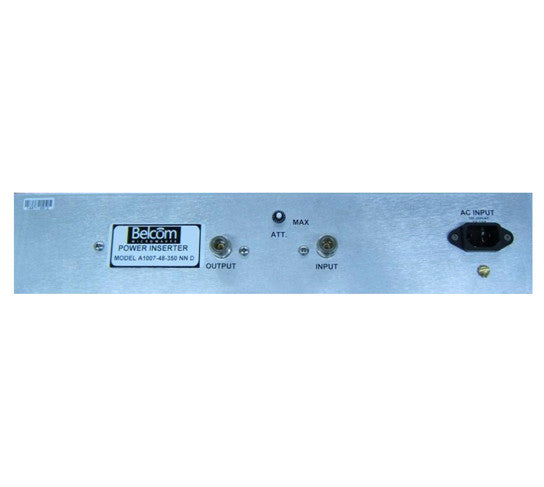

The Belcom Microwaves A1007 Power Inserter is a 2U 19” unit that insert DC power and 10MHz reference signal (Optional) to the signal coming from the MODEM to the BUC or other external unit.The Power Inserter is an excellent solution in every case when the internal power supply in the modem is too small for the BUC, or when the modem can not supply the 10 MHz reference signal.The A1007 is a modular product with many options (Factory set) that give a solution to most of the requirements.The front panel indications monitors the following parameters:
  • Low Output Voltage (21V or 46V for the 24V and 48V power supply respectively)
  • Low Output Current (Below 0.8 A)
  • High Output Current (6A or 3A for the 24V and 48V power supply respectively)

SUMMARY OF OPTIONS

A1007 BLOCK DIAGRAM

Electrical Parameters
IF Frequency Range 950-1550 MHz
Ref. Frequency 10 MHz
IF Insertion Loss 1.2 dB
10 MHz Ref. Insertion Loss 3 dB
Power Supply 24/48V (Factory set) 350 W (Other power levels- Optional)
AC Input Voltage 90-230V
Temperature Range
    Operating
    Storage

-10°C - 50°C
-30°C - 70°C
Relative Humidity 95%
