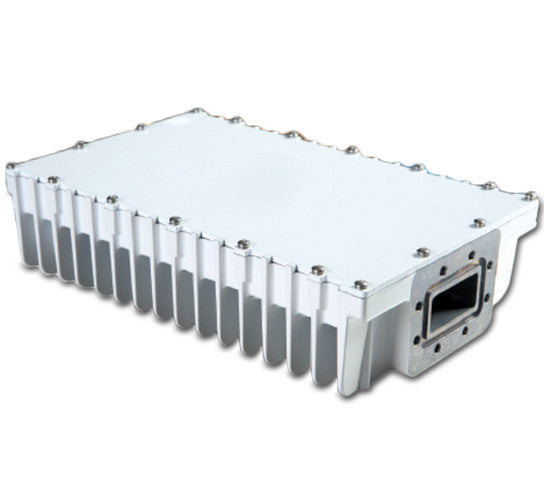

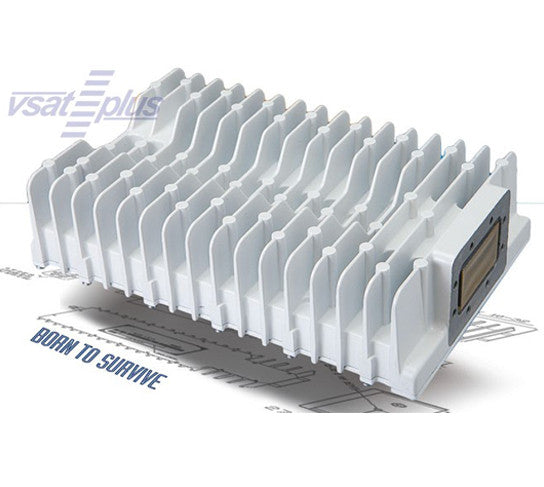

Belcom mBLPA-8 Spark Series 8W Palapa C-Band BUC

Belcom mBLPA-8 Spark Series 8W Palapa C-Band BUC

Request for a quote

SKU: mBLPA-8

FEATURES

  • Available in Palapa Low-Band
  • Output power: 8W
  • Complete 2-years Warranty plan
  • Guaranteed 21-day repair cycle
  • Low power consumption
  • Lightweight: 2.20 Kg

Belcom’s SPARK series of low power BUCs have been trusted by the world's largest VSAT companies for over 20 years and
has a proven reputation for reliability Built to be robust and reliable, SPARK BUCs are rugged enough to withstand extreme outdoor conditions. Belcom’s high-level development experience and its large volume manufacturing capabilities, provide clients with unmatched cost savings.

SPARK products are covered by a full two-year warranty and are backed by a dedicated service team that ensures a full
repair cycle within no more than 21 days.

LINE UP

Model

Output Freq. Band

(GHz)

L.O Freq.

Output Power (W)

Min. over Temp

DC Power Consumption (W)

Weight (Kg)

IF Conn.

mBLPA-8-F

6.365-6.725

5290

8

54

 2.2

   F

mBLPA-8-N

6.365-6.725

5290

8

54

 2.2

   N

Electrical
Input impedance 75Ω (50Ω optional)
Input VSWR 2:1
Input freq. 1075-1435MHz
Output freq. 6.365-6.725GHz
L.O freq. 5.290GHz
Output power (at 1 dB GC) 8W / 39 dBm
Gain (Nominal) 60 dB
Gain Flatness
    Over any 1 MHz band
    Over any 36 MHz band (25°C)
    Over full band

±0.2 dB max
±0.6 dB max
±2.0 dB max
Gain Stability over temp. (at constant freq.) 4 dB max
Ref. signal - External 10MHz -3dBm to +7dBm
Spectrum sense Non Inverting (Inverting-Option)
Total Frequency Accuracy Controlled by Reference
Phase noise
    @ 1 kHz offset
    @ 10 kHz offset
    @ 100 kHz offset

75 dBc/Hz
81 dBc/Hz
95 dBc/Hz
Leakage and Spurious Signals (Up to 1dB comp. )
    In-Band
    Harmonics
    In Rx Band
    Wideband noise in Rx Band
    3rd Order intercept point (IP3)

55 dBc max, -60dBc typ.
-20 dBm max
-140 dBm/4KHz max
-160 dBm/Hz max
P1dB+ 7 dB min
Stability The unit will not oscillate under any condition of load, temperature or DC supply.
Protection -Thermal runaway protection
-No damage for any combination of load reflections
-DC supply spikes protection
-Missing 10MHz Ref. shuts transmitter to -60dBc min
Power supply voltage (at the input of the BUC) +15 to +24V DC
Mechanical
IF + DC + reference input. F type (f) (N type optional)
RF output CPR137 Grooved
Weight 4.08 lbs (1.85 kg)
Finish White polyurethane paint
Environmental
Operating Temperature -40°C to +55°C
Sealing Moisture sealing by O-ring
Weather-proof
Vibration 5-350Hz 0.0015g2/Hz
350-500Hz -6dB/oct
500Hz 0.00074g2/Hz
Shock 10g @ 10m s(half sine)
