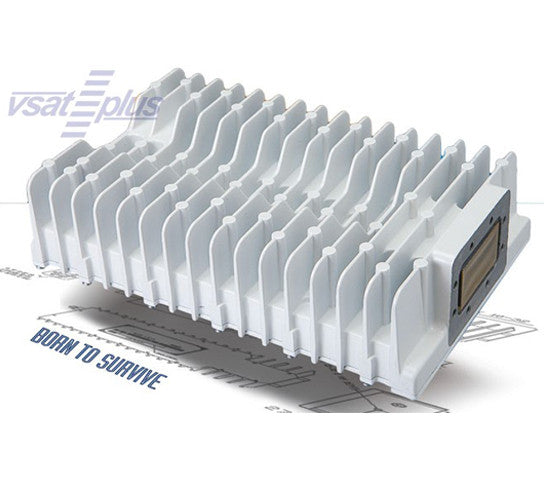

Belcom BLWC-2 Spark Series 2W Wide C-Band BUC
Belcom BLWC-2 Spark Series 2W Wide C-Band BUC
Sale
Sold out
SKU: mBLC-2-N
FEATURES
- Avalible in Wide C-Band
- Output power: 2W
- Complete 2-years Warranty plan
- Guaranteed 21-day repair cycle
- Low power consumption
- Lightweight: 1.85 Kg
Belcom’s SPARK series of low power BUCs have been trusted by the world's largest VSAT companies for over 20 years and
has a proven reputation for reliability Built to be robust and reliable, SPARK BUCs are rugged enough to withstand extreme outdoor conditions. Belcom’s high-level development experience and its large volume manufacturing capabilities, provide clients with unmatched cost savings.
SPARK products are covered by a full two-year warranty and are backed by a dedicated service team that ensures a full
repair cycle within no more than 21 days.
LINE UP
Model |
Output Freq. Band (GHz) |
L.O Freq. |
Output Power (W) Min. over Temp |
DC Power Consumption (W) |
Weight (Kg) |
IF Conn. |
BLWC-2-F |
5.85-6.725 |
4900 |
2 |
24 |
1.85 |
F |
BLWC-2-N |
5.85-6.725 |
4900 |
2 |
24 |
1.85 |
N |
Electrical | |
---|---|
Input impedance | 75Ω (50Ω optional) |
Input VSWR | 2:1 |
Input freq. | 950-1825 MHz |
Output freq. | 5.85-6.725 GHz |
L.O freq. | 4.900 GHz |
Output power (at 1 dB GC) | 2W / 33 dBm |
Gain (Nominal) | 55 dB |
Gain Flatness Over any 1 MHz band Over any 36 MHz band (25°C) Over full band |
±0.2 dB max ±0.6 dB max ±2.0 dB max |
Gain Stability over temp. (at constant freq.) | 4 dB max |
Ref. signal - External 10MHz | -3dBm to +7dBm |
Spectrum sense | Non Inverting (Inverting-Option) |
Total Frequency Accuracy | Controlled by Reference |
Phase noise @ 1 kHz offset @ 10 kHz offset @ 100 kHz offset |
75 dBc/Hz 81 dBc/Hz 95 dBc/Hz |
Leakage and Spurious Signals (Up to 1dB comp. ) In-Band Harmonics In Rx Band Wideband noise in Rx Band 3rd Order intercept point (IP3) |
55 dBc max, -60dBc typ. -20 dBm max -140 dBm/4KHz max -160 dBm/Hz max P1dB+ 7 dB min |
Stability | The unit will not oscillate under any condition of load, temperature or DC supply. |
Protection | -Thermal runaway protection -No damage for any combination of load reflections -DC supply spikes protection -Missing 10MHz Ref. shuts transmitter to -60dBc min |
Power supply voltage (at the input of the BUC) | +15 to +24V DC |
Mechanical | |
IF + DC + reference input. | F type (f) (N type optional) |
RF output | CPR137 Grooved |
Weight | 4.08 lbs (1.85 kg) |
Finish | White polyurethane paint |
Environmental | |
Operating Temperature | -40°C to +55°C |
Sealing | Moisture sealing by O-ring Weather-proof |
Vibration | 5-350Hz 0.0015g2/Hz 350-500Hz -6dB/oct 500Hz 0.00074g2/Hz |
Shock | 10g @ 10m s(half sine) |
