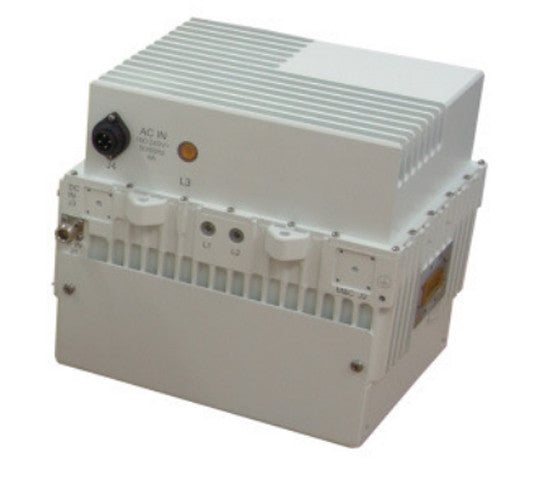

Belcom BLC-50-AC C Flame Series C-Band Standard BUC

Belcom BLC-50-AC C Flame Series C-Band Standard BUC

50W C-Band BUC

Belcom Microwave's FLAME series of medium power BUCs provides a groundbreaking solution for increased speed and bandwidth. The FLAME series was crafted with 20 years of engineering experience and is backed by a dedicated support team. The Belcom team incorporates...

  • Category: All Products, Belcom Microwave, Block Upconverter BUC, C-Band Block Upconverter BUC

Belcom Microwave's FLAME series of medium power BUCs provides a groundbreaking solution for increased speed and bandwidth.

The FLAME series was crafted with 20 years of engineering experience and is backed by a dedicated support team.

The Belcom team incorporates innovative design with efficient, high turnover manufacturing processes to provide top-caliber products with impressive lead times.

Designed to be simple and robust, FLAME series delivers top performance and is cost effective and reliable

FLAME HIGHLIGHTS

  • Competitive pricing
  • Output power: 50W
  • Avalible in C Standard bands
  • Complete 3-years Warranty plan
  • Guaranteed 21-day repair cycle
  • AC powered
  • Operating temperatures: -40ºc to 55ºc
  • Synthesized L.O.

LINE UP

Model

Output Freq. Band

(GHz)

L.O Freq.

Output Power (W)

Min. over Temp

DC Power Consumption (W)

Weight (Kg)

IF Conn.

BLC-50AC

5.85-6.425

4900

50

400

11.5

N


SPECIFICATIONS

  • Part Number: BLC-50
  • Manufacturer: Belcom Microwaves
  • Description: 67 dB, C Band Block Up Converter
  • Band: C Band
  • RF frequency: 5.85 to 6.425 GHz
  • IF frequency: 950 to 1525MHz
  • LO Frequency : 4.9 GHz
  • Output Power: 46.99 dBm
  • Gain: 67 dB
  • Gain Flatness: ±0.2 dB
  • Power Consumption: 400 W
  • AC Voltage: 90 to 250 VAC
  • Grade: Commercial
  • Connector: N Type
  • Dimension: 268 x 228 x 245
  • Impedance: 50 Ohms
  • VSWR: 2.00:1
  • Waveguide CPR137
  • Weight: 11.5 kg
  • DC Voltage: 37 to 60 VDC
  • Operating Temperature: -40 to 55 Degree C
  • Phase Noise: 75 to 95 dBc/Hz
  • Spurious: -55 dBc
  •

    DATASHEET

     Click here for product specification
