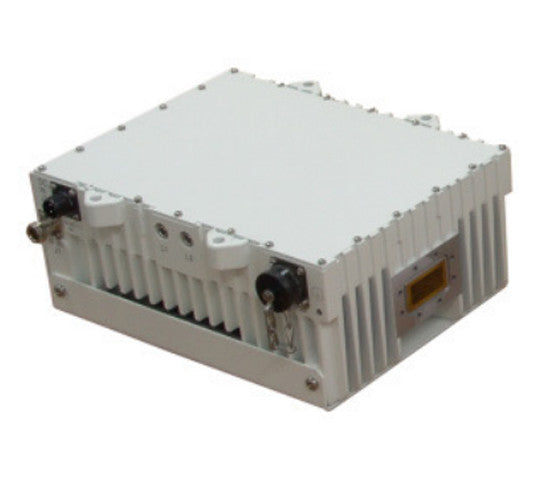

Belcom BLC-10 C Flame Series C-Band Standard BUC
FLAME HIGHLIGHTS
Belcom BLC-10 C Flame Series C-Band Standard BUC
10W C-Band BUCs
Belcom Microwave's FLAME series of medium power BUCs provides a groundbreaking solution for increased speed and bandwidth. The FLAME series was crafted with 20 years of engineering experience and is backed by a dedicated support team. The Belcom team incorporates...
- SKU::
- Category: All Products, Belcom Microwave, Block Upconverter BUC, C-Band Block Upconverter BUC
Belcom Microwave's FLAME series of medium power BUCs provides a groundbreaking solution for increased speed and bandwidth.
The FLAME series was crafted with 20 years of engineering experience and is backed by a dedicated support team.
The Belcom team incorporates innovative design with efficient, high turnover manufacturing processes to provide top-caliber products with impressive lead times.
Designed to be simple and robust, FLAME series delivers top performance and is cost effective and reliable
FLAME HIGHLIGHTS
- Competitive pricing
- Output power: 10W
- Avalible in C Standard bands
- Complete 3-years Warranty plan
- Guaranteed 21-day repair cycle
- AC or DC powered
- Operating temperatures: -40ºc to 55ºc
- Synthesized L.O.
LINE UP
|
Model |
Output Freq. Band (GHz) |
L.O Freq. |
Output Power (W) Min. over Temp |
DC Power Consumption (W) |
Weight (Kg) |
IF Conn. |
|
BLC-10-24 |
5.85-6.425 |
4900 |
10 |
80 |
6.5 |
N |
|
BLC-10-48 |
5.85-6.425 |
4900 |
10 |
80 |
6.5 |
N |
|
Part Number: |
BLC-10 |
|
Manufacturer: |
Belcom Microwaves |
|
Description: |
60 dB, C Band Block Up Converter |
|
Band: |
C Band |
|
RF frequency: |
5.85 to 6.425 GHz |
|
IF frequency: |
950 to 1525MHz |
|
LO Frequency : |
4.9 GHz |
|
Output Power: |
40 dBm |
|
Gain: |
60 dB |
|
Gain Flatness: |
±0.2 dB |
|
Power Consumption: |
80 W |
|
AC Voltage: |
90 to 250 VAC |
|
Grade: |
Commercial |
|
Connector: |
N Type |
|
Dimension: |
268 x 212 x 110 |
|
Impedance: |
50 Ohms |
|
VSWR: |
2.00:1 |
|
Waveguide |
CPR137 |
|
Weight: |
6.5 kg |
|
DC Voltage: |
37 to 60 VDC |
|
Operating Temperature: |
-40 to 55 Degree C |
|
Phase Noise: |
75 to 95 dBc/Hz |
|
Spurious: |
-55 dBc |
