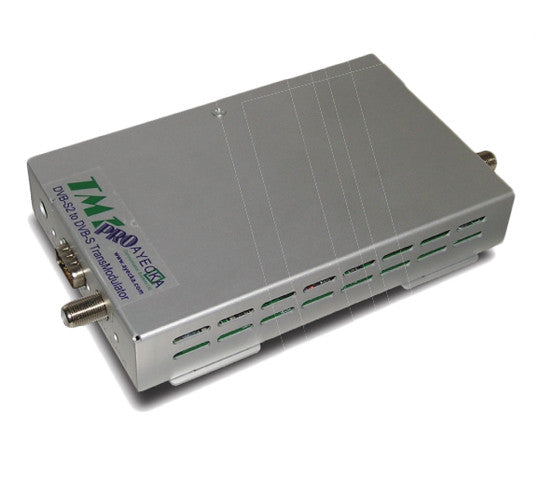

Ayecka TM1-PRO DVB-S2 to DVB-S Transmodulator

Ayecka TM1-PRO DVB-S2 to DVB-S Transmodulator

DVB Modulators

TM1-Pro converts DVB-S2 signals to DVB-S and solves the dilemma between the benefits of the DVB-S2 and the cost of migration. As an optimized and reliable device, the integration of TM1-Pro with existing receivers (DVB-S VSAT or IRDs) is quick...

  • Category: All Products, Ayecka, DVB-S/DVB-S2, Featured products, On-sale Products, Top Rated Products

TM1-Pro converts DVB-S2 signals to DVB-S and solves the dilemma between the benefits of the DVB-S2 and the cost of migration. As an optimized and reliable device, the integration of TM1-Pro with existing receivers (DVB-S VSAT or IRDs) is quick and simple both for data and video networks.

TM1-PRO

  • Conver DVB-S2 signal to D VB-S
  • Advanced DVB-S2 front end – 16/32 APSK
  • 30% saving with CCM and up to 70% with ACM
  • Ideal for VCM (C-Band ) and ACM ( Ku-Band)
  • Rx symbol rate from 400 ksps to 45Msps
  • Ayecka patent for SNMP MIB for Uni-Directional device


The TM1-Pro converts DVB-S2 signals to DVB-S allowing use of DVB-S receivers with DVB-S2 links. Integration of the TM1-Pro with existing receivers (VSAT or one way) is quick and simple. An operator need only configure the IRD to receive an L-Band input of 1Ghz at 27Msps. The TM1Pro is configured according to the satellite signals parameters.

TM1 Pro is the optimal solution for upgrading existing 8PSK DVB-S2 networks to 16APSK, or existing CCM DVB-S2 to ACM or VCM.

The TM1 Pro was designed to simplify the upgrade process - both in cost and time.

Why DVB-S2?

DVB-S2 is the second-generation standard for satellite broadcasting, which has been widely adopted by the broadcasting industry. The new standard benefits from recent developments in channel coding (LDPC codes) combined with a variety of modulation formats (QPSK, 8PSK and 16APSK). This more efficient technology yields increased transmission capacity along with ~30% improvement in space segment utilization.

DVB-S2 provides VCM and ACM mode to optimize channel utilization by variable coding per packet.

The DVB-S2 Migration challenge

Companies which have invested in DVB-S based VSATs are facing a situation where this technology may become obsolete due to the onslaught of the new DVB-S2 technology. The new-generation DVB-S2 technology offers several advantages over DVB-S, the main ones are 30% savings in bandwidth and support for multi stream.

From a technical perspective, existing DVB-S VSATs can continue to provide most of the services like Return channel and Routing, It is the receiver that has to be upgraded.

Receiver DVB-S2 mode



Environmental Conditions

Modulation: QPSK, 8PSK,16APSK, 32APSK



Operating Temp 0° to 50° C.

Channel Rate up to 120 Mbps



Storage Temp -25° to +85° C

Roll-off Factors 0.2, 0.25, 0.35



Humidity 5% to 95% non-condensing

Coding LDPC and BCH decoder as



Transmit

for DVB-S2 requirements



IF Freq 1GHz

Code rates ½, 3/5, 2/3, ¾, 4/5, 5/6, 8/9,9/10



Symbol rate 27Msps

Framing DVB-S2 framing



Code Rate 5/6, 3/5 or 7/8

Modes CCM, ACM and VCM



Signal level -55 dBm +/- 5 dB

Receiver RF



Standard DVB-S

Input Freq 950-2150MHz



Connector Type F, 75 Ohms

Signal Level -35 to -75 dBm



Physical Characteristics

Symbol Rates 0.4 to 45 Msps



Dimensions 3 cm x 8 cm x 14 cm (HxWxD)

Input Connector Type F, 75 Ohms.



Weight 0.5 Kg

SNMP MIB



Standard Compliance

Implementation TM1 Pro MIB



Safety TUV/cTUVus; CE

Interface Ayecka Patent Pending



EMI/EMC FCC part 15, Class B,EN 55022,

Message Injection technology



EN 55024, EN61000,AS/NZS CISPR 22

Receiver DVB-S mode





Modulation QPSK





Channel Rate up to 72.7 Mbps





Roll-off factors 0.35





Coding Convolution with Reed Solomon





Code Rates ½, 2/3, ¾, 5/6, 6/7, 7/8





Control & Monitor





Connector Dsub9 Female





Protocol CLI





Physical RS232, 8,n,1, 9600





LED Power on/signal detect/TX state





Power





Power 6VDC, 5W
