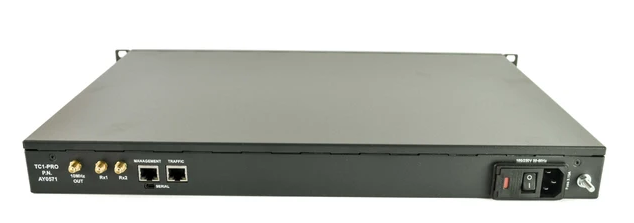

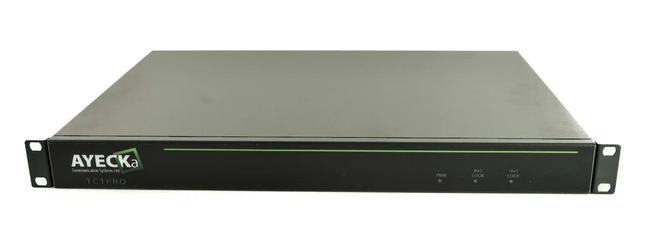

Ayecka TC-1 Pro Demodulator for Signal Monitoring

Ayecka TC-1 Pro Demodulator for Signal Monitoring

Request for a quote

Ksps to 67 Msps and transmits transport streams or BBFrames over UDP to data processing systems. The TC1 Pro also offers optional BBFrame analysis software.

Product Highlights

  • GigE network interface.

  • Roll-off- S2 - Roll-off 0.35, 0.25, 0.20 and 0.15

  • Full L-Band, tuner. Tuner filter bandwidth control to cope with strong neighboring signals.

  • S2 profiles: – CCM, VCM including short frames + all MODCODs

  • Output BBFRAMEs over UDP.

  • Fully compliant with ESA L.3 protocol and wireshark GSE dissector.

  • Fast lock time.

  • Advanced lock and search modes a. L-Band frequency only b. L-Band + symbol rate c. Relock (no search).

  • 500ma LNB power (support universal and professional LNB).

  • Network interface – GigE.

  • HPP for post demodulation processing such as MODCOD statistics gathering in real time, processing of non-standard BBF.

  • Compatible with AYECKA TC1 Analyzer software.

Main Applications

  • Video Monitoring.

  • Data Monitoring.

  • Spectrum Scanning Systems.

Product Specifications

- Converter: DVB-S/S2
- Roll-off factors: 0.15,0.2, 0.25,0.35
- Signal Level: -35 to -75 dBm
- Symbol Rates: 0.1Msps to 64Msps
- Input connector Type: F, 75 Ohms.
- LNB power: 14/18V, 22Khz, DiSEqC 2.0

Hardware processor

- FPGA based
- BBF over IP according to SatLab L.3Environmental Conditions
- Operating Temp. 10° to 40° C.
- Storage Temp. -25° to +85° C


- CE or equivalent
- EMI/EMC FCC part 15, Class A
- Power
110-240 AC, 12W max

Control & Monitor

- Serial port Serial over USB CLI
- IP 10/100 BaseT interface
- In-band UDP over Gige commands to
- CLI and SNMP
- Traffic IP address Static or DHCP
- Management IP setting – Static Physical Characteristics or DHCP
- Detailed SNMP MIB
- Software and Firmware are field-upgradeable
TFTP based
- 2 images were saved in internal Flas
