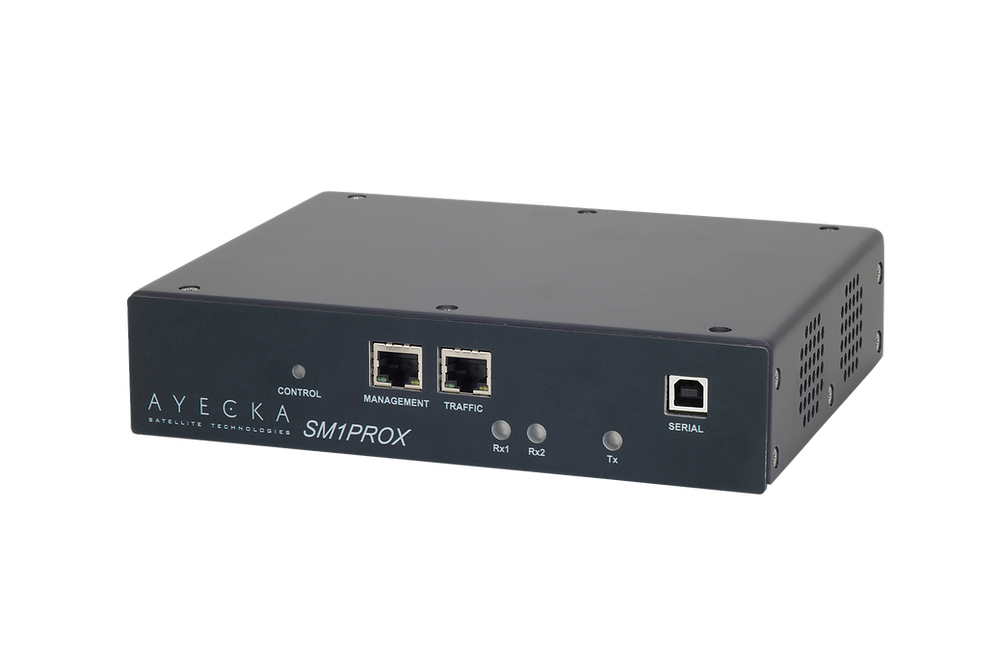

Ayecka SM-1 Prox New Generation DVB-S2X Modem

Ayecka SM-1 Prox New Generation DVB-S2X Modem

Request for a quote


Product Highlights

  • Cost-effective solution for IP over DVB-S2 transmission.

  • Full support of DVB-S2.

  • VCM and ACM.

  • MODCOD: QPSK ¼ to 32 APSK 9/10.

  • 100Ksps to 67Msps / over 220Mbps output.

  • Supports MPE and GSE.

  • Hardware Accelerator.

  • L2 transparent device.

  • Jumbo Frame Support.

Main Applications

  • SCPC IP connectivity over satellite.

  • MCPC Satellite Transmitter and IPE.

  • IPTV over satellite broadcasting.

  • HD surveillance video delivery over satellite.

  • Cellular and Wireless local loop backhauling.

  • Dense Modulator.

Product Specifications

DVB-S2 Modulator

Standard                  Fully compliant with ETSI EN 302 307
DVB-S2 Modes        Support for CCM, VCM and ACM modes
Modulation               QPSK, 8PSK, 16APSK, 32APSK
Channel Rate           up to 220 Mbps
Roll-off factors         0.5, 0.10, 0.15, 0.20, 0.25, 0.35
Output Freq              950-2150MHz

IP Encapsulation
MPE                          According to ETSI 301 192
GSE                          Based on ETSI TS 102 606 and ETSI TS 102 771(1)

Traffic Interface
Interface                   10/100/1000 BaseT
Network Interface     L3 / L2
