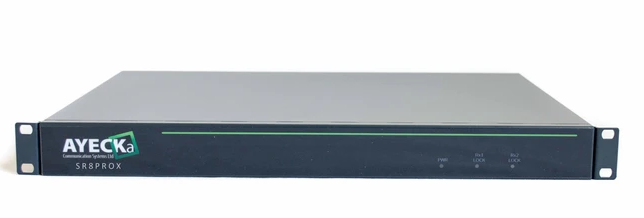

Ayecka SR8 PROX New Generation DVB-S2X Demodulator

Ayecka SR8 PROX New Generation DVB-S2X Demodulator

Request for a quote

The SR8 PROX is a cutting-edge professional demodulator supporting DVBS-2X. It handles a wide range of symbol rates, from 100 Ksps to 500 Msps in wideband mode.

It supports ACM and modulations up to 64 APSK, with optional support for 256 APSK.

Powered by the latest STMicroelectronics Oxford chipset, the SR8 PROX features an advanced HPP engine that delivers data rates up to 600 Mbps. It also includes an integrated Gigabit Ethernet switch for easy network integration. Like all AYECKA X-series products, it comes with a high-power processor and advanced web server management.

The device offers separate traffic and management interfaces to enhance cybersecurity and multiple management interfaces for easy integration and automation. The SR8 PROX supports datacasting services and its modular design allows for the aggregation of multiple demodulators, achieving bit rates over 2 Gbps.

Product Highlights

  • DVB-S2x Receiver with support down to 0.05 roll off, ACM, VCM, 16/32/64/128 APSK and from 100Ksps Up to 500Msps in both directions.

  • Supports DVB-S2x Annex-M and aggregation of multiple demodulators to achieve a total throughput close to 3Gbps.

  • Wire speed processing of traffic - full hardware implementation, over 350Kpps.

  • High speed ACM message generator. Programable ModCod to Es/No lookup table.

  • GSE De-capsulation.

  • 10 Mhz reference generation.

  •  Supports L2, L3.

  • Fast Lock time and Re-Lock time for SOTM.

  • Based on AYECKA reliable hardware design in use by thousands devices.

Main Applications

  • High speed data links.

  • Data-casting.

  • Satellite CDN.

  • HTS receiver.

Product Specifications

DVB-S2 Demodulator

Modulation QPSK, 8PSK,16APSK, 32APSK, 64APSK and optional (128 and 256 APSK)
Channel Rate Up to 8 demodulators, total 720LLR

Device Capacity

2 demods 45Msps@32APSK / 60Msps@16APSK - 230Mbps per demod                            4 demods 30Msps@32APSK / 45Msps@16APSK - 153Mbps per demod                            8 demods 15Msps@32APSK / 22.5Msps@16APSK - 76Mbps per demod


Roll-off Factors 0.05, 0.10, 0.15, 0.20, 0.25, 0.35
Coding LDPC and BCH decoder as for DVB-S2 requirements

Code rates

S2
QPSK - 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK - 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK - 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK - 3/4, 4/5, 5/6, 8/9, 9/10

S2x Normal
FECFRAME (normal)
QPSK - 1/4, 1/3, 2/5 (S2-MODCODs) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
(S2-MODCODs) 13/45, 9/20, 11/20
8PSK - 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (S2-MODCODs) 23/36, 25/36, 13/18
8PSK-L - 5/9, 26/45
16APSK - 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs) 26/45, 3/5, 28/45, 23/36,                                       25/36, 13/18, 7/9, 77/90
16APSK-L - 5/9, 8/15, 1/2, 3/5, 2/3
32APSK - 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs) 32/45, 11/15, 7/9
32APSK-L - 2/3
64APSK - 11/15, 7/9, 4/5, 5/6
64APSK-L - 32/45
128APSK - 3/4, 7/9
256APSK - 32/45, 3/4
256APSK-L - 29/45. 2/3, 31/45, 11/15

S2x Short
QPSK - 1/4, 1/3, 2/5 (S2-MODCODs) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
(S2-MODCODs) 11/45, 4/15, 14/45, 7/15, 8/15, 32/45
8PSK - 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) 7/15, 8/15, 26/45, 32/45
6APSK - 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) 7/15, 8/15, 26/45, 3/5, 32/45
32APSK - 2/3, 32/45

Framing DVB-S2 framing
Modes CCM, VCM, ACM
Input Freq 950-2150MHz
Symbol Rates 100Ksps to 500Msps
LNB Power 14/18V, 22Khz, DiSEqC 2.0
Encapsulation MPE and GSE
Management Web GUI, CLI, REST
Maintenance Field Upgradable
