Ayecka SR1 IP over DVB-S2 Receiver High Speed IP Connectivity

Ayecka SR1 IP over DVB-S2 Receiver High Speed IP Connectivity

Request for a quote

AYECKA's SR1 IP-over-DVB-S2 receiver provides fast IP connectivity over satellite links, perfect for data casting and hybrid network setups.

It features a HPP (Hardware Packet Processing) engine for smooth, high-speed delivery up to 150Mbps, without any packet-per-second limitations.

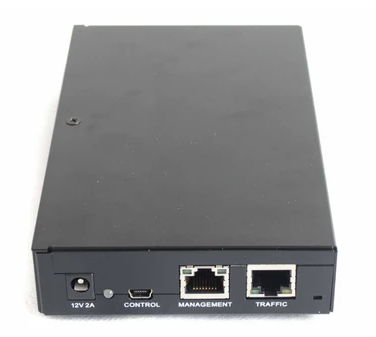

The device includes a Gigabit Ethernet interface and switch for high throughput and easy network integration. It supports SNMP for status monitoring, control, and centralized management. Compatible with EUMETCAST and NOAAPORT services, it comes in various form factors, including board-only options for OEMs.

Separate traffic and management interfaces enhance cybersecurity.

Product Highlights

  • Cost-effective solution for IP over DVB-S2 transmission

  • Full support of DVB-S2

  • VCM and ACM

  • MODCOD: QPSK 1/4 to 32 APSK 9/10

  • 1Msps to 45Msps

  • Support MPE

  • Hardware Accelerator

  • L3

Main Applications

  • Data Casting

  • NOAA and EUMETCAST services

  • IPTV over satellite broadcasting

  • HD surveillance video delivery over satellite


Product Specifications

DVB-S2 Demodulator
Modulation QPSK, 8PSK,16APSK, 32APSK
Channel Rate up to 150Mbps
Roll-off Factors 0.15, 0.20, 0.25, 0.35
Coding LDPC and BCH decoder as per DVB-S2 requirements
Code rates 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Framing DVB-S2 framing
Modes CCM, VCM, ACM
Input Freq 950-2150MHz
Symbol Rates 1Msps to 45Msps
LNB Power 14/18V, 22Khz, DiSEqC 2.0
Encapsulation MPE
Management SNMP & CLI
Maintenance Field Upgradable
