DVB-S/S2

SR1 - DVB-S2 Demodulator Ayecka SR1 is advanced DVB-S2 Demodulator with 240Mbps over a GigE inter face, an IP-over-satellite receiver that gives service providers a strong competitive edge. SR1’s best cost-performance parameters lead the market. With its support of advanced...

  • Category: All Products, Ayecka, DVB-S/DVB-S2, Limited Offers, On-sale Products, Top Selling Products

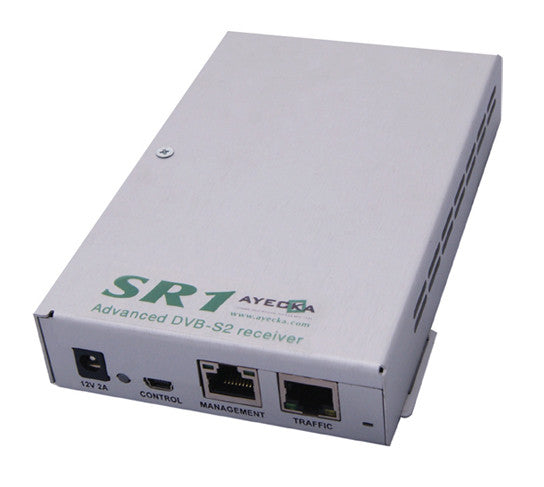

SR1 - DVB-S2 Demodulator

Ayecka SR1 is advanced DVB-S2 Demodulator with 240Mbps over a GigE inter face, an IP-over-satellite receiver that gives service providers a strong competitive edge. SR1’s best cost-performance parameters lead the market. With its support of advanced modulation modes at 16 and 32 APSK, SR1 delivers more performance at lower cost and signifi¬cantly reduces long-term operating costs.

SR1’s best cost-performance parameters currently lead the market. With its support of advanced modulation modes at 16 and 32 APSK, ACM, VCM, and Pre-distortion Feedback Channel. SR1 delivers more throughput over the available bandwidth. EUMETCAST, NOAAPORT, MVDDS, IP/SAT and VIDEO/IP/SAT approved, SR1 significantly reduces long-term operating costs.

Satellite service providers can leverage Ayecka SR1 demodulators across multiple applications, including bandwidth augmentation for VSAT networks, satellite unidirectional networks, data-casting, IPTV, and digital TV head-ends.

The use of DVB-S2 technology significantly improves the performance of IP over satellite networks. Ayecka's SR1 leverages DVB-S2’s advanced features by increasing both the channel capacity and the efficiency of existing transponders to deliver higher bit rate.

Product Highlights

  • Cost-effective solution for IP over DVB-S2 reception
  • Full support of DVB-S2
  • VCM and ACM
  • MODCOD: QPSK ¼ to 32 APSK 9/10
  • 1Msps to 45Msps (SR1), 100ksps to 67.5Msps (SR1-Pro) / over 240Mbps reception and processing capabilities
  • Support MPE and GSE (SR1 Pro)
  • Dual carrier receiver
  • Hardware Accelerator
  • L2 transparent device
  • Jumbo Frame Support

Main Applications

  • SCPC IP connectivity over satellite
  • MCPC Satellite receivers
  • Data Casting – Eumetcast and Nooaport
  • MVDDS – Terrestrial Ku links

DVB-S2 Demodulator
Modulation QPSK, 8PSK,16APSK, 32APSK
Channel Rate up to 240 Mbps
Roll-off Factors 0.05, 0.2, 0.25, 0.35
Coding LDPC and BCH decoder as for DVB-S2 requirements
Code rates ½, 3/5, 2/3, ¾, 4/5, 5/6, 8/9,9/10
Framing DVB-S2 framing
Modes CCM, VCM, ACM
Input Freq 950-2150MHz
Symbol Rates 100Ksps to 67.5 Msps
LNB Power 14/18V, 22Khz, DiSEqC 2.0
Encapsulation MPE and GSE
Management Web GUI & CLI
Maintenance Field Upgradable

Feature

SR1Pro

SR1

De-GSE Filters (Number of simultaneous GSE streams the demodulator can support)    8   2
Maximum Symbol rate [Msps]  67.5  45
Minimum Symbol rate [Msps]  0.101   1
Real time Signal quality indications over UDP    V   X
BBF over UDP according to ESA L.3 protocol    V   X
Jumbo Frames   10K   X
Support of L2 and VLAN    V   X
Recommanded for new designs    V   X


Order information

SR1 MPE - AY020
SR1 GSE - AY021
SR1 Pro - AY030 (GSE & MPE )
