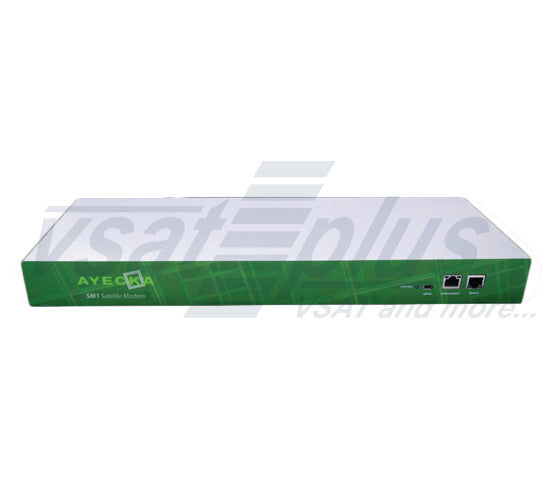

SM1: DVB-S2 SCPC Modem with a GigE Interface
The SM1 Advanced DVB -S2 SCPC Modem, offers service providers a strong competitive edge when offering their services in today’s competitive market. SM1’s best cost-performance parameters lead the market. With the high spectral efficiency of the DVB-S2 standard and its extensions the SM1 delivers more performance at lower cost and significantly reduces long-term operating costs.
With return channel that can be selectable from SCPC DVB -S2, DVB-RCS or Random Access, The SM1 is optimal for any network.
SM1 Product Highlights
- Cost-effective solution for IP over DVB-S2 communication
- Full support of DVB-S2
- VCM and ACM
- MODCOD: QPSK ¼ to 32 APSK 9/10
- 100ksps to 67.5Msps / over 240Mbps output
- Support MPE and GSE
- Dual carrier receiver
- Hardware Accelerator
- L2 transparent device
- Jumbo Frame Support
- Support High Power BUC
- BUC Power Saving with Pre-distortion
Main Applications
- SCPC IP connectivity over satellite
- MCPC Satellite Remote Terminal
- Backhauling
Short Technical Specifications
DVB-S2 Modem
IP Encapsulation
Traffic Interface
| Standard | Fully compliant with ETSI EN 302 307 |
| DVB-S2 Modes | Support for CCM, VCM and ACM modes |
| Modulation | QPSK, 8PSK, 16APSK, 32APSK |
| Channel Rate | up to 240 Mbps |
| Roll-off factors | 0.05, 0.2, 0.25, 0.35 |
| Output & Input Freq | 950-2150MHz |
IP Encapsulation
| MPE | According to ETSI 301 192 |
| GSE | Based on ETSI TS 102 606 and ETSI TS 102 771(1) |
Traffic Interface
| Interface | 10/100/1000 BaseT |
| Network Interface | L3 / L2 |
