Amplus Series AM-9338-5650-WAEL 100W Full C-Band BUC

Amplus Series AM-9338-5650-WAEL 100W Full C-Band BUC

20W C-Band BUC

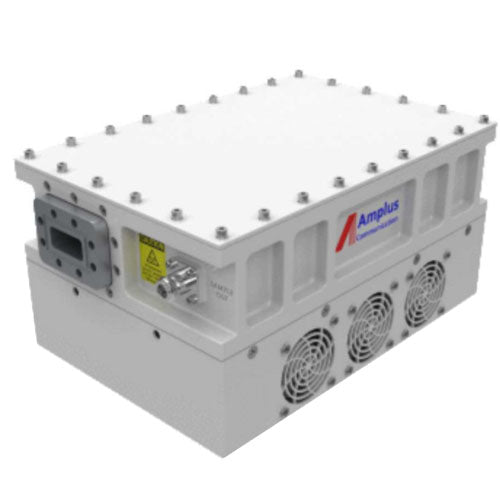

  Features Integrated BUC for Beer Performance & Reliability  Monitoring & Controlling through RS232/485, TCP/IP & FSK Tricolour LED Status Indicator to Iden.fy BUC Status Instantly Field Removable Fans for Easy Maintenance High Frequency Stability Low Power Consump.on Water-Proof IP65...

USD 12,600.00
  • Category: All Products, Amplus Communication, Block Upconverter BUC, C-Band Block Upconverter BUC, Featured products



Features

  • Integrated BUC for Beer Performance & Reliability
  • Monitoring & Controlling through RS232/485, TCP/IP & FSK
  • Tricolour LED Status Indicator to Iden.fy BUC Status Instantly
  • Field Removable Fans for Easy Maintenance
  • High Frequency Stability
  • Low Power Consump.on
  • Water-Proof IP65 Standard
  • Output Sample Port

Optional Features & Accessories

  • Built-In 10 MHz Reference with Automa.c 10 MHz External Reference Input Detector
  • Handheld Terminal for M&C
  • TCP/IP M&C Interface
  • FSK M&C Interface
  • 48 VDC Operable

RF Specifications

Input / Output Frequency

5850 – 6725 GHz

Output Power P-1dB W(dBm)

100 (50)

Gain

80 dB nominal

Gain Flatness

±2dB typical

Gain Stability over Temperature

±2dB

Gain Control Range

20dB

Intermodulation Product

-25 dBc max
(3dB total back-off from rated power)

Spurious

-55 dBc max

Frequency Stability over Temperature:

Internal Reference

± 0.2 ppm

External Reference

As per external 10 MHz ref

Phase Noise:



100 Hz

-63 dBc/Hz max

1 KHz

-73 dBc/Hz max

10 KHz

-83 dBc/Hz max

100 KHz

-93 dBc/Hz max

I/P VSWR

1.5 : 1 max

O/P VSWR

1.3 : 1 max

Operating Power Requirement

Operating Voltage

200 to 240V AC (48 VDC optional)

Power Consumption (Watts)

570 max

Interfaces

IF input interface

N-type

Output Interface

CPR 137G

LED Status

Green

Normal

Red

Fault

Blue

PA Off

Monitor & Control

Monitor

Lock / Unlock status

Temperature reading

RF output power reading

Control

SSPA On/Off

Gain adjustment

Interface

Via PC : RS 232/485 (TCP-IP option available)

Via Modem : FSK option available

Via Hand-Held Terminal : RS 232 option available

Input Reference

Frequency Reference

10 MHz to be supplied external via L-band cable

(Internal ref option available)

Level

-5 to +5 dBm

Environmental Conditions

Operating Temperature

-40°C to +55°C

Humidity

0 to 100%

Mechanical

Dimensions

300L x 200W x 150H mm / 11.8L x 7.9W x 5.9H inches

Weight

10 kg / 22 lbs
