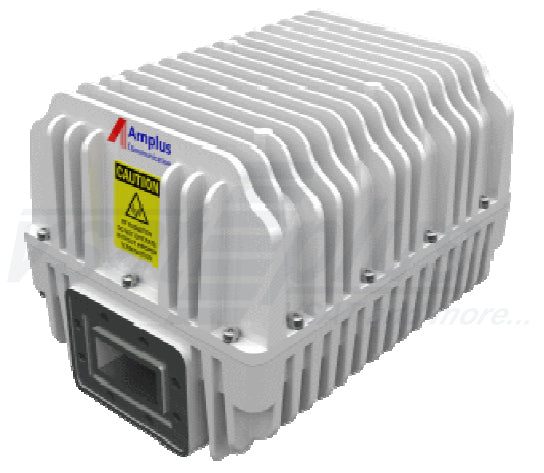

Amplus Series AM-9335 10W Full C-Band BUC

Amplus Series AM-9335 10W Full C-Band BUC

Request for a quote

SKU: AM-9335-10W-FULL

The AM-9334/5/6/8 Series C-Band BUC is a high performance transmitter designed for use in SCPC, DAMA and TDMA VSAT satellite earth stations. Its high linearity and superior phase noise performance makes it ideal for wide area telephony, video conferencing and data communications systems with different modulation formats including BPSK, QPSK, OQPSK, QAM etc.

The BUC also includes a temperature alarm and power supply shutdown to protect the amplifiers from permanent damages when temperature exceeds 80°C for outdoor operation.

Features

  • LED Status Indicator
  • Very Low Power Consumption
  • Impressive Gain & Gain Flatness
  • Extremely Light Weight
  • Waterproof IP65 Standard
  • Weather-Proof Packaging
  • High Frequency Stability
  • Extremely Easy to Install & Operate

Benefits

  • Bicolour LED Light to Identify BUC Status Instantly
  • SAVE COST with Direct Mount on Antenna Feed, Lightest Directly on Antenna Feed
  • Flexibility to Have “N” or “F” Type Input Interface

RF Specifications

Input / Output Frequency

5850 – 6725 GHz

Output Power P-1dB W(dBm)

10 (40)

Gain

65 dB nominal

Gain Flatness

±2dB typical

Gain Stability over Temperature

±3dB

Gain Control Range

20dB (optional)

Intermodulation Product

-27 dBc max
(3dB total back-off from rated power)

Spurious

-55 dBc max

Frequency Stability over Temperature:

Internal Reference

± 0.5 ppm

External Reference

As per external 10 MHz ref

Phase Noise:



100 Hz

-63 dBc/Hz max

1 KHz

-73 dBc/Hz max

10 KHz

-83 dBc/Hz max

100 KHz

-93 dBc/Hz max

I/P VSWR

1.5 : 1 max

O/P VSWR

2 : 1 max

Operating Power Requirement

Operating Voltage

220V AC (110VAC optional)

Power Consumption (Watts)

100 max

Interfaces

IF input interface

F-type or N-type

Output Interface

CPR 137G

LED Status

Green

Normal

Red

Fault

Blue

PA Off

Monitor & Control

Monitor

Lock / Unlock status

Temperature reading

RF output power reading

Control

SSPA On/Off

Gain adjustment

Interface

Via PC : RS 232/485 (TCP-IP option available)

Via Modem : FSK option available

Via Hand-Held Terminal : RS 232 option available

Input Reference

Frequency Reference

10 MHz to be supplied external via L-band cable

(Internal ref option available)

Level

-5 to +5 dBm

Environmental Conditions

Operating Temperature

-40°C to +55°C

Humidity

0 to 100%

Mechanical

Dimensions

175L x 130W x 115H mm / 7L x 5.2W x 4.5H inches

Weight

2.5 kg / 5.5 lbs
