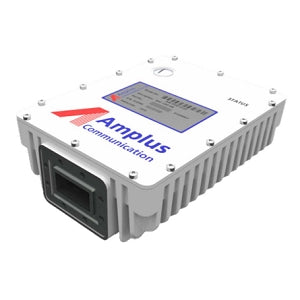

Amplus AM-9335 Series 5W Palapa C-Band BUC

Amplus AM-9335 Series 5W Palapa C-Band BUC

5W C-Band BUCs

Features LED Status Indicator  Very Low Power Consumption Impressive Gain & Gain Flatness  Extremely Light Weight Waterproof IP65 Standard  Weather-Proof Packaging High Frequency Stability  Extremely Easy to Install & Operate Benefits Bicolour LED Light to Identify BUC Status Instantly SAVE...

  • Category: All Products, Amplus Communication, Block Upconverter BUC, C-Band Block Upconverter BUC, Featured products, New Arrivals
Features
  • LED Status Indicator
  • Very Low Power Consumption
  • Impressive Gain & Gain Flatness
  • Extremely Light Weight
  • Waterproof IP65 Standard
  • Weather-Proof Packaging
  • High Frequency Stability
  • Extremely Easy to Install & Operate

Benefits

  • Bicolour LED Light to Identify BUC Status Instantly
  • SAVE COST with Direct Mount on Antenna Feed, Lightest Directly on Antenna Feed
  • Flexibility to Have “N” or “F” Type Input Interface

Beneficial Features (Optional)

  • Built-In Reference
  • DIP Switch for Gain Control
  • Installation by Expert Engineer
  • Annual Maintenance Service

SPECIFICATION

RF Specifications

Input / Output Frequency

6365 – 6725 MHz

Output Power P-1dB W(dBm)

5 (37)

Gain

58 / 61 / 62 / 63 dB nominal

Gain Flatness

±2dB typical

Gain Stability over Temperature

±3dB

Gain Control Range

30dB (optional)

Intermodulation Product

-27 dBc max

(3dB total back-off from rated power)

Spurious

-55 dBc max

Frequency Stability over Temperature:

Internal Reference

± 0.5 ppm

External Reference

As per external 10 MHz ref

Phase Noise:



100 Hz
1 KHz
10 KHz
100 KHz

-63 dBc/Hz max
-73 dBc/Hz max
-80 dBc/Hz max
-90 dBc/Hz max

I/P VSWR

1.5 : 1 max

O/P VSWR

2 : 1 max

Operating Power Requirement

Operating Voltage

24 VDC

Power Consumption (Watts)

22 / 44 / 46 / 63

LED STATUS

Green

Normal

Red

Fault

Input Reference



Frequency Reference

10 MHz to be supplied external via L-band cable
(Internal ref option available)

Level

-5 to +5 dBm

Interfaces

IF input Interface

F-type or N-type

Output Interface

CPR 137G

Environmental Conditions

Operating Temperature

-40°C to +55°C

Humidity

0 to 100%

Mechanical

Dimensions

175L x 130W x 60H mm / 7L x 5.2W X 2.4H inches

Weight

1.6 kg / 3.5 lbs
