VSATplus

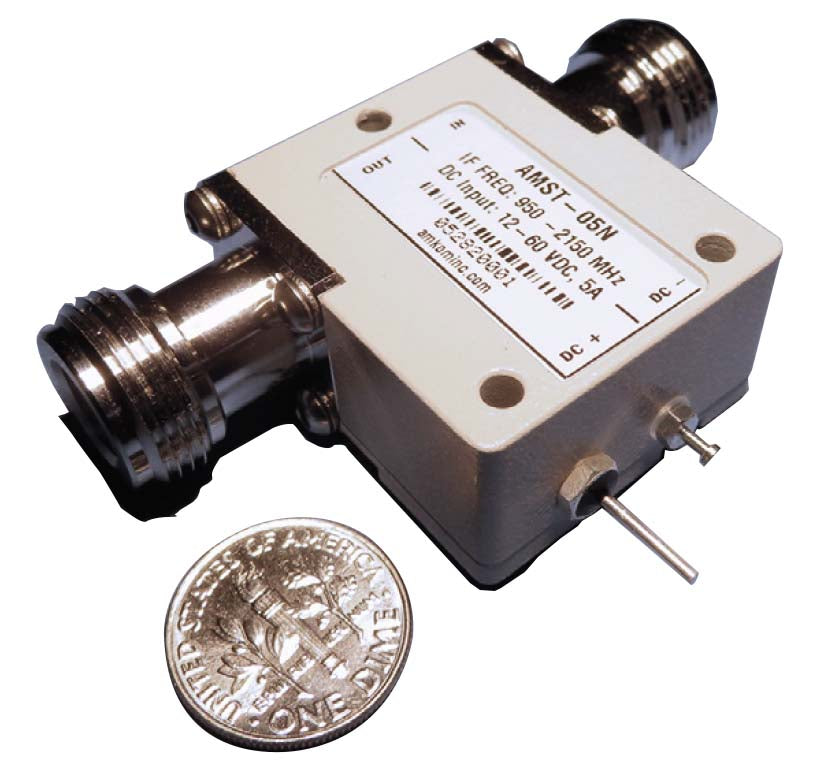

Amkom AMST-05 Universal BIAS T Pass IF & 10MHz, DC input 12 – 60 VDC up to 5A Power Injector
Amkom AMST-05 Universal BIAS T Pass IF & 10MHz, DC input 12 – 60 VDC up to 5A Power Injector
Sale
Sold out
SKU: AMST-05N-2
Couldn't load pickup availability
FEATURES
- Super Compact, Robust & Mountable
- Filters DC or Fan Noise
- Low Insertion and Return Loss
- Pass - through IF (L-Band), and 10 MHz Reference
- RoHS Compliant
- Built - in DC filters
Mechanical Drawing
![](https://cdn.shopify.com/s/files/1/1094/0100/files/Amkom-AMST-05N_600x600.jpg?v=1607752026)
TECHNICAL SPECIFICATION
IF Input Signals |
Pass-through IF (L-Band), and 10MHz Referece from Modem |
IF Frequency Input |
950 to 2150 MHz |
DC Input Range |
12 to 60 Vdc |
DC Current |
5A |
Reference Input |
10 MHz |
VSWR |
1.5:1 max |
Insertion Loss IF |
0.3 dB max over temp |
Insertion Loss 10MHz |
0.3 dB max over temp |
Coax Input / Output Connector |
N-type / N-type |
Operating | Storage Temperature |
- 60 to + 85 °C |
Dimensions | Weight |
36x30x17.5 mm (without connectors) |
