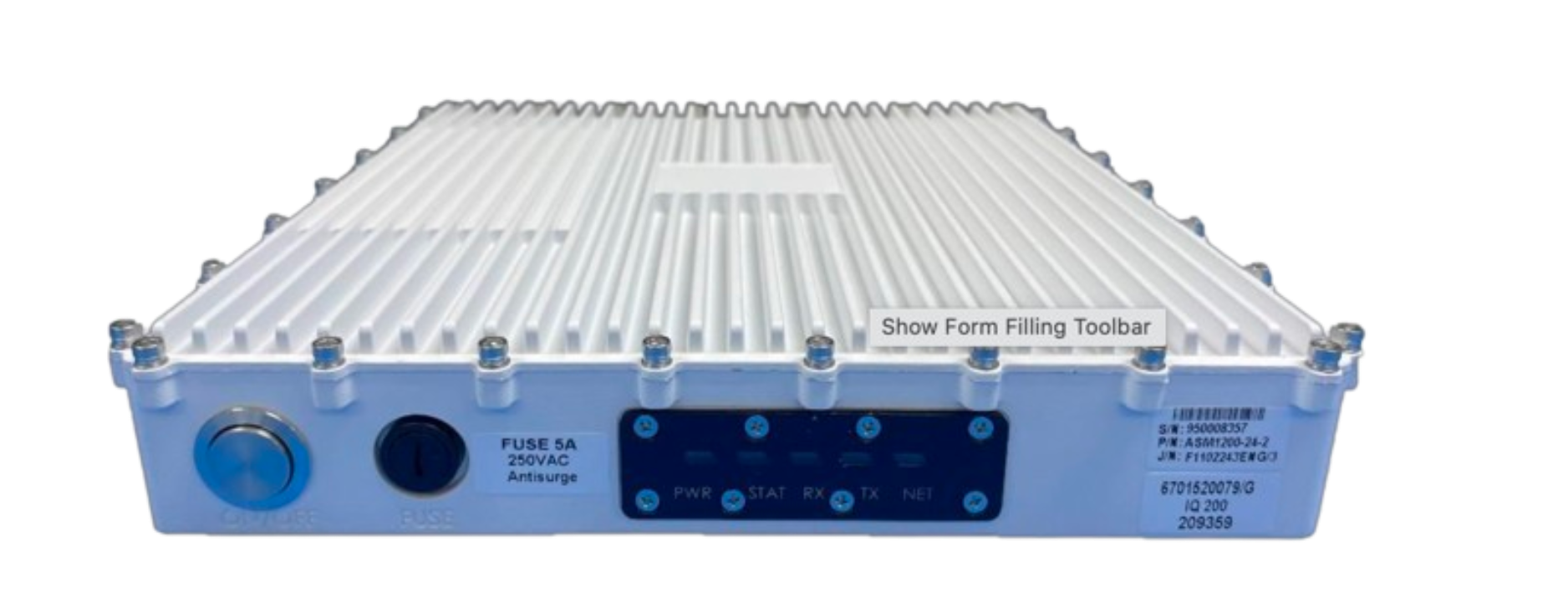

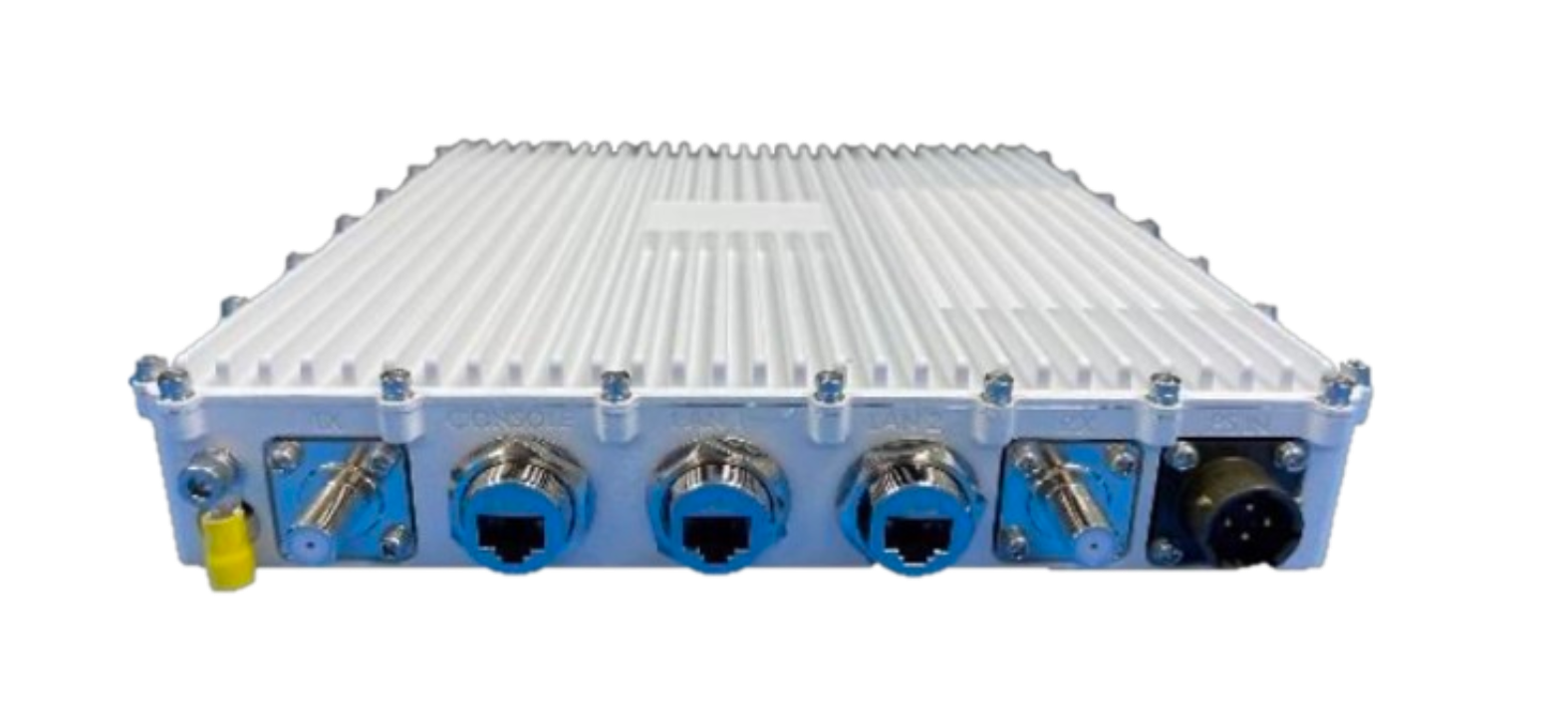

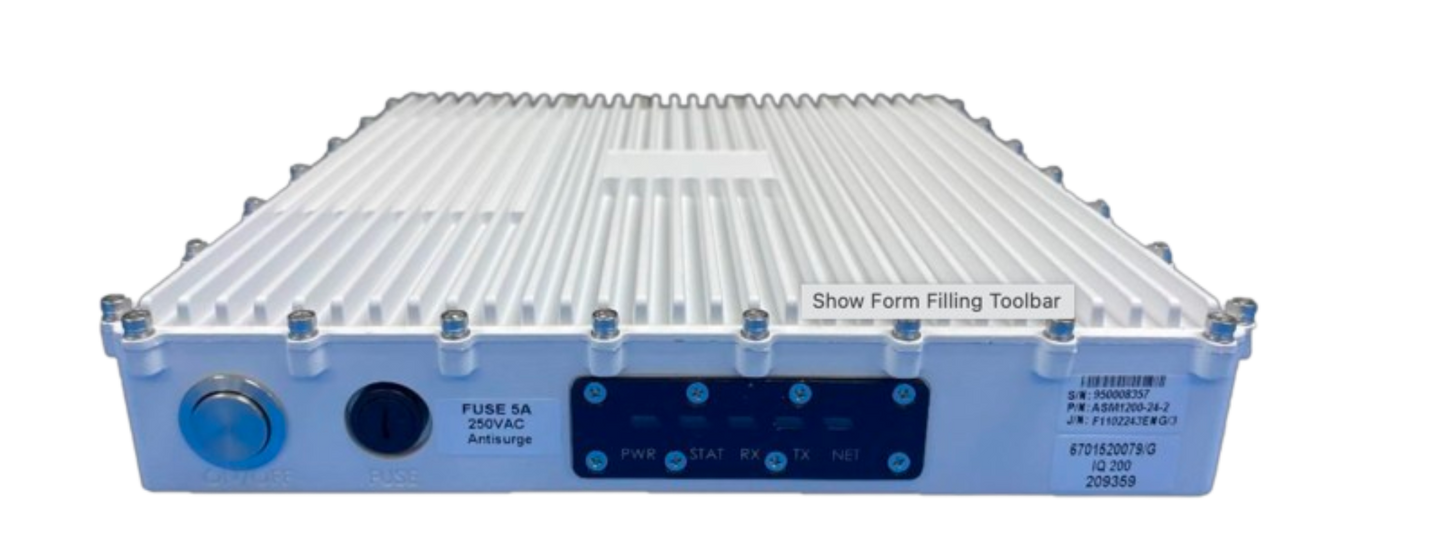

Agilis ASM1200-24 iQ200 Outdoor Satellite Modem
Agilis ASM1200-24 iQ200 Outdoor Satellite Modem
Couldn't load pickup availability
The Agilis ASM1200-24 is a next-generation, rugged, and compact outdoor satellite modem solution designed for the most demanding enterprise, government, mobile, and maritime connectivity needs. Integrated with the powerful iDirect iQ200 platform, this high-performance device supports a wide range of applications including VSAT networks across C, Ku, and Ka bands.
Whether you’re managing critical communications in remote areas, running enterprise-grade services, or supporting mobile networks on land or sea — the ASM1200-24 is your go-to modem for efficient, scalable, and reliable broadband satellite IP connectivity.
🌟 Key Features
-
🛰️ Supports DVB-S2/S2X with Adaptive TDMA (A-TDMA) return channels
-
🔐 Optional 256-bit AES Link Encryption for secure data transmission
-
🌐 Layer 2 and Layer 3 network optimization
-
☁️ Ideal for cellular backhaul, land-mobile, enterprise, and maritime use
-
⚙️ Built-in router functions with VLAN, NAT, DHCP, QoS
-
🔄 Dual mode: Compatible with Evolution and Velocity platforms
-
⚡ IP67 weatherproof design for extreme conditions (-20°C to +60°C)
-
🔌 Supports 10/50MHz reference for BUC and 13/18V LNB
-
🧠 OpenAMIP compatible for antenna control systems
-
✅ RoHS compliant and fully tested under harsh conditions
📊 Technical Specifications
|
Category |
Specification |
|---|---|
|
Network Compatibility |
iDirect Evolution and Velocity Networks |
|
Outbound |
DVB-S2/S2X, ACM, Modulation: QPSK–256APSK, Symbol Rate: 5–100 Msps |
|
Inbound |
Adaptive TDMA, Modulation: SS-BPSK to 16QAM, Symbol Rate: 128 Ksps–15 Msps |
|
Spread Spectrum |
Spreading Factor: 2, 4, 8; Up to 7.5 Mcps |
|
TX Interface |
F-Type 75Ω, 950–2400 MHz, -35 dBm to 0 dBm, 0.5 dB steps, BUC Power: +24V @ 2.3A |
|
RX Interface |
F-Type 75Ω, 950–2150 MHz, LNB Power: 13/18V @ 0.5A |
|
Data Ports |
2x RJ45 Ethernet (10/100/1000 Mbps), Protocols: TCP, UDP, DHCP, IPv4, NAT, etc. |
|
Security |
256-bit AES (optional), QoS, Static/Dynamic CIR |
|
Power Input |
24 VDC (22.8–25.2V), Typical Current: 0.63 A, Power Consumption: 15 W |
|
Environmental |
IP67, Operating Temp: -20°C to +60°C, Humidity: up to 100% |
|
Dimensions |
230 x 230 x 43 mm (LxWxH), Weight: 2.5 kg / 5.5 lbs |
🛒 Available Now at VSATplus
The Agilis ASM1200-24 is now available at VSATplus. We offer global shipping, expert consultation, and dedicated customer support to help you select and deploy the best satellite solution for your project.
