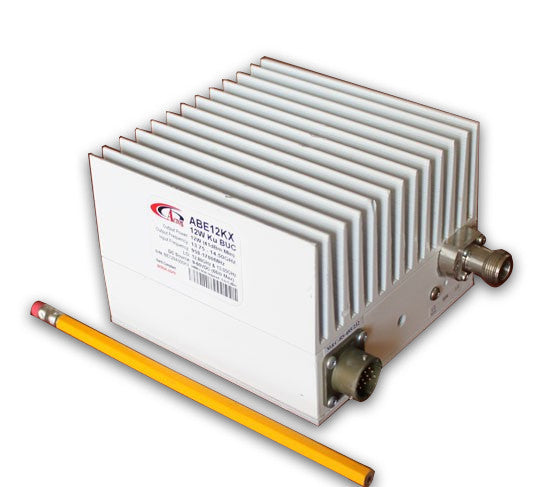

Actox ABE12KX / ABE12KXF - 12W Fanless Ext. Ku-Band Block Up Converter

Actox ABE12KX / ABE12KXF - 12W Fanless Ext. Ku-Band Block Up Converter

12W Ku-Band BUCs

Features Output frequency 13.75-14.50 GHzBased on GaN technology which enables high efficiency, low energy consumption and high reliabilityDouble - L.O. (electronically and manually switchable 12.80 and 13.05 GHz)Extreme P-Out GaN linearityAuto-ranging power 15-60 VDCDigital temperature compensationL.O. lock and amplifier LEDField-exchangeable...

  • Category: All Products, Featured products, Ku-Band Block Upconverter BUC

Features

  • Output frequency 13.75-14.50 GHzBased on GaN technology which enables high efficiency, low energy consumption and high reliabilityDouble - L.O. (electronically and manually switchable 12.80 and 13.05 GHz)Extreme P-Out GaN linearityAuto-ranging power 15-60 VDCDigital temperature compensationL.O. lock and amplifier LEDField-exchangeable (F/N) IF connectorM&C - combined RS-232/485, FSK, Ethernet (optional)RoHS CompliantThree-year warrantyInternal 10MHz high stability 10-8 reference (optional)
  • Output frequency 13.75-14.50 GHz
  • Based on GaN technology which enables high efficiency, low energy consumption and high reliability
  • Double - L.O. (electronically and manually switchable 12.80 and 13.05 GHz)
  • Extreme P-Out GaN linearity
  • Auto-ranging power 15-60 VDC
  • Digital temperature compensation
  • L.O. lock and amplifier LED
  • Field-exchangeable (F/N) IF connector
  • M&C - combined RS-232/485, FSK, Ethernet (optional)
  • RoHS Compliant
  • Three-year warranty
  • Internal 10MHz high stability 10-8 reference (optional)

Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABE12KX

13.75 to 14.50 GHz

12.80 & 13.05 GHz

950 to 1,700 MHz

12W (+41 dBm min.)

N-type

ABE12KXF

13.75 to 14.50 GHz

12.80 & 13.05 GHz

950 to 1,700 MHz

12W (+41 dBm min.)

F-type



Parameter

Value

Output interface

Waveguide, WR-75 G

Output power

+41 dBm minimum over temperature

Conversion gain

62 dB typ.

Required frequency

External reference input power

Phase noise

10 MHz (sine-wave)
-5 to +5 dBm @ input port
-53 dBc/Hz max. @ 10 Hz
-63 dBc/Hz max. @ 100 Hz

-73 dBc/Hz max. @ 1 KHz

-83 dBc/Hz max. @ 10 KHz

-93 dBc/Hz max. @ 100 KHz

-113 dBc/Hz max. @ 1 MHz

Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max

Parameter

Value

Power option

+15~+60 VDC via IF cable, 60 W max

Mute

Shut off the HPA in case of LO unlocked

Input interface

N-type, or F-type

M&C

RS-232 and RS-485

FSK

Multiplexed on TX IFL, compatible with Comtech and Paradise

Power consumption

60 W max

Operating temperature

-40 to +55 degrees C

Storage temperature

-55 to +85 degrees C

Size(mm)

120 (L) x 120 (W) x 87 (H)

Weight(kg)

1.8 (4.0 lbs) (max.)
