3M™ Linerless Electrical Rubber Splicing Tape 3/4 in x 30ft (19.1mm x 9.1m x 0.762mm)
3M™ Linerless Electrical Rubber Splicing Tape 3/4 in x 30ft (19.1mm x 9.1m x 0.762mm)
Crimping Tools
Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance Provides an excellent thermal dissipation of splice heat Excellent electrical and mechanical properties offer a moisture seal and void-free buildups Withstands temperatures up to 194 °F...
USD 15.00
- SKU::
- Category: Accessories, All Products, Installation Accessories
- Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
- Provides an excellent thermal dissipation of splice heat
- Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
- Withstands temperatures up to 194 °F (90 °C)
- ASTM Approved and RoHS 2011/65/EU Compliant

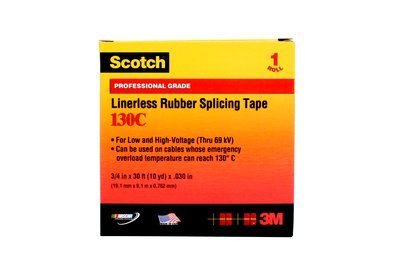

Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
Scotch® Tape 130C is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and a self fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV. This tape is designed for low and high voltage, bus bar insulation, end sealing of cables and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void free buildups. ASTM Approved and RoHS 2011/65/EU Compliant.
| Adhesive Material | Rubber Resin |
| Application | Insulation |
| Application/Industry | Appliance and Fixture, Commercial Construction, Communications, Industrial Construction, Maintenance and Repair Operations, Mining, Solar, Utility, Wind Power |
| Backing Material | Ethylene Rubber |
| Backing Thickness (Metric) | 0.76 mm |
| Brand | Scotch® |
| Breaking Strength (Imperial) | 7.5 lb/in |
| Case Quantity | 24 Rolls |
| Color | Black, Black |
| Dielectric Strength | 750 V/mil |
| Dielectric Strength (V/mil) | 750 |
| Elongation | 850 % |
| Elongation at Break | 850% |
| Emergency Overload Temperature (Celsius) | 130°C |
| Emergency Overload Temperature (Fahrenheit) | 266°F |
| High Temperature Rating | 194°F (90°C) |
| Insulated | Yes |
| Insulation Resistance | >10^15 Ohm |
| Length | 30 Linear Foot |
| Length (Metric) | 9.1 m |
| Liner/Linerless | Linerless |
| Material | Linerless EPR |
| Maximum Operating Temperature (Celsius) | 90 Degree Celsius |
| Maximum Operating Temperature (Fahrenheit) | 194 Degree Fahrenheit |
| Operating Temperature (Celsius) | Up to 90 °C |
| Operating Temperature (Fahrenheit) | Up to 194 °F |
| Product Markets | Electrical Construction, Electrical MRO, Power Distribution |
| Product Type | Rubber and Splicing Tapes |
| RoHS 2011/65/EU Compliant | Yes |
