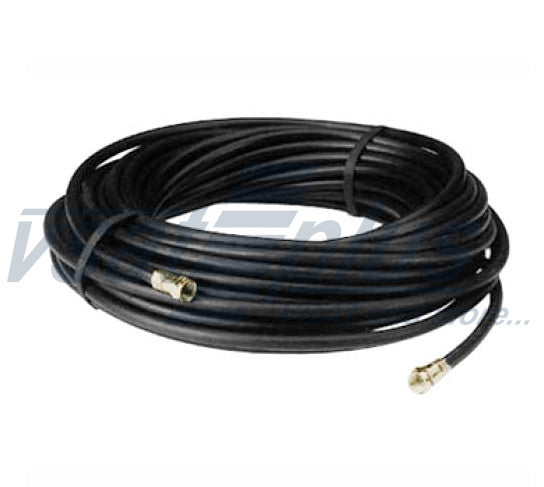

30 meters Commscope RG-6 Coaxial Cables w/ F-Type Connectors

30 meters Commscope RG-6 Coaxial Cables w/ F-Type Connectors

Cables and Connectors

DESCRIPTION COMMSCOPE RG-6 SAT 660.BV COAXIAL CABLE 30 METERS CommScope is dedicated to cabling innovations. Our engineers participate in industry standards groups and critical committees. Bringing to market the most comprehensive choice of quality cable remains a primary focus. Our...

  • Category: All Products, Commscope, Installation Accessories, On-sale Products, Top Selling Products

DESCRIPTION

COMMSCOPE RG-6 SAT 660.BV COAXIAL CABLE 30 METERS

CommScope is dedicated to cabling innovations. Our engineers participate in industry standards groups and critical committees. Bringing to market the most comprehensive choice of quality cable remains a primary focus. Our products meet the requirements of existing electronics, yet empower service providers to push the limits of today's services.

PRODUCT DESCRIPTION

BONDED LAMINATED ALUMINUM TAPE, 60% BRAID, AMORPHOUS

POLYPROPYLENE FLOODING COMPOUND, PVC JACKET

CENTER CONDUCTOR



14 AWG COPPER COVERED STEEL

NOMINAL DIAMETER: 0.064” (1.63 mm)

18 AWG HARD DRAWN COPPER
NOMINAL DIAMETER: 0.040” (1.02 mm)

DIELECTRIC



GAS EXPANDED POLYETHYLENE

NOMINAL DIAMETER OVER DIELECTRIC: 0.180” (4.57 mm)

SHIELD



1ST SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC

 NOMINAL DIAMETER OVER TAPE: 0.187” (4.75 mm)

2nd SHIELD: 34 AWG ALUMINUM BRAID WIRE 60% COVERAGE

JACKET

PVC

NOMINAL DIAMETER OVER JACKET: 0.272” (6.91 mm)

NOMINAL JACKET THICKNESS: 0.030” (0.76 mm)

CORROSION RESISTANT TREATMENT

AMORPHOUS POLYPROPYLENE FLOODING COMPOUND

ELECTRICAL PROPERTIES

IMPEDANCE

75.0 +/- 3.0 Ohms

VELOCITY OF PROPAGATION

85.0% NOMINAL

STRUCTURAL RETURN LOSS

5 MHz to 1000 MHz ≥ 20 dB 1000 to 3000 MHz ≥ 15 dB

NOMINAL DC RESISTANCE (Ohms/km)

CENTER CONDUCTOR: 21.5 OUTER CONDUCTOR: 34.4

ATTENUATION

@ 68°F (20°C)



PPC EX6XL RG-6 EX® Universal Compression Connectors

EX® universal compression connectors for 6 & 59 series cable

 Installers are faced with the problem of identifying old unmarked 60% through Quad Shield Series 6 cable, and having to guess which connector is the best match. This results in unnecessary service calls due to the use of the wrong connector/cable match.
The unique patented design of the EX® body achieves true universality on 60% through Quad Shield for PE, and PVC jackets for 6 and 59 series cable.
Product Specifications

  • Bandwidth: 0 MHz to 3 GHz
  • Impedance: 75 Ohms
  • Return Loss: Minimum -30 dB to 3 GHz
  • Insertion Loss: Less than .10 dB to 3 GHz
  • Operating Voltage: 90 V (at 60 Hz continuous AC)
  • Operating Temperature: -40°F to +140°F ( -40°C to +60°C)
  • Cable Retention: 45 lbs (20.41 kg) minimum
  • Meets or exceeds all SCTE Specifications

Preparation and Installation Tools

  • ¼ - ¼" universal drop cable preparation tool: LDT596-250, DDT59611
  • 7/16" snap torque wrench: TW207, TW307, TW307 AH
