  • iDirect 3100 Remote Satellite Router

    Posted on by VSATplus Shop

    iDirect 3100 Remote Satellite Router

    Key Features

    • Star topology
    • High data rates 18 Mbps outbound, 5 Mbps return
    • Low cost of entry
    • Built-in TCP and HTTP acceleration
    • Advanced QoS and prioritization
    • MF-TDMA return channel achieving 98% payload efficiency
    • Automatic End-to-End Uplink Power Control for higher network availability

    IDirect 3100 Satellite Router

    Optimized for remote internet access, the iDirect iNFINITI 3100 Satellite Router is an ideal solution for small to medium enterprise customers with basic remote networking needs.

    Delivering Reliable, High-Speed IP Broadband Connectivity for Enterprise Networks

    The iNFINITI 3100 supports reliable, two-way IP traffic ideal for high-speed enterprise networking applications including VoIP, internet access, VPN, file transfer, multicasting, and videoconferencing.

    The 3000 Series is a star-topology remote satellite router designed as an easy-to-deploy solution that integrates a satellite modem, IP router, TCP acceleration, and advanced QoS and prioritization capabilities. IP over Ethernet makes it easy to integrate the iNfiniti 3000 Series into enterprise networks.

    Network Topology
    Star (TDM/MF-TDMA)
    Modulation
    Downstream BPSK, QPSK, 8PSK
    Upstream BPSK, QPSK
    Maximum Rates
    Max Rate
    Symbol rate

    Info Rate

    IP data rate

    Downstream (TDM) Upstream (D-TDMA)
    Up to 11 Msps
    (QPSK, .793 FEC)
    Up to 5 Msps
    (QPSK, .793 FEC, unlimited NMS)
    Up to 18 Mbps
    (QPSK, .793 FEC)
    Up to 8 Mbps
    (QPSK, .793 FEC, unlimited NMS)
    Up to 17.5 Mbps
    (QPSK, .793 FEC)
    Up to 5 Mbps
    (QPSK,.793 FEC, unlimited NMS)
    For more information on maximum data rates please refer to the Release Notes of iDS 8.0.1
    FEC
    For full list please refer to the latest iDirect Link Budget Analysis Guide
    Eb/N0
    For full list please refer to the latest iDirect Link Budget Analysis Guide
    Interfaces
    TxIF Type-F, 950–1700 MHz, Composite Power +7dBm / -35dBm
    RxIF Type-F, 950–1700 MHz, Composite Power -5dBm / -65dBm
    TVRO Type-F, 950–1700 MHz
    Available BUC Power (IFL)
    +24V (supports BUCs up to 4W Ku-band or 5W C-band)
    Available LNB Power (IFL)
    +19.5V (Nominal)
    10 MHz Reference
    Software controllable on Tx and Rx IF ports
    Data Interfaces
    LAN Single 10/100 Ethernet, 802.1q VLAN
    RS-232 RJ45 (for GPS or Console Connection or Antenna Pointing)
    Protocols Supported
    TCP, UDP, ACL, ICMP, IGMP, RIP Ver2, BGP, Static Routes, NAT, DHCP, DHCP Helper, Local DNS Caching, cRTP and GRE
    Traffic Engineering
    Group QoS, QoS (Priority Queuing and CBWFQ), Strict Priority Queuing, Application Based QoS, Minimum CIR, CIR (Static and Dynamic), Rate Limiting
    Other Features
    Built-in Automatic Uplink Power, Frequency and Timing Control, Authentication, Antenna Control Interface (OpenAMIP)
    Mechanical / Environmental
    Size W 11.5 in x D9.5 in x H2 in.
    (W 29.2 cm x D24.1 cm x H5.1cm)
    Operating Temperature 0˚ to +50˚C (32˚ to +122˚F) at Sea Level with temperature gradient of 5˚C per 10mins
    0˚ to +45˚C (32˚ to +113˚F) at 10000 feet (3048m) with temperature gradient of 5˚C per 10mins
    Humidity Max 90% non-condensing humidity
    Input Voltage 100–240 VAC Single Phase, 50–60 Hz, 2A max at 90 VAC, 1A max at 240 VAC
    Radio Standards EN 301-428 v1.3.1 — Ku-Band System Level Specifications
    EN 301-443 v1.3.1 — C-band System Level Specifications
    Safety Standards Complies with IEC 60950, EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1-03
    Emission Standard Complies with EN 55022 Class B, FCC Part 15 Class B, CISPR 22 Class B, EN 61000-3-2, EN 61000-3-3
    EMC/Immunity Standard Complies with EN 55024, EN 301-489-1, EN 301-489-12, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
    Certification FCC, CE and RoHS compliant

     iDirect 3100 Remote Satellite Router Datasheet

    Read more

  • Newtec MDM2210 IP Satellite Modem

    Posted on by VSATplus Shop

    Newtec MDM2210 IP Satellite Modem

    KEY FEATURES

    • Small size, table top or wall mounted
    • DVB-S2 ACM Forward
    • 4CPM MF-TDMA Adaptive Return Link
    • Embedded TCP acceleration and encryption
    • Multi-level Quality of Service
    • Versatile IP routing and addressing
    • Low jitter for real time applications
    • DNS Cache/Relay and HTTP pre-fetching
    • Support of IPv4 and IPv6
    • MicroSD card and USB interface (future use)
    • Over-the-air software upgradeability
    • Over-the-air monitoring and diagnostics tools

    Trump cards are its easy installation and efficient modulation techniques enabling network operators to offer IP broadband services in a cost effective way.

    Main advantages
    • Low initial investment per user, thanks to a very low terminal cost and unique Point & Play easy - installation capability
    • Easy to use web GUI for installation, diagnostics and troubleshooting
    • Adaptive Return Link based on different 4CPM modulations/coding and multiple channel bandwidths.
    • High service satisfaction ensured through true broadband experience
    • Optimal availability and efficiency of DVB-S2 transmission thanks to Newtec’s technologies FlexACM® and ThiMM
    • Efficiency improvement of 10 to 15% with Newtec’s Clean Channel Technology®

    •   Max RX rate UDP             up to 20 Mbps total (unicast or multicast)

    •   Max TX rate TCP               up to 3.5 Mbps

    •   Max TX rate UDP              up to 3.5 Mbps

    Modem Interfaces

    RF INPUT/OUTPUT:

    •   Connector:                     Two F

    •   Impedance:                  75 Ohm

    •   RF in Frequency:                950 – 2100MHz (L-band)

    •   Rx Level:                        -65 to -25dBm

    •   RF out Frequency:             2750 – 3000MHz

    •   Tx Level:                           0 dBm

    LOCAL AREA CONNECTION     1 x 10/100 TX (RJ-45)

    USB                                       USB 2.0 (future use)

    MASS STORAGE                      MicroSD card (future use)

    Mechanical & Environment

    •  Housing                      170x150x32mm

    •   Weight                          450 g

    •  Operating temperature  0 to 40°C

    •   Humidity                       5% - 95% non-condensing

    Power supply

    •   DC Power supply             18V or 24V (depending on iLNB)

    •  Mains adaptor input      mains AC, 50Hz\210-260V and 60Hz\100-130V

    •   Power consumption         <30 Watt (0.8W Ku iLNB), <60 Watt (2W iLNB)

    IP features

    •  Protocols:       UDP, IPv4 & IPv6, ICMP, IGMPv2, TCP, ARP, DHCP, DNS, DiffServ Marking

    Management Interfaces

    •  Web GUI

    •  Over-the-air software & configuration updates

    • Over-the-air monitoring, self-test and diagnostics

    Software release

    • Specifications valid for Sat3Play© software release 2.2

    Standards

    •  EN 302307     DVB-S2

    •  EN 301428   Ku-band VSAT spectrum usage

    •  EN 301459   Ka-band VSAT spectrum usage

    •  IEEE 802.3    10T Ethernet

    •  IEEE 802.3u  100TX Ethernet

    Satellite Link Interface

    FORWARD CARRIER (RX)

    • Standard                   DVB-S2 ACM
    • Modulation                  QPSK, 8PSK, 16APSK, 32APSK

    •   Coding                  1/4, 1/3, 2/5, 1/2,3/5, 2/3,3/4,4/5, 5/6, 8/9, 9/10

    •   Roll-off                     5, 10, 15, 20, 25 and 35 %

    • Symbol rate             3.6 - 63 Mbaud (up to 47Mbaud for 16APSK, up to 38Mbaud for 32APSK with 5/6)

    RETURN CARRIER (TX)

    • Modulation             4CPM (Quaternary Continuous Phase Modulation) with 6 different modcods, with Adaptive Return Link
    • Access Scheme         Multi Frequency TDMA (Timed Division Multiple Access)

    Channel bandwidth 128kHz to 4MHz

     Newtec MDM2210 on the Newtec Dialog Platform

    Read more

  • Blutect

    Posted on by VSATplus Shop

    BLUTECT is a patent-pending product designed to help people not to lose or forget their valuables. BLUTECT detects and protects your Bluetooth equipped belongings like key-chain, passport, glasses…,

    Other features:

    • It shows time
    • Fitness Tracker
    • Counts steps
    • Measuring heart rate

    It is a Fitness Tracker and Bluetooth Protector in one device.Blutect



    The official price for BLUTECT version 1 is $49 but you can enjoy %40 early bird discount. Pre-order it now for Only $29 before first 1000 early bird units sold out!

    Read more…

    Protect Passport



    The official price for BLUTECT version 1 bundle with Amazon bestseller Passport Cover (equipped with BLUTECT Bluetooth card) is $79 but you can enjoy %30 early bird discount. Pre-order it now for Only $54 before first 1000 early bird units sold out!

    Read more…

    Protect Keychain


    The official price for BLUTECT version 1 bundle with Tile Mate Bluetooth tag is $69 but you can enjoy %40 early bird discount and pre-order it at Only $44 to help us bring this product to the world sooner!

    You can order our brand Bluetooth tag for Only $39!

    If you need more tags please contact us.

    Read more…

    Protect Sunglasses



    The official price for BLUTECT version 1 bundle with Amazon bestseller sunglasses (equipped with Orbit Bluetooth tag) is $89 but you can enjoy %30 early bird discount and pre-order it at Only $69 to help us bring this product to the world sooner!

    Read more…

    *TILE and the TILE design are trademarks of Tile, Inc.
    *BLUTECT is a trademark of T-Wireless LLC

    Read more

  • Newtec SAT2200 Dialog Platform Satellite Terminal

    Posted on by VSATplus Shop

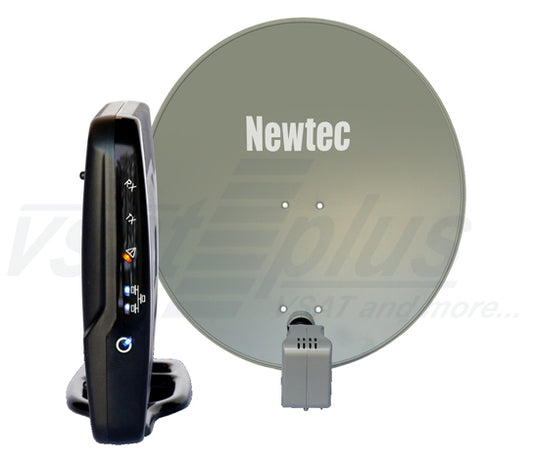

    Newtec SAT2200 Satellite Terminal

    The Newtec MDM2200 IP Satellite Modem is packaged with an easy to install and high performance Outdoor Unit (ODU). This terminal package is highly optimized for cost, efficiency and ease of use. The ODU consists of a high quality, easy to install antenna, an integrated transmitter and low noise block down converter (iLNB).

    Newtec SAT2200 Key Features

    • Small size, table top or wall mounted
    • DVB-S2 ACM Forward
    • 4CPM MF-TDMA Adaptive Return Link
    • Embedded TCP acceleration and encryption
    • Multi-level Quality of Service
    • Layer 2 and Layer 3 support with versatile IP routing and addressing
    • Low jitter for real time applications
    • DNS Cache/Relay and HTTP pre-fetching
    • Support of IPv4 and IPv6
    • Multiple virtual networks behind the modem
    • MicroSD card and USB interface (future use)
    • Over-the-air software upgradeability
    • Over-the-air monitoring and diagnostics tools
    • Dual satellite configuration settings

    Markets

    • Consumer
    • SOHO
    • SME
    • Government
    • Education
    • Enterprise

    Applications

    • Internet / intranet access
    • Streaming video and audio with TV quality
    • VoIP telephony (SIP, H.323, G.729, …)
    • Content Distribution and management
    • Telemetry (SCADA)
    • Point of Sale terminals
    • Banking

    Read more

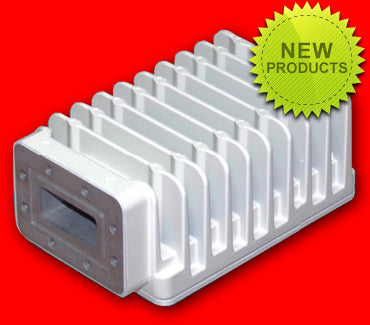

  • New Japan Radio NJT8102 Compact 2W Standard C-Band BUC

    Posted on by VSATplus Shop

    NJRC NJT8102F 2W Standard C-Band BUC

    Features

    • Output Frequency Range: 5.85 - 6.425 GHz
    • L.O. Frequency: 4.90 GHz
    • IF Frequency: 950 - 1525 MHz
    • Output Power @P1dB: +33.0 dBm min over temp
    • DC Power Input: 24V (+12 - 30V)
    • Input Connector: F-Type
    • Weight: 1.8 lbs (800g)



    NJT8102 General Specifications
    Output Interface Waveguide, WR75 with Groove
    Input Interface F-type, female (75 ohm)
    Output Power @ 1dB G.C.P. +34 dBm min. over temperature
    Linear Gain 58 dB typ., 51 dB min.
    ACPR -26 dBc typ. @ Pout = +34 dBm
    Requirement for External Reference
    Frequency 10 MHz (sine-wave)
    Input Power -5 to +5 dBm @ Input port
    Phase Noise -125 dBc/Hz max. @ 100 Hz
    -135 dBc/Hz max. @ 1 kHz
    -140 dBc/Hz max. @ 1 MHz
    L.O. Phase Noise -60 dBc/Hz max. @ 100 Hz
    -70 dBc/Hz max. @ 1 kHz
    -80 dBc/Hz max. @ 10 kHz
    -90 dBc/Hz max. @ 100 kHz
    -100 dBc/Hz max. @ 1 MHz
    Receive Band Noise Density -156 dBm/Hz max. @ 10.95 to 12.75 GHz
    Input V.S.W.R. 2:1 max.
    Output V.S.W.R. 2:1 max.
    Power Requirement DC Power, +24 V (Range: +12 to +30 V)
    Power Consumption 18W typ., 23 W max. @ Pout =+34 dBm
    15W max. @ No IF and +25°C
    2W max. @ 10 MHz Reference Off (Mute on)
    Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal
    Temperature Range (ambient)
        Operating
        Storage

    -40 to +55°C
    -40 to +75°C
    Humidity 0 to 100%
    Altitude 15,000 feet (4572m)
    Dimension & Housing 91.55 (L) x 68 (W) x 42.5 (H) mm (3.60" x 2.68" x 1.67")
    Weight 350 g (0.77 lbs)
