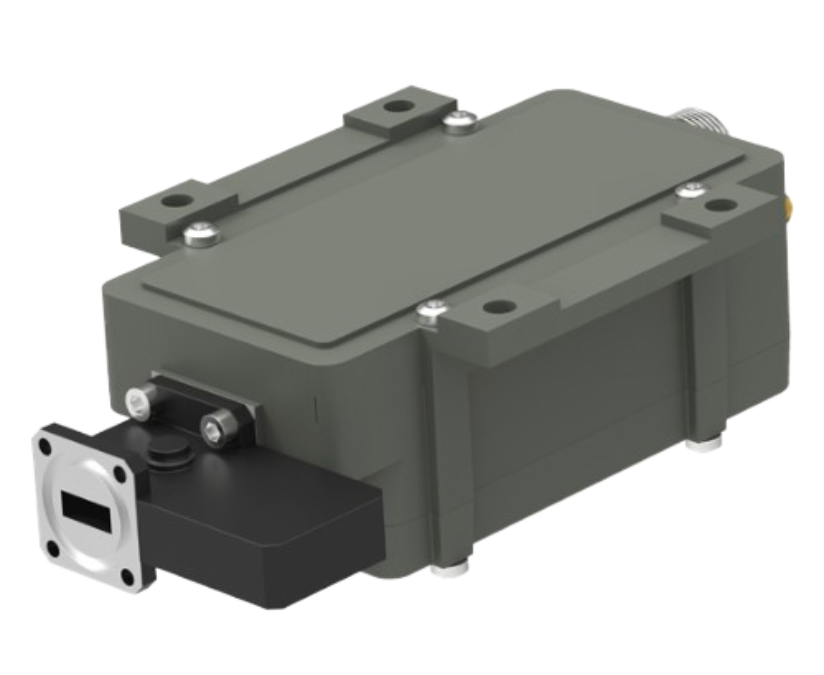

SMW Ka LNB 17.30–22.30 GHz 3–8 Band
SMW Ka LNB 17.30–22.30 GHz 3–8 Band
Couldn't load pickup availability

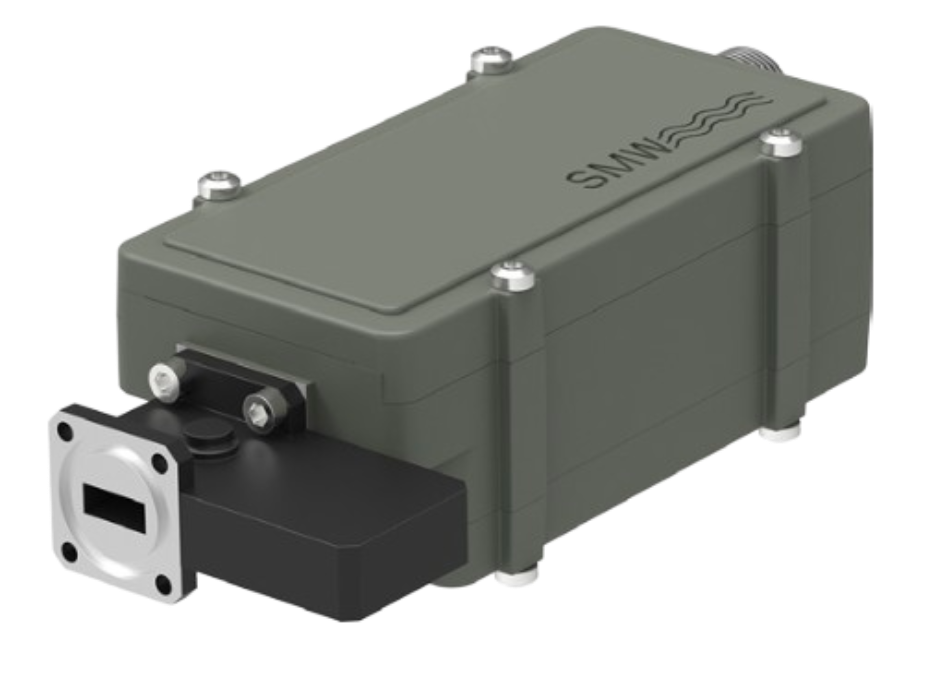

The SMW Ka LNB 17.30–22.30 GHz 3–8 Band, manufactured by Swedish Microwave AB, is a high-performance multiband Low Noise Block (LNB) designed for advanced satellite communication systems requiring flexible frequency selection, reliable signal conversion, and excellent phase noise performance. Supporting configurations from 3 to 8 selectable sub-bands, it enables system integrators and satellite network operators to tailor frequency coverage to specific operational requirements. Its low-loss isolator, automatic switching between internal and external frequency references, and compatibility with DVB-S2X profiles make it a versatile solution for demanding professional satellite applications.
Key Features
- Wide Ka-Band Coverage: Supports configurable sub-bands within the 17.30–22.30 GHz range, with input-frequency configurations available from 17.20 GHz.
- Flexible Band Switching: Switch between 3 and 8 sub-bands using legacy voltage/tone control or optional RS-485 Modbus RTU monitoring and control.
- Excellent Phase Noise: Designed to meet DVB-S2X profile requirements for demanding satellite reception applications.
- High Output Performance: Provides 60 dB typical gain, with a minimum of 55 dB, plus high output compression and intermodulation performance.
- Automatic Reference Selection: Automatically switches between an external 10 MHz reference and the internal reference.
- Low-Loss Isolator: Included to support input matching, with a maximum input VSWR of 1.35:1.
- Optional Monitoring and Control: Supports configurable alarm functions and remote monitoring through an optional M&C interface.
- Wide Temperature Range: Designed for operation and storage from -40°C to +80°C.
Applications
The SMW Ka LNB is suitable for professional satellite communication systems that require flexible Ka-band reception and configurable frequency conversion. Potential applications include satellite gateways, teleport facilities, high-capacity satellite networks, and specialized ground-segment installations. Its multiband architecture allows the receiver configuration to be adapted to the frequency plan and switching requirements of the intended system.
For installations requiring additional system visibility, the optional monitoring and control interface supports RS-485 Modbus RTU communication. Optional alarm functions can monitor conditions including LNA failure, total current, local oscillator lock status, signal power levels, and low supply voltage.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Product Type |
Ka-Band Multiband LNB |
|
Input Frequency |
Configurable sub-bands within 17.20–22.30 GHz |
|
Standard Product Range |
17.30–22.30 GHz |
|
Number of Bands |
3 to 8 selectable sub-bands |
|
Local Oscillator (LO) |
Customizable from 16.25 to 20.75 GHz |
|
Switching Method |
13/15/18/24 V and 22 kHz tone, or optional RS-485 Modbus RTU |
|
Input Waveguide |
WR42 |
|
Input Flange |
PBR220 |
|
Input VSWR |
1.35:1 maximum, with included low-loss isolator |
|
Gain |
60 dB typical; 55 dB minimum |
|
Noise Figure |
1.3–1.7 dB typical, increasing with input frequency |
|
Gain Flatness |
±0.4 dB within 30 MHz; ±2 dB maximum per band |
|
Phase Noise |
-35 dBc/Hz at 10 Hz; -65 at 100 Hz; -80 at 1 kHz; -85 at 10 kHz; -95 at 100 kHz; -112 beyond 1 MHz (typical) |
|
Group Delay |
±1 ns maximum |
|
Out-of-Band Rejection |
20 dB minimum |
|
IF Output |
950–1950 MHz or 1000–2000 MHz; 950–2250 MHz optional |
|
Output P1dB |
+15 dBm minimum |
|
Output IP3 |
+25 dBm minimum |
|
Output VSWR |
1.7:1 typical |
|
Output Connectors |
N-type 50 Ω, SMA-type 50 Ω, or F-type 75 Ω |
|
Reference Input |
External 10 MHz sine wave, -10 to +10 dBm |
|
DC Input |
+11 to +26 V |
|
Monitoring & Control |
Optional RS-485 Modbus RTU |
|
Alarm Output |
Optional configurable alarm output |
|
Dimensions |
153 × 68 × 45 mm, including isolator |
|
Weight |
375 g with SMA connector, including isolator |
|
Operating Temperature |
-40°C to +80°C |
|
Storage Temperature |
-40°C to +80°C |
Specifications are typical and may vary by configuration or part number. Custom local oscillators, gain settings, IF ranges, and other options are available subject to manufacturer confirmation.
Why Choose the SMW Ka LNB from VSATplus?
The SMW Ka LNB 17.30–22.30 GHz 3–8 Band combines multiband flexibility, strong RF performance, and optional monitoring capabilities in a compact design. Its configurable band selection makes it suitable for satellite operators and integrators who need a receiver tailored to their frequency plan and system architecture.
VSATplus supplies professional satellite communication equipment and can assist with product selection, configuration requirements, pricing, and availability. Contact our team to discuss the appropriate band configuration, connector type, reference input, and optional monitoring features for your application.
Request a Quote from VSATplus today for the SMW Ka LNB 17.30–22.30 GHz 3–8 Band and find the right configuration for your satellite communication system.
