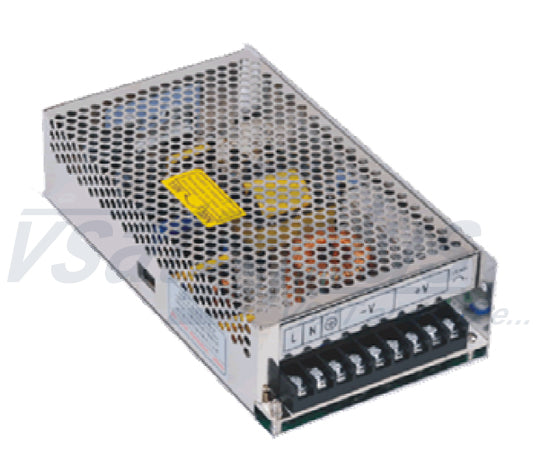

Meanwell 200W 48VDC Indoor Power Supply

Model

HS-200-48

output

DC voltage

48V

Voltage tolerance

±1%

Rated current

4.2A

Current range

0~4.2A

Rated power

201.6W

Ripple&noise

240mvp-p

input

Voltage range

180~264VAC, 255~373VDC

Frequency

47~63HZ

AC current

2.5A/230VAC

Efficiency

84%

Inrush current

Cold start current 40A/230VAC

Leakage current

<3.5mA/240VAC

protection

Over load

Rated output power 105%~150%start over load protection

protection type: hiccup mode, auto-recovery after fault condition is removed

Over voltage

54.8~56.6V

protection type: hiccup mode, auto-recovery after fault condition is removed

Over temperature

Shell temp>50°C, start over temperature protection

protection mode: cutoff output, auto-recovery after temperature become normal

environment

Working temp, humidity

-10°C~+60, 20%~90%RH

Storage temp.humidity

-20°C~+85, 10%~95%RH non condensing

Withstand vibration

10~500HZ, 2G 10min/1cycle, period for 60minutes, each axes

safety

Withstand voltage

I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

Isolated resistance

I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC

fit standard

Safety standard

Fit UL1012, IP67 protect level

eMC standard

Fit EN55022, CLASS A

others

Dimension

119×110×50mm

Weight/packing

0.85kgs

note

1. All parameters NOT specially mentioned are measured at 230VAC input,
rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using
a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
