Starlink

Starlink Flat High Performance

Starlink Flat High Performance

Request for a quote

Unlock the future with our Flat High-Performance Applications. Crafted for mobility and rugged terrains, our technology offers a world of possibilities.

🌐 Seamless Mobility: With an expansive field of view and advanced GPS capabilities, our system connects to a constellation of satellites. Stay connected on the move like never before.

🛠️ Built to Last: Designed for permanent installation, our hardware thrives in extreme environments. It's tough, reliable, and ready for any challenge.

🌍 Global Connectivity: We're proud to be the exclusive choice for in-motion use in approved countries. Experience the difference.

What's Inside Your Kit:

📡 Starlink: Your window to high-speed internet.
🔩 Wedge Mount Kit: Secure your connection.
🌐 Router: The heart of your network.
🧱 Router Mount: Keep things organized.
🔌 Power Supply: For uninterrupted performance.
🧲 Power Supply Mount: Neat and tidy.
🔌 Cables: Connect with ease.


STARLINK FLAT HIGH PERFORMANCE KIT

ANTENNA


Antenna
Electronic Phased Array
Field of View 140°
Orientation Fixed
Environmental Rating IP56
Operating Temperature -30°C to 50°C (-22°F to 122°F)
Wind Speed Survivable: 280 kph+ (174 mph+)
Snow Melt Capability Up to 75 mm / hour (3 in / hour)

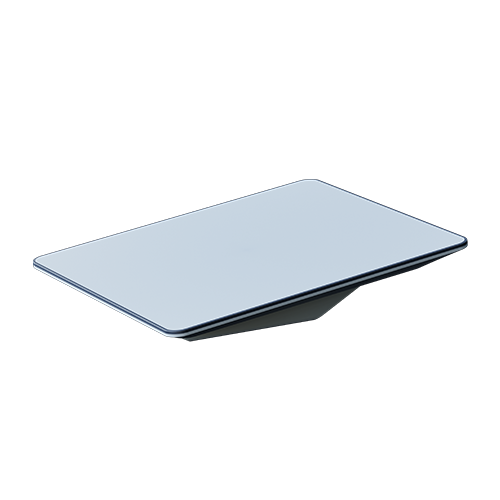

Mounting Wedge Mount Kit Included
Average Power Usage 110-150W



STARLINK WIFI ROUTER


 Wi-Fi Technology IEEE 802.11a/b/g/n/ac standards
Generation Wi-Fi 5
Radio Dual Band -3 x 3 MIMO
Operating Temperature -30°C to 50°C (-22°F to 122°F)
Weight 1 kg (2.2 lbs)
Security WPA2
Range Up to 185 m² (2000 ft²)
*Varies on placement, interference, and building materials
Environmental Rating IP54 - Configured for Indoor Use
Power Indicator White LED | Base of Router
Mesh Compatibility Compatible with up to 12 Starlink Nodes
Devices Connect up to 128 devices



STARLINK POWER SUPPLY

STANDARD STARLINK CABLE

 End Pin Ethernet Pin Wire Color Pin End
Dish A1, A2 B+ Orange White A1, A2 Wi-Fi
A3, A4 B- Orange A3, A4
A5, A6 A+ Green White A5, A6
A7, A8 A- Green A7, A8
B1, B2 -- N / C B1, B2
B3, B4 -- N / C B3, B4
B5 D+ Brown White B5
B6 D- Brown B6
B7 C- Blue White B7
B8 C+ Blue B8
B9, B10 -- N / C B9, B10
B11, B12 -- N / C B11, B12
Shield Can Drain Wire Shell
