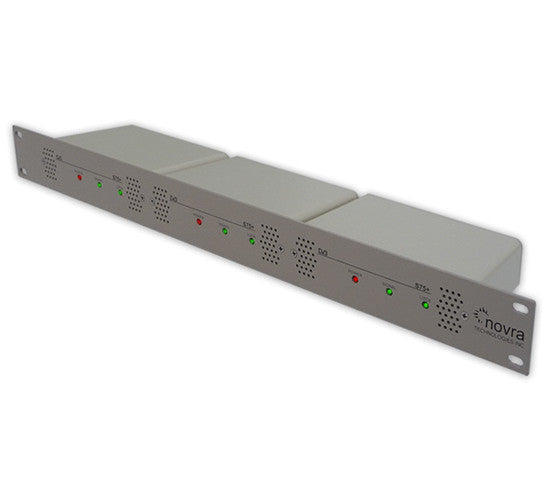

Novra S75-CA DVB-S Satellite Data Receiver
Novra S75-CA DVB-S Satellite Data Receiver
SKU: NOV-S75CA
Couldn't load pickup availability
Novra S75-CA DVB-S Satellite Data Receiver
The S75CA provides all the functions and features of the S75+ and S75-Pro receivers, plus it adds a DVB-Compliant conditional access Common Interface (DVB-CI) slot. The inclusion of the DVB-CI slot provides a cost-effective means to provide compatibility with the vast majority of DVB conditional access systems.
The S75CA is ideally suited as a video aggregation point for your IPTV network where distribution over LAN is desired and the content is scrambled with a DVB conditional access system. The S75CA is typically deployed along side the S75-Pro into head-end networks such as hotel or cruise ship infotainment, IPTV service, or cable TV service head ends.
| RF Tuner | |
|---|---|
| Receiving Frequency | 950 to 2150 MHz |
| Frequency Acquisition | ± 50% Symbol Rate up to ±10 MHz |
| Input Signal Level | -65 dBm to -25 dBm |
| QPSK | |
| Symbol Rate: | 1.5 to 45 Msps |
| Data Rate: | 70 Mbps |
| Root-Raise Cosine Filter with Roll-o 0.35 | |
| DVB Signalling | |
| FEC | |
| Decoding: | Viterbi/Reed-Solomon |
| Viterbi Inner Code: | K=7, R=1/2, 2/3, 3/4, 5/6, 7/8 (Auto Detection) |
| Reed-Solomon Decoding: | 204, 188, T=8 |
| Deinterleaving: | Interleaving Depth=12 |
| LNB Power and Control | |
| LNB Supply Voltage | Selectable 13/18V, 11/15V or off |
| LNB Supply with selectable long line compensation | |
| LNB Control | Selectable 22 KHz, 44 KHz or off |
| LNB Supply Current | 400 mA with Short Circuit and Surge Protection |
| Configuration | |
| IP Address Configuration | |
| PID Selection | |
| LNB Power | |
| Transponder Settings | Symbol Rate, Frequency, Polarization, Band, Power |
| Management Console Application Currently Available as both an Executable and a DLL for MS Windows |
|
| Status Monitoring | |
| Signal Strength | |
| Signal Lock, Data Lock | |
| Error status | Viterbi BER, Uncorrectable Errors |
| Status Indicators | |
| Power | Red LED |
| Lock | Green LED |
| Data | Blue LED |
| Ethernet Link (green) and Transmit (yellow) | |
| Hardware Capabilities | |
| Multiprotocol Encapsulation (MPE) | |
| PID Filters | 16 |
| Internal Hardware Watchdog | |
| Non-Volatile Configuration Storage | |
| Field upgradeable operating system for new s/w releases and functional upgrades |
|
| Operating Systems | |
| Once Congured, is OS Independent | |
| Physical Interfaces | |
| RF Input Connector | F-Type, 75 ohms |
| Ethernet 100 Base-T LAN Interface | RJ-45 |
| Physical/Environmental | |
| Height | 1.41 in (3.58 cm) |
| Width | 5.22 in (13.26 cm) |
| Depth | 4.10 in (10.42 cm) |
| Operating Temperature | 0C to 40C |
| Storage Temperature | -55C to 85C |
| Operating Humidity | 10 to 90% Non-Condensing |
| Standards/Regulatory | |
| UDP/TCP/IP Protocol | |
| IP Multicast | |
| IGMP | V1.0, V2.0 |
| ETSI 301.192 DVB | |
| ISO/IEC 13818-1 | |
| ISO/IEC 13818-6 | |
| IEEE 802.3 10/100 Mbps | |
| FCC/Industry Canada CE | |
| Emission EN 55022 | |
| Immunity EN 55024 | |
| Safety EN 60950 | |
