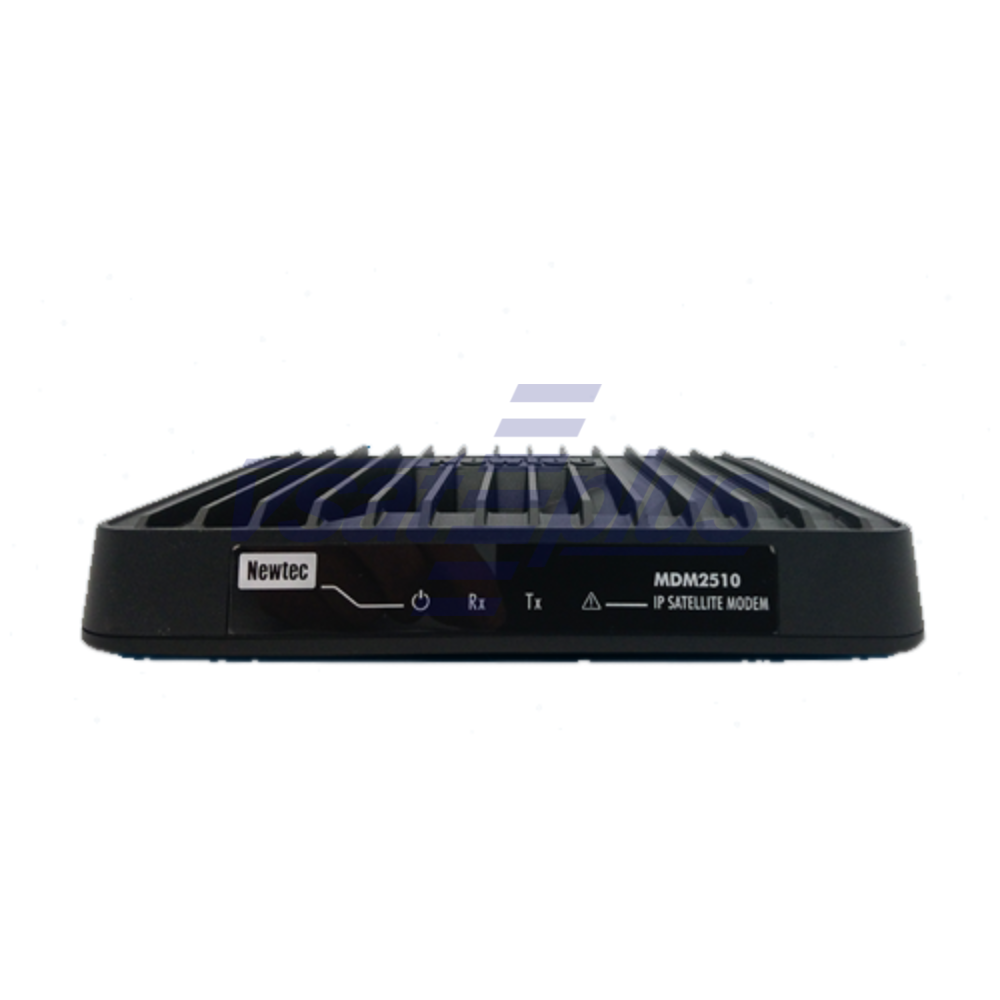

iDirect/ST Engineering MDM2510 Satellite Modem

iDirect/ST Engineering MDM2510 Satellite Modem

Request for a quote

The MDM2510 is a compact, low power consumption modem, perfectly suited to service Small Office and Home Office (SOHO) customers and Small and Medium Enterprises (SMEs). The modem features high throughput DVB-S2X and Dialog’s three return waveform technologies: MF-TDMA, high-rate SCPC and Mx-DMA which seamlessly combines MF-TDMA flexibility with on-demand variable bandwidth allocation of SCPC while guaranteeing the highest efficiency and availability.

The MDM2510 is a compact, low power consumption modem, perfectly suited to service Small Office and Home Office (SOHO) customers and Small and Medium Enterprises (SMEs). With data rates up to 150 Mbps, the MDM2510 also supports applications such as Point of Sale (POS) and banking networks. The modem’s ease of installation through multilingual web GUIs and Point&Play application allows services providers to deploy their services quickly, in a cost-effective way.

Features of the MDM2510
  • DVB-S2 (up to 64 Msps) / DVB-S2X (up to 500 Msps) outbound
  • Supports DVB-S2X MODCODS up to 64APSK
  • Support for both MF-TDMA and MxDMA return technologies up to 20 Msps
  • OpenAMIP and GXT file support
  • Embedded TCP acceleration, compression

Network Configuration

Network Topology Rx Tx
DVB-S2X DVB-S2 MF-TDMA Mx-DMA HRC Mx-DMA MRC
Modulation QPSK, 8PSK, 16APSK,
32APSK, 64APSK
QPSK, 8PSK, 16APSK,
32APSK
4CPM QPSK, 8PSK
16APSK, 32APSK
QPSK, 8PSK
16APSK, 32APSK, 64APSK
Symbol Rates 256 ksps to 500 Msps 256 ksps to 64 Msps Up to 7.6 Msps Up to 20 Msps Up to 20Msps

Modem Interfaces

Tx Interface

Connector F-Type 75 Ohm
Frequency range  L-band 950-2400 MHz
TX level L-band -35 dBm to +3 dBm
Frequency range S-band 2750-3000 MHz
Tx level S-band 0 dBm
BUC reference 10/50 MHz
DC supply 24V, 2.5A

Rx Interface

Connector F-Type 75 Ohm
Frequency 950-2150 MHz
Rx level -65 to -25 dBm
DC supply 13/18V, 0.5A

Data Interface
LAN: Four 10/100/1000 Mbps Ethernet, auto MDI/MDIX

Management

Protocols Supported

UDP, IPv4&IPv6, ICMP, TCP, IGMPv1, IGMPv2, ARP, DHCP,
DNS, NTP, BGP, NAT, Diffserv Marking

Multilingual Web GUI

 Manage web GUI via configurable management IP address

Mechanical and Environmental

Housing

W 21 cm x D 18 cm x H 3.5 cm
(W 8.27 in x D 7.09 in x H 1.38 in)

Weight 0.9 kg (1.98 lbs)
Temperature:
                           Operating 0° to +50°C (32° to +122°F)
                           Storage -10° to +60°C (14° to +140°F)

Power Supply

Input Voltage

AC, 50Hz\220-260V and 60Hz\100-130V 24VDC (external mains adaptor)

Power Consumption <20W
